HRW Series 8.4 Offset Function
8-11
 When MODE2 is selected
With OFFSET value set at -1°C, TEMP PV and communication data express
“29°C” (circulating fluid discharge temp. value + OFFSET value) that agrees with
the temperature of the circulating fluid in your system.

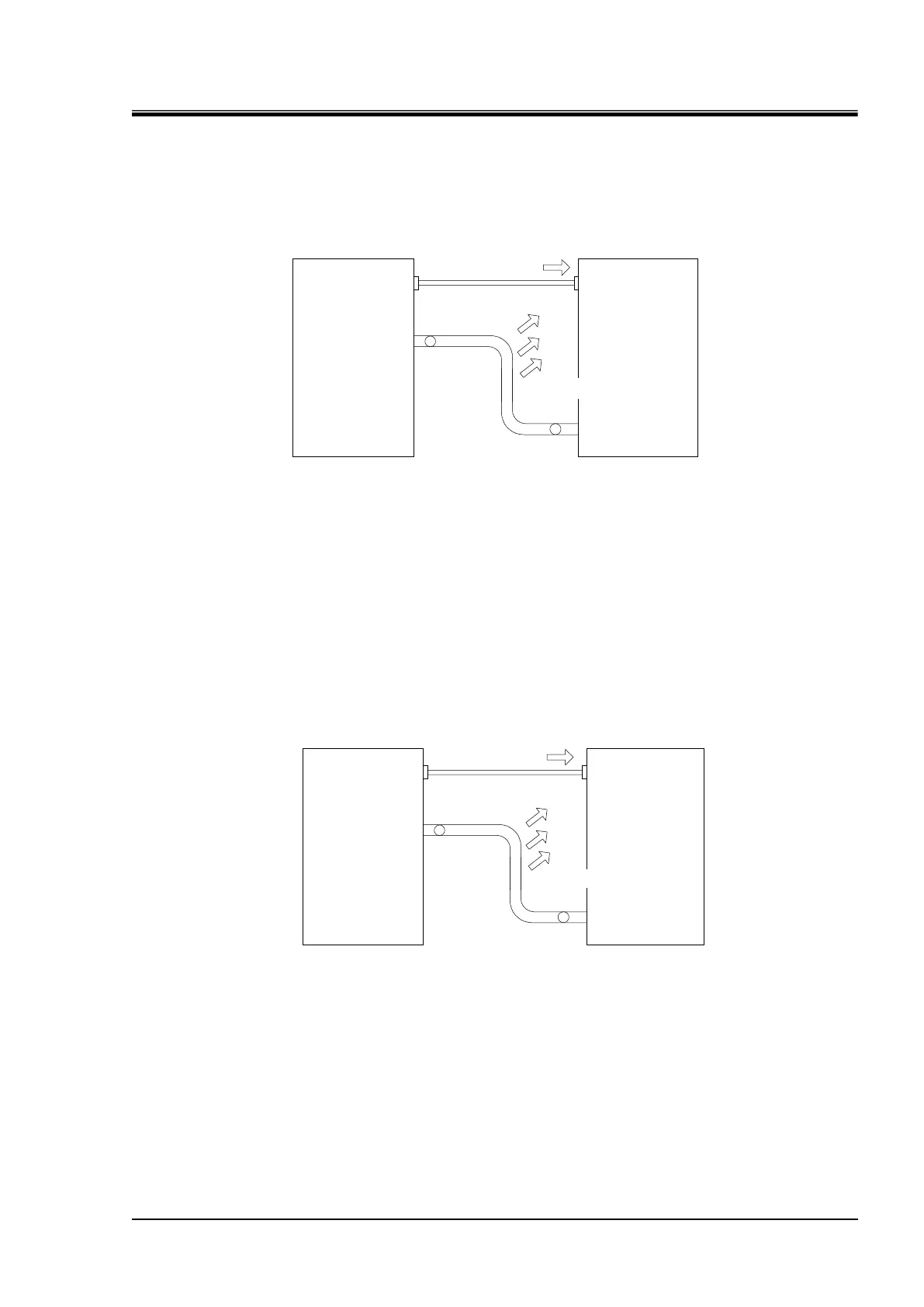

Figure 8-6 When MODE2 is selected
 When MODE3 is selected
This mode enables this system to exercise temperature control to obtain 31°C
(TEMP SP value +OFFSET value), with OFFSET value set at 1°C. Once the
discharge temperature of the circulating fluid becomes 31°C, 1°C-thermal
dissipation is assured to allow the circulating fluid in your system to be 30°C.
TEMP SP value is obtained for your system. TEMP PV and communication data
also express “30°C” (circulating fluid discharge temp. value - OFFSET value) that
agrees with the temperature of the circulating fluid in your system.
Figure 8-7 When MODE3 is selected
1°C
This system
Your system
Discharge temp.:
30°C
Circulating fluid temp. in
your system: 29°C
TEMP PV 29°C
TEMP SP 30°C
OFFSET -1°C
External communication
Communication data
TEMP PV 29°C
TEMP PV
29°C
Heat dissipation:
Heat
1°C
This system
Your system
Discharge temp:
31°C
Circulating fluid temp. in
your system: 30°C
TEMP PV 30°C
TEMP SP 30°C
OFFSET 1°C
External communication
Communication data
TEMP PV 30°C
TEMP PV
30°C
dissipation:
