SMC Networks LECP1 Series Manual

OUTJ−/OUTJ +
STOP
JOG−/ JOG+
24 V
0 V
ON
OFF
ON
OFF
ON
OFF
0 mm/s
ON
OFF
ON
OFF

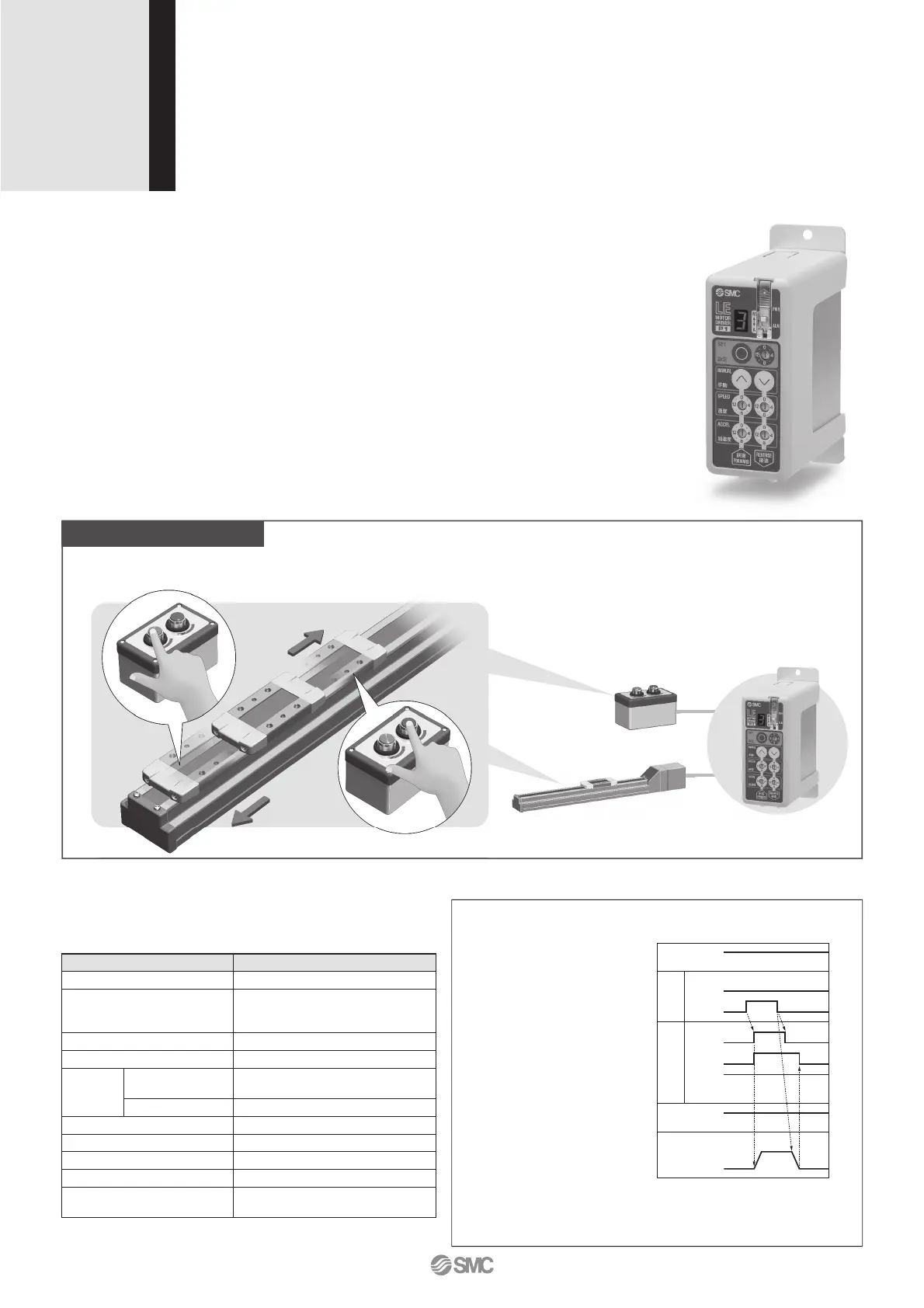

With Input Signals to Perform
Jog Operations, Step Motor controller
Jog operations that could previously only be performed using
the button on the front face can now be performed using the
ON/OFF status of the input signal.
∗ Input signals “JOG+” and “JOG–” are used as motion instructions.
Optimal for adjusting the feed value using a button operation while checking the motion of the actuator
Application Examples
(Provided by the customer)

Jog operation can be performed using
parallel input signals.
Control Timing Chart
Jog
– Procedure –
q When an alarm is not being
generated (ALARM output ON), and
the STOP input is OFF, set the JOG–
input or the JOG+ input to ON.
L
w The OUTJ– output or the OUTJ+
output goes ON, and motion starts.
The BUSY output goes ON.
L
e Set the JOG– input or the JOG+ input
to OFF.
L
r The OUTJ– output or the OUTJ+
output goes OFF, and speed
reduction starts.
L
t Motion stops, and the BUSY output
goes OFF.
∗ A JOG– input and a JOG+ input
cannot be turned ON
simultaneously.
– Timing Chart –
∗ “
∗
ALARM” is expressed as a negative-logic
circuit.
Specifi cations
Specifications not listed are the same
as those of the standard product.
For details, refer to the Web Catalogue.
Power supply
Actuator’s lock
BUSY
*ALARM
Speed
Input
signal
Output
signal
Model
LECP1--XB182
Compatible motor
Step motor (Servo/24 VDC)
Power supply
Power voltage: 24 VDC ±10 %
∗
1
[Including motor drive power, control
power, stop, lock release]
Parallel input
6 inputs (Photo-coupler isolation)
Parallel output
6 outputs (Photo-coupler isolation)
Function
Number of
positioning points
2 points
Jog input
Ye s
Operating temperature range [°C]
0 to 40 (No freezing)
Operating humidity range [%RH]
90 or less (No condensation)
Storage temperature range [°C]
-10 to 60 (No freezing)
Storage humidity range [%RH]
90 or less (No condensation)
Weight [g]
130 (Screw mounting),
150 (DIN rail mounting)
∗
1 The power consumption changes depending on the actuator model.
Refer to the actuator specifi cations for more details.
LECP1-XB182
8
