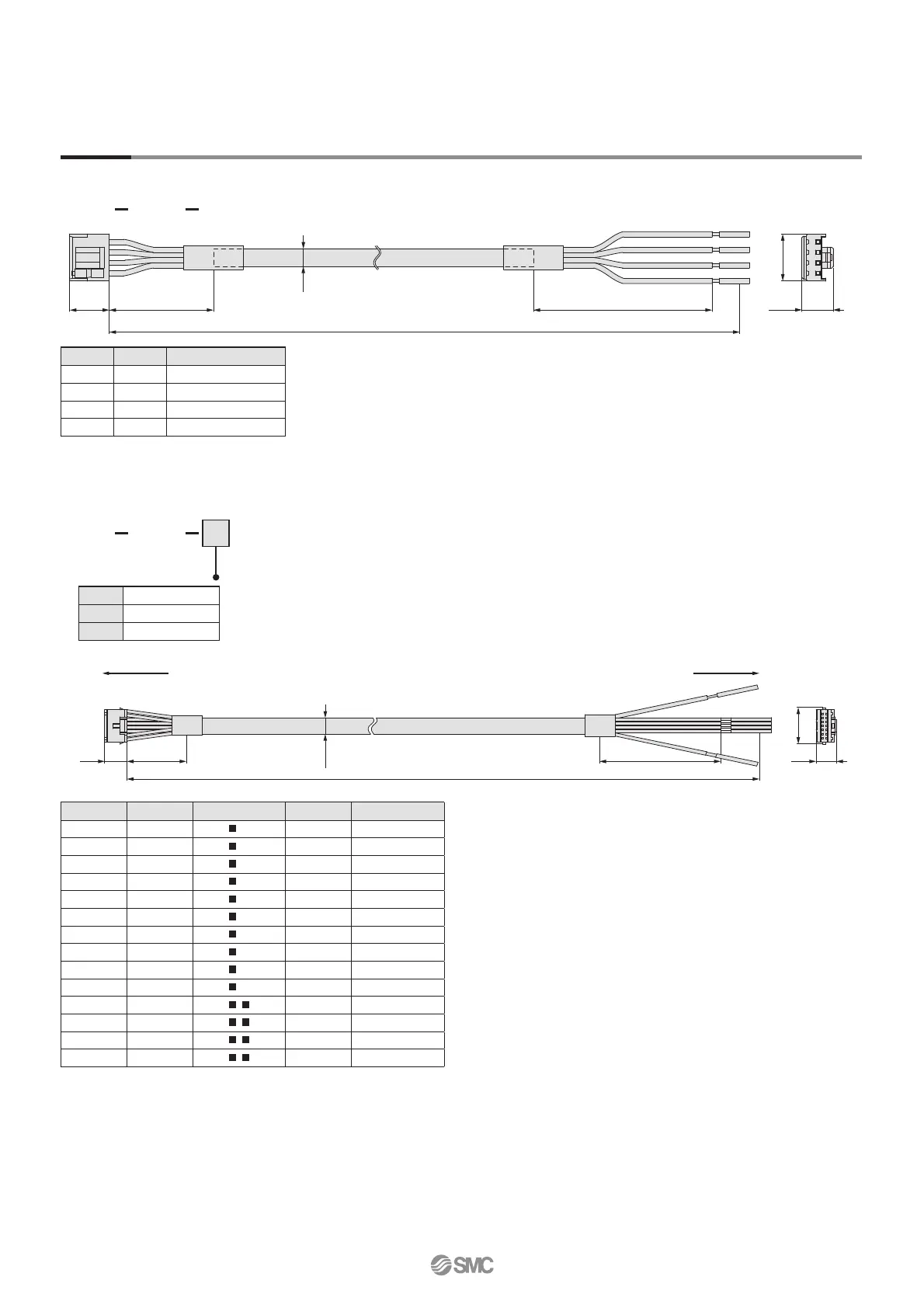

LECP1 Series
(10.5)
(15.8)
(13.3) (35) (60)
(1500)
(Ø 6)
(10)(11) (30) (60)
(16)
(L)
Controller side PLC side
(Ø 7.9)
Options
Parallel I/O signal is valid in auto mode. While the test function operates at manual mode, only the output is valid.
Conductor size: AWG20
Conductor size: AWG26
LEC CK4
[I/O cable]
LEC CK1 1
[Power supply cable]
Cable length (L) [m]
1
1.5
3
3
5
5
Terminal name
Covered colour
Function
0V Blue Common supply ()
M 24V White
Motor power supply (+)
C 24V Brown
Control power supply (+)
BK RLS Black Lock release (+)
Terminal no.
Insulation colour
Dot mark Dot colour Function
1 Light brown Black COM+
2 Light brown Red COM
3 Yellow Black OUT0
4 Yellow Red OUT1
5 Light green Black OUT2
6 Light green Red OUT3
7 Grey Black BUSY
8 Grey Red ALARM
9 White Black IN0
10 White Red IN1
11 Light brown Black IN2
12 Light brown Red IN3
13 Yellow Black RESET
14 Yellow Red STOP
7
