SMC Networks LEF Series Maintenance Manual

- 10 -

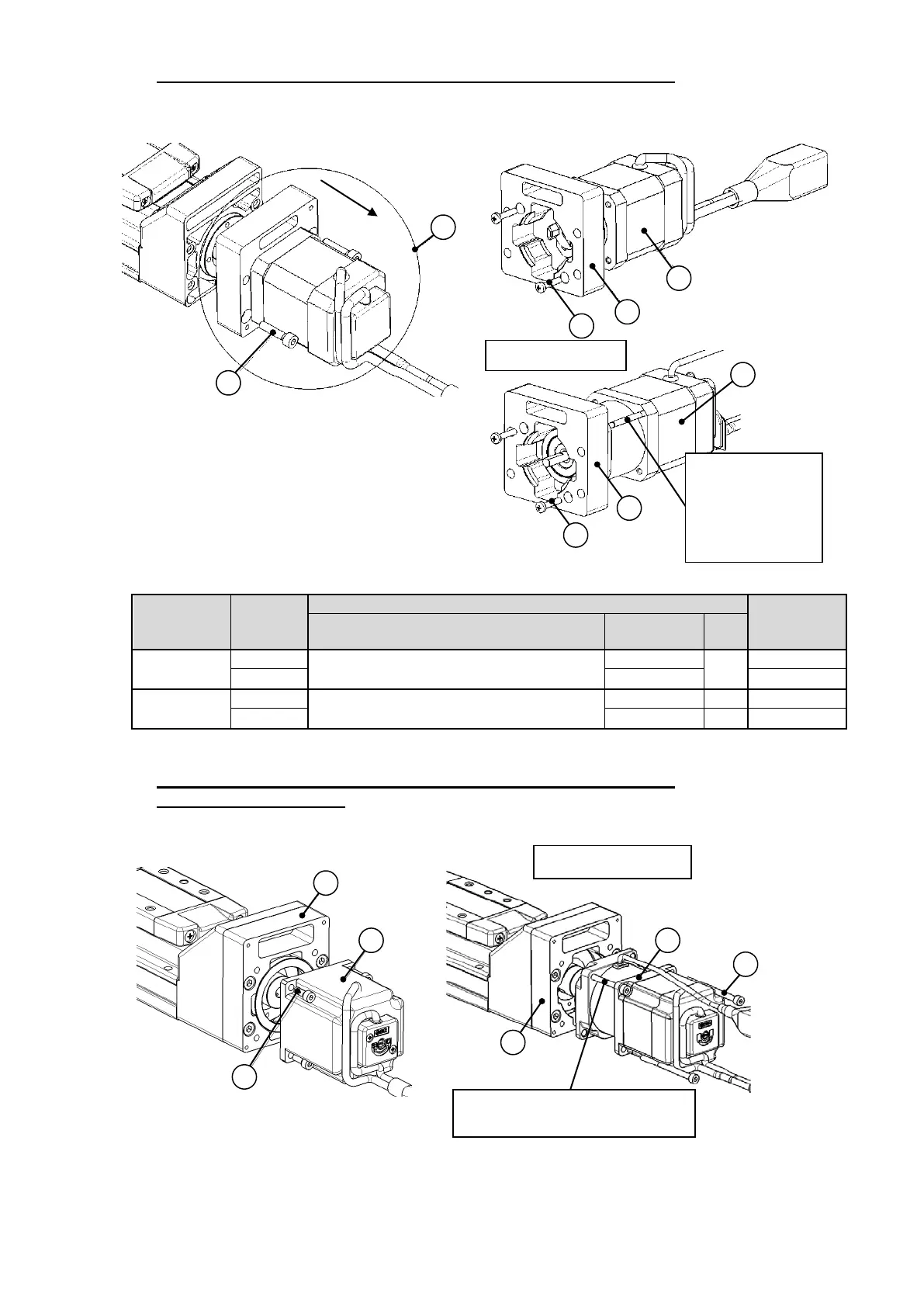

6-2-1. Inline motor mouning type
LEFS16/25 Step motor (Servo/ 24VDC) and servo motor (24VDC)
Remove the screw (9) and motor assembly(10). Remove the screw(11) and
motor(13) from the motor mount(12).
Part to be
tightened
Model
Screw
Tightening
torque +/-
10% [Nm]
Type Size Qty.
(13)Motor
LEFS16
(11) Cross recessed round head screw
M2.5x12
2
0.36
LEFS25
M3x14
0.63
(10) Motor
assembly
LEFS16
(9) Hexagon socket head cap screw
M3x20
3
0.63
LEFS25
M4x25
2
1.5
LEFS32/40 Step motor (Servo /24VDC) and servo motor (24VDC)
LEFS25/32/40 AC servo
Remove the screws (9) and then, remove the motor (13) from the motor mount (12).
13
11
Motor with lock.
9
∗ Do not loosen
the screw
connecting the
motor and the
lock.
12
11
Table.6-3 Motor assembly fixing screws
Motor with lock.
9
13
12
12
∗ Do not loosen the screw
connecting the motor and the lock.
10
12
13
13
9
