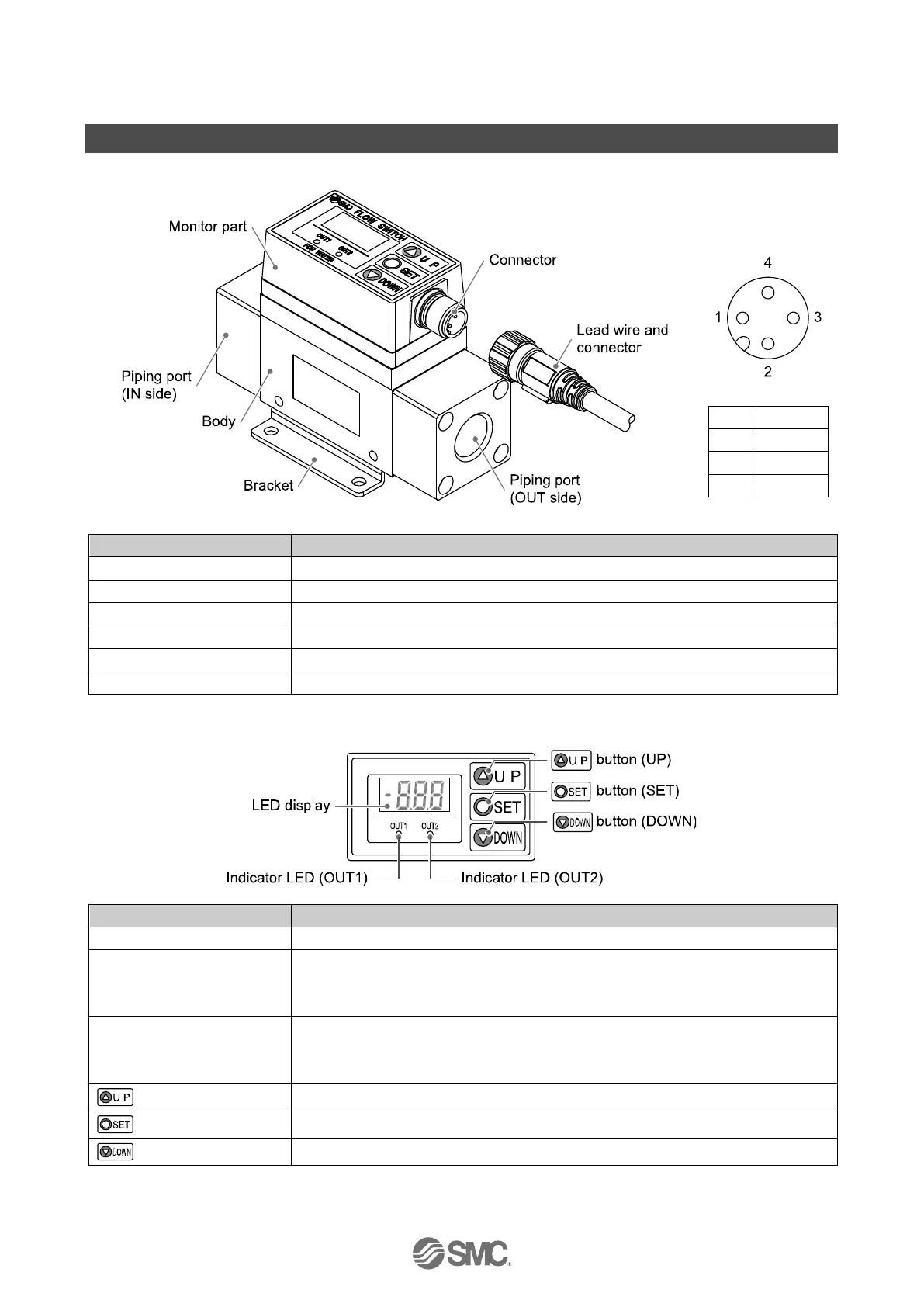

Summary of Product parts
Body
Connector pin
numbers
(On the product)
1
DC(+)
2
OUT2
3
DC(-)
4
OUT1
Item
Description
Monitor part
See below.
Piping port
Connected to the fluid inlet at IN side and to the fluid outlet at OUT side.
Body
The body of the product.
Bracket
Bracket for mounting the product.
Connector
Connector for electrical connections.
Lead wire and connector
Lead wire to supply power and transmit output signals.
Monitor part
Item
Description
LED display
Displays the flow value, setting mode, and error indication.
Indicator LED (OUT1)
Indicates the output status of OUT1. LED is ON (Green) when OUT1 is ON.
The LED flashes when an over current error occurs.
When the accumulated pulse output mode is selected, the indicator LED will turn OFF.
Indicator LED (OUT2)
Indicates the output status of OUT2. LED is ON (Red) when OUT2 is ON.
The LED flashes when an over current error occurs.
When the accumulated pulse output mode is selected, the indicator LED will turn OFF.
button (
UP)
Selects the mode or increases the ON/OFF Set value.
button (SET
)
Press this button to change to another mode and to set a value.
button (
DOWN)
Selects the mode or decreases the ON/OFF Set value.
