SMC Networks PF2W7 Series User Manual

-26-
No.PF※※-OMO0012-D

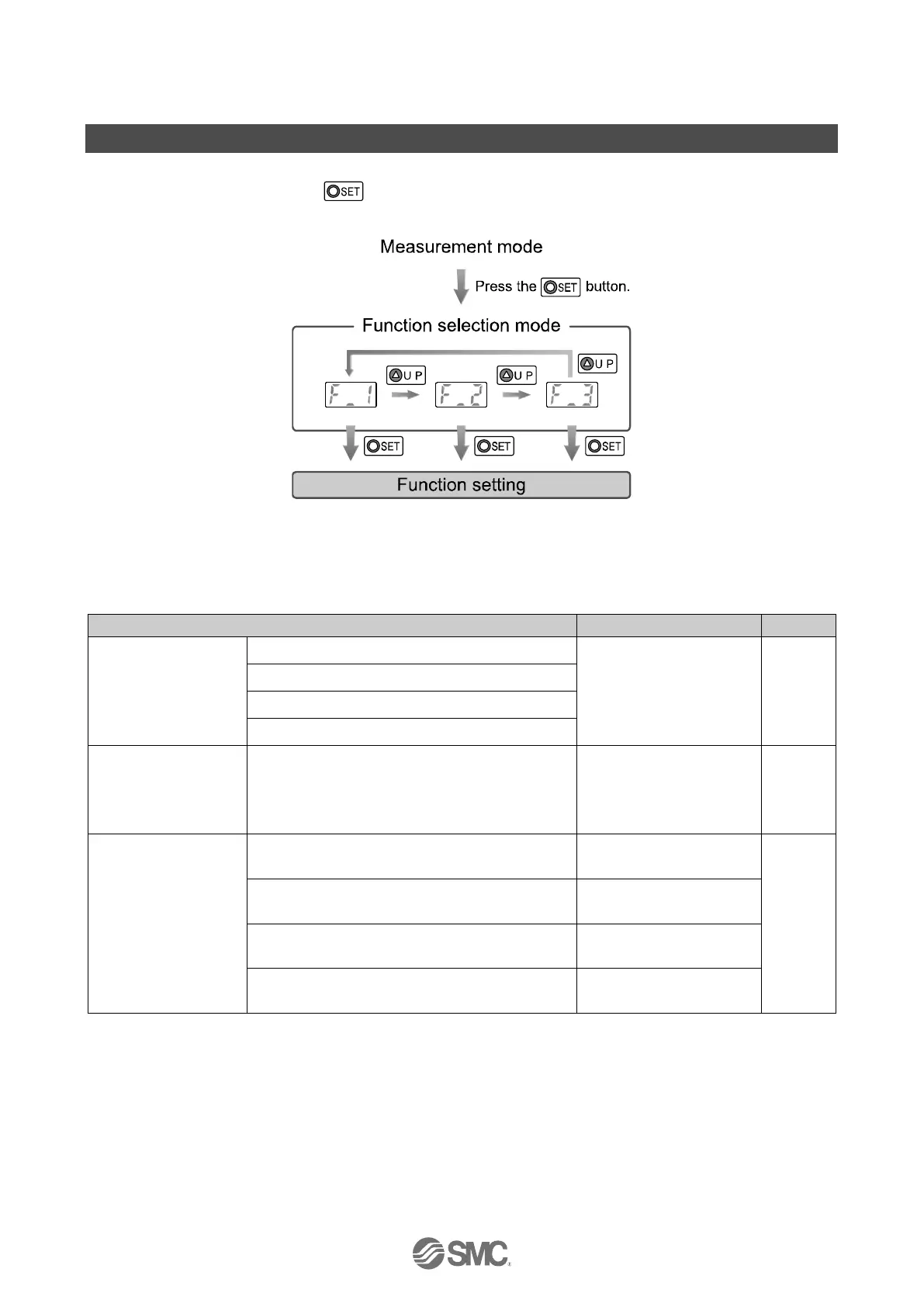

Function selection mode
Function selection mode
In measurement mode, press the button, to display [F_].
This [F_] indicates the mode for changing each functional setting.
: When OUT1 or OUT2 is assigned to be instantaneous output mode during initialize mode, [F_1] and [F_2] are displayed.
When OUT1 or OUT2 is assigned to be accumulated output mode, [F_3] is displayed.
●Default settings
Item
Default Setting
Page
[F_1]
Input the Set value of
instantaneous output
[n_1]

Input of the Set point 1 (OUT1)
50% of max. rated flow
[2.00] L/min (PF2W704)
[ 8.0] L/min (PF2W704)
[20.0] L/min (PF2W704)
[ 50] L/min (PF2W704)
Page 27
[n_2]

Input of the Set point 2 (OUT1)
[n_3]

Input of the Set point 3 (OUT2)
[n_4]

Input of the Set point 4 (OUT2)
[F_2]
Input the Set value of
instantaneous output
(Auto-preset)
-
-
Page 28
[F_3]
Input the Set value of
accumulated output
[1nL]

Input of the Set value for the lower 3 digits
(OUT1)
[ 0]
Page 29
[1nH]

Input of the Set value for the upper 3 digits
(OUT1)
[ 0]
[2nL]

Input of the Set value for the lower 3 digits
(OUT2)
[ 0]
[2nH]

Input of the Set value for the upper 3 digits
(OUT2)
[ 0]
: When Non-Reverse output is selected as the switching operation, n becomes P.
