■Piping
Use the product within the specified operating pressure range and temperature range.
Proof pressure is 1.5 MPa.
Connect the piping to the fittings.
Mount the product so that the fluid direction is the same as the arrow indicated on the product.
Never mount the product upside down.
The piping on the IN side must have a straight section of piping whose length is 8 times the piping
diameter or more.
Avoid piping in which the piping size on the IN side of the product changes suddenly.

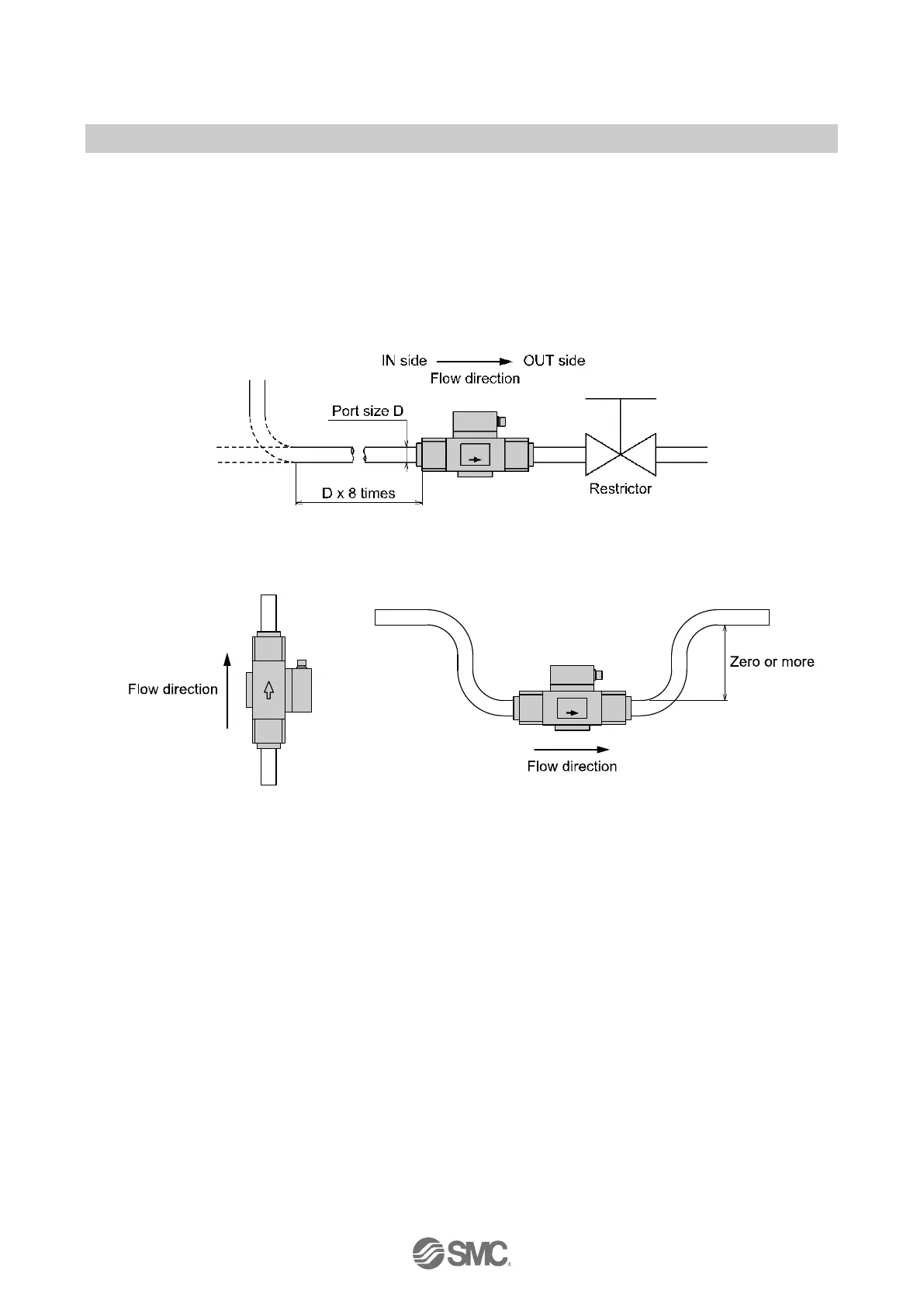

Bubbles may be generated depending on the piping design. Refer to an example of recommended piping
system.
(If the fluid detection path is always filled with liquid, there will be no problem.)
