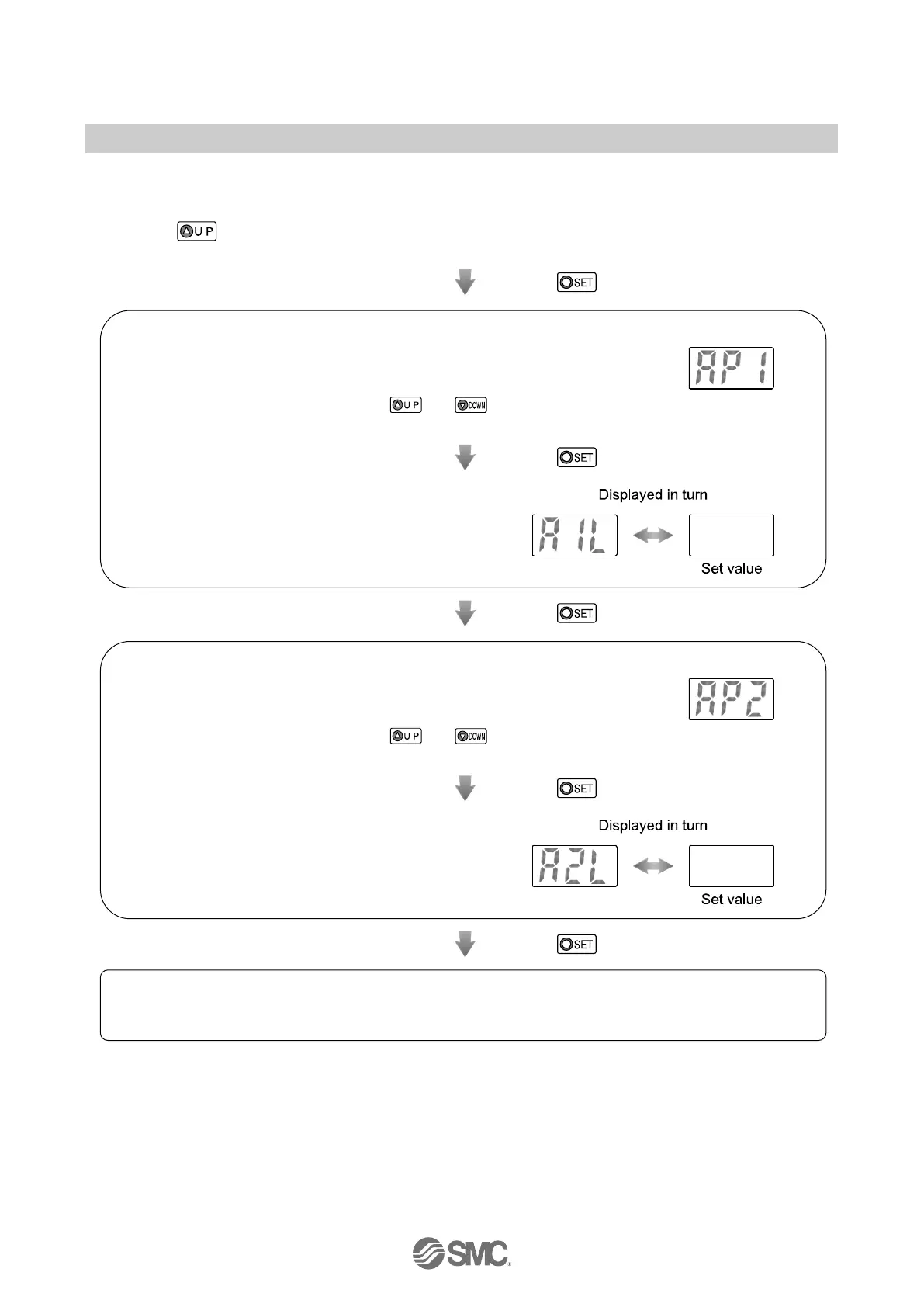

■[F_2] Input procedure of the Set value of instantaneous output (Auto-preset)
The Set point of the switch output can be automatically set referring to actual air flow.
<Operation>
Press the button in function selection mode to display [F_2]. (When OUT1 or OUT2 is assigned to be
accumulated output mode, [F_2] is displayed.)
Press the button.
Measurement of the Set value (OUT1)
[AP1] is displayed.
Apply flow rate to set for OUT1.
: If setting of OUT1 is not necessary, press the and buttons simultaneously.
The display moves on to the measurement of OUT2 Set value.
Press the button.
[A1L] and the Set value are displayed in turn.
The flow rate is read automatically,
and the Set value is set.
A value 3 digits below is set as hysteresis.
Press the button.
Measurement of the Set value (OUT2)
[AP2] is displayed.
Apply flow rate to set for OUT2.
: If setting of OUT2 is not necessary, press the and buttons simultaneously.
Return to the measurement mode.
Press the button.
[A2L] and the Set value are displayed in turn.
The flow rate is read automatically,
and the Set value is set.
A value 3 digits below is set as hysteresis.
Press the button.
[F_2] Input procedure of the Set value of instantaneous output (Auto-preset) is completed.
Return to measurement mode.
