SMC Networks PF2W7 Series

-27-
No.PF※※-OMO0012-D

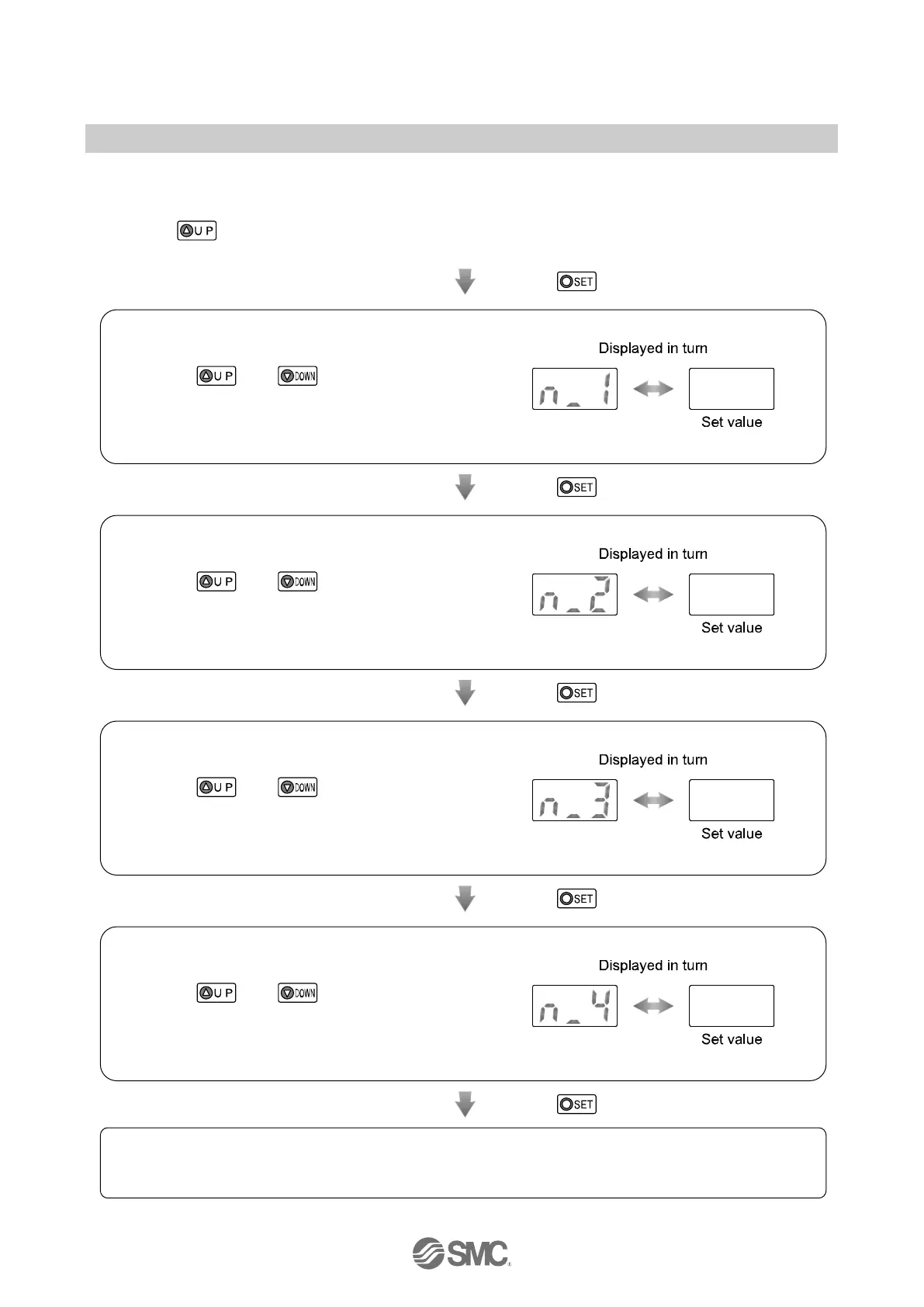

■[F_1] Input procedure of the Set value of instantaneous output
The Set point of the switch output can be set manually.
<Operation>
Press the button in function selection mode to display [F_1]. (When OUT1 or OUT2 is assigned to be
accumulated output mode, [F_3] is displayed.)
Press the button.
Input of the Set point 1 (OUT1)
[n_1]

and the current Set value are displayed in turn.
Press the and button to change the value
referring to the list of outputs (page 21).
: When Non-Reverse output is selected as the switch operation, [P_1]
is displayed.
Press the button.
Input of the Set point 2 (OUT1)
[n_2]

and the current Set value are displayed in turn.
Press the and button to change the value
referring to the list of outputs (page 21).
: When Non-Reverse output is selected as the switch operation, [P_2]
is displayed.
Press the button.
Input of the Set point 3 (OUT2)
[n_3]

and the current Set value are displayed in turn.
Press the and button to change the value
referring to the list of outputs (page 21).
: When Non-Reverse output is selected as the switch operation, [P_3]
is displayed.
Press the button.
Input of the Set point 4 (OUT2)
[n_4]

and the current Set value are displayed in turn.
Press the and button to change the value
referring to the list of outputs (page 21).
: When Non-Reverse output is selected as the switch operation, [P_4]
is displayed.
Press the button.
[F_1] Input procedure of the Set value of instantaneous output is completed.
Return to measurement mode.
