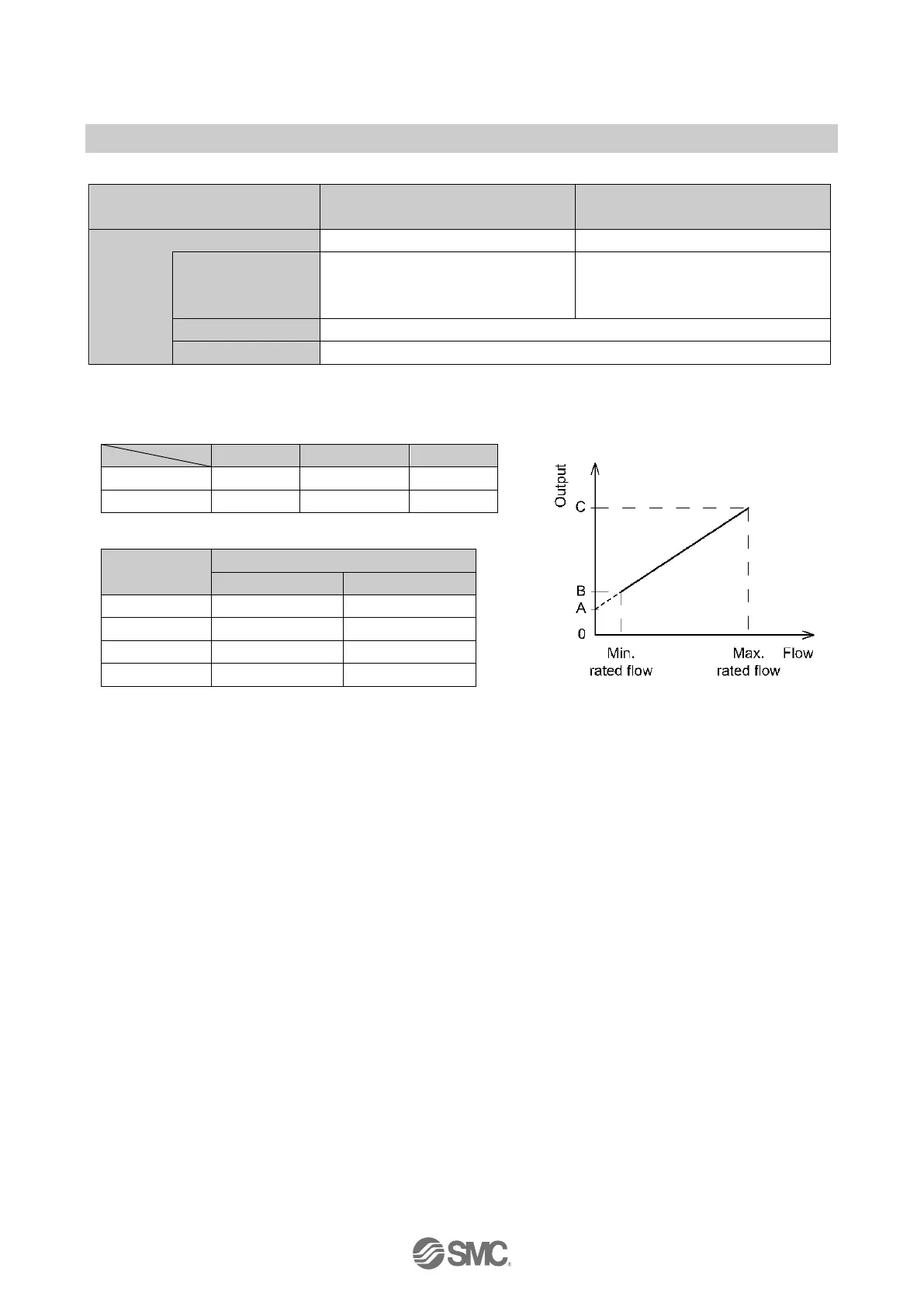

SMC Networks PF2W7 Series User Manual

-46-
No.PF※※-OMO0012-D
●Specifications
Model
PF2W7--28--X560
PF2W7--68--X560
PF2W7--29--X560
PF2W7--69--X560
Analogue
output
Voltage output (1 to 5 V)
Current output (4 to 20 mA)
Impedance
Output impedance
approx. 1 kΩ
Load impedance
Power supply voltage 12 V: 300 Ω
Power supply voltage 24 V: 600 Ω
Accuracy
±5%F.S. max.
Response time
1 s or less
: Other specifications are equal to standard product.
●Analogue output
A
B
C
Voltage output
1 V
1.5 V (1.4 V)
5 V
Current output
4 mA
6 mA (5.6 mA)
20 mA
: The value in ( ) is when PF2W711 is used.
Model
Rated flow range
Min.
Max.
PF2W704(T)
0.5 L/min
4 L/min
PF2W720(T)
2 L/min
16 L/min
PF2W740(T)
5 L/min
40 L/min
PF2W711
10 L/min
100 L/min
