SMC Networks PSE300 User Manual

-15-
No.PS※※-OMG0002-F

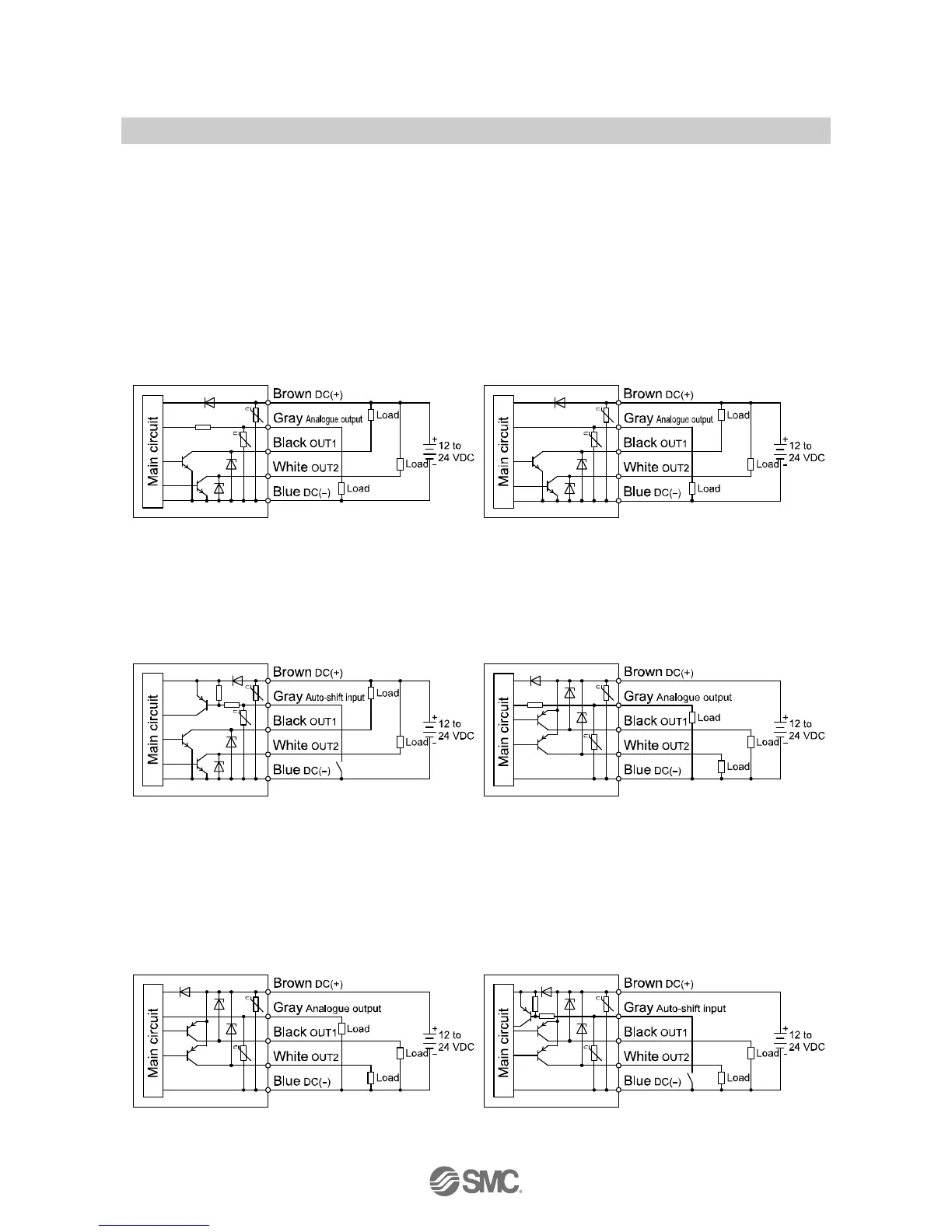

○Output specification
●When the cable with SMC power and output cable (Model: ZS-28-A) is used, the colors of wire (Brown,
Black, White, Gray, Blue) will apply as shown on circuit diagram.
PSE3
 0(T)
NPN open collector output: 2 outputs
Max. 30 V, 80 mA
Residual voltage 1 V or less
Analogue output: 1 to 5 V
Output impedance: Approx. 1 kΩ
PSE3
 1(T)
NPN open collector output: 2 outputs
Max. 30 V, 80 mA
Residual voltage 1 V or less
Analogue output: 4 to 20 mA
Max. load impedance: 300 Ω (12 VDC)
600 Ω (24 VDC)
Min. load impedance: 50 Ω
PSE3  2(T)
Auto shift input
Voltage free contact
NPN open collector output: 2 outputs
Max. 30 V, 80 mA
Residual voltage 1 V or less
PSE3
 3(T)
PNP open collector output: 2 outputs
Max. 80 mA
Residual voltage 1 V or less
Analogue output: 1 to 5 V
Output impedance: Approx. 1 kΩ
PSE3  4(T)
PNP open collector output: 2 outputs
Max. 80 mA
Residual voltage 1 V or less
Analogue output: 4 to 20 mA
Max. load impedance: 300 Ω (12 VDC)
600 Ω (24 VDC)
Min. load impedance: 50 Ω
PSE3
 5(T)
Auto shift input
Voltage free contact
PNP open collector output: 2 outputs
Max. 80 mA
Residual voltage 1 V or less
