Troubleshooting
○Troubleshooting
Applicable pressure switch: PSE300
If a cause applicable to the failure cannot be identified and normal operation can be recovered by
replacement with a new Pressure switch, this indicates that the Pressure switch itself was broken. The
Pressure switch breakage can be caused by operating environment (network construction, etc.), and so
consult with SMC separately to obtain countermeasures.
Yes
No

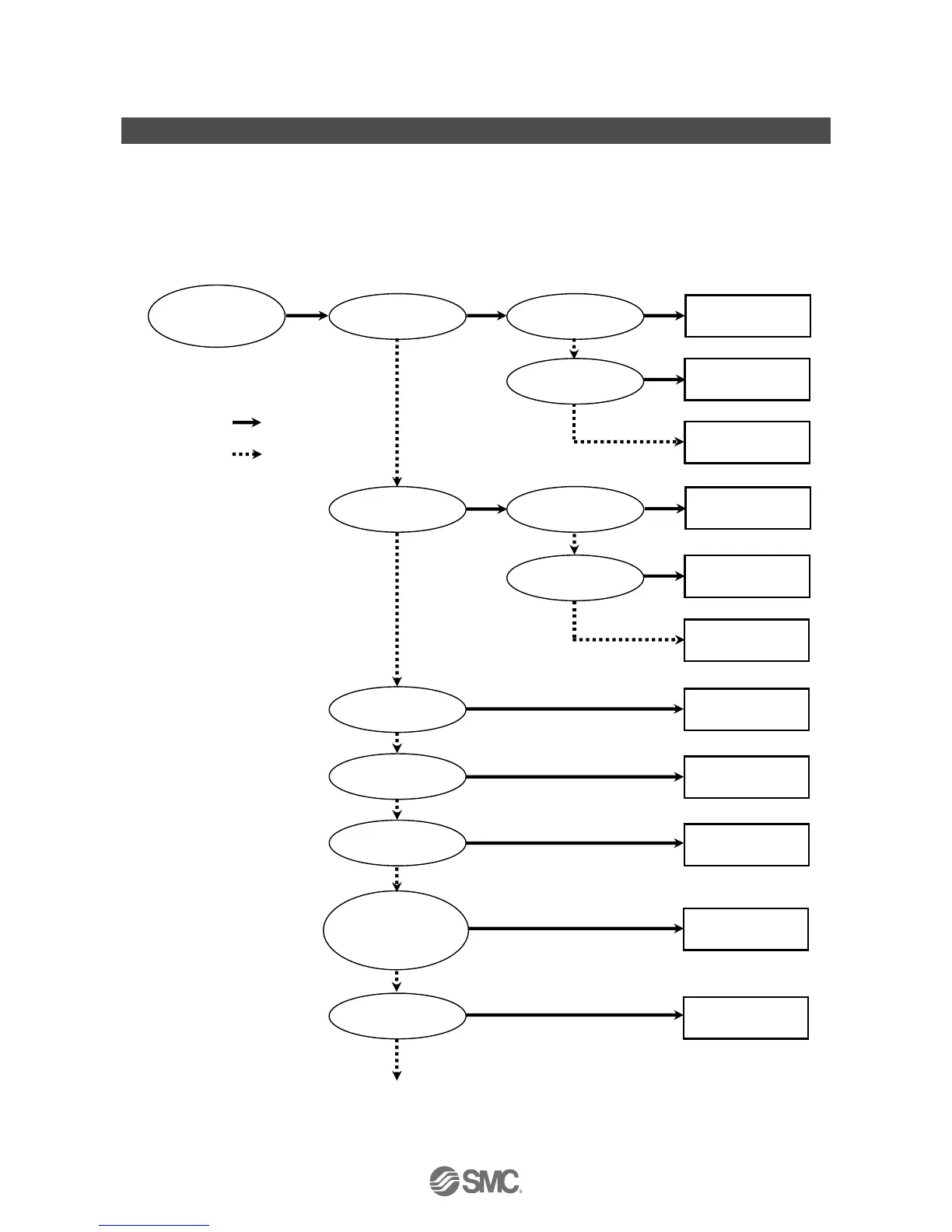

The Pressure switch
does not operate
normally
Refer to reference
No.1
The switch output is
on
The indication light
is on
The indication light
works improperly
The switch output is
off
The switch output
generates chattering
The indication light
is off
The indication light
is off
The indication light
is on
The product is
broken
Refer to reference
No.2
Refer to reference
No.1
Refer to reference
No.4
Refer to reference
No.3
The product is
broken
The product is
broken
Analogue output is not
provided (Specified
accuracy is not
satisfied)
Refer to reference
No.6
Slow switch output
response
Refer to reference
No.5
An error signal
comes on
Refer to reference
No.7
