-30-
No.PS※※-OMG0002-F

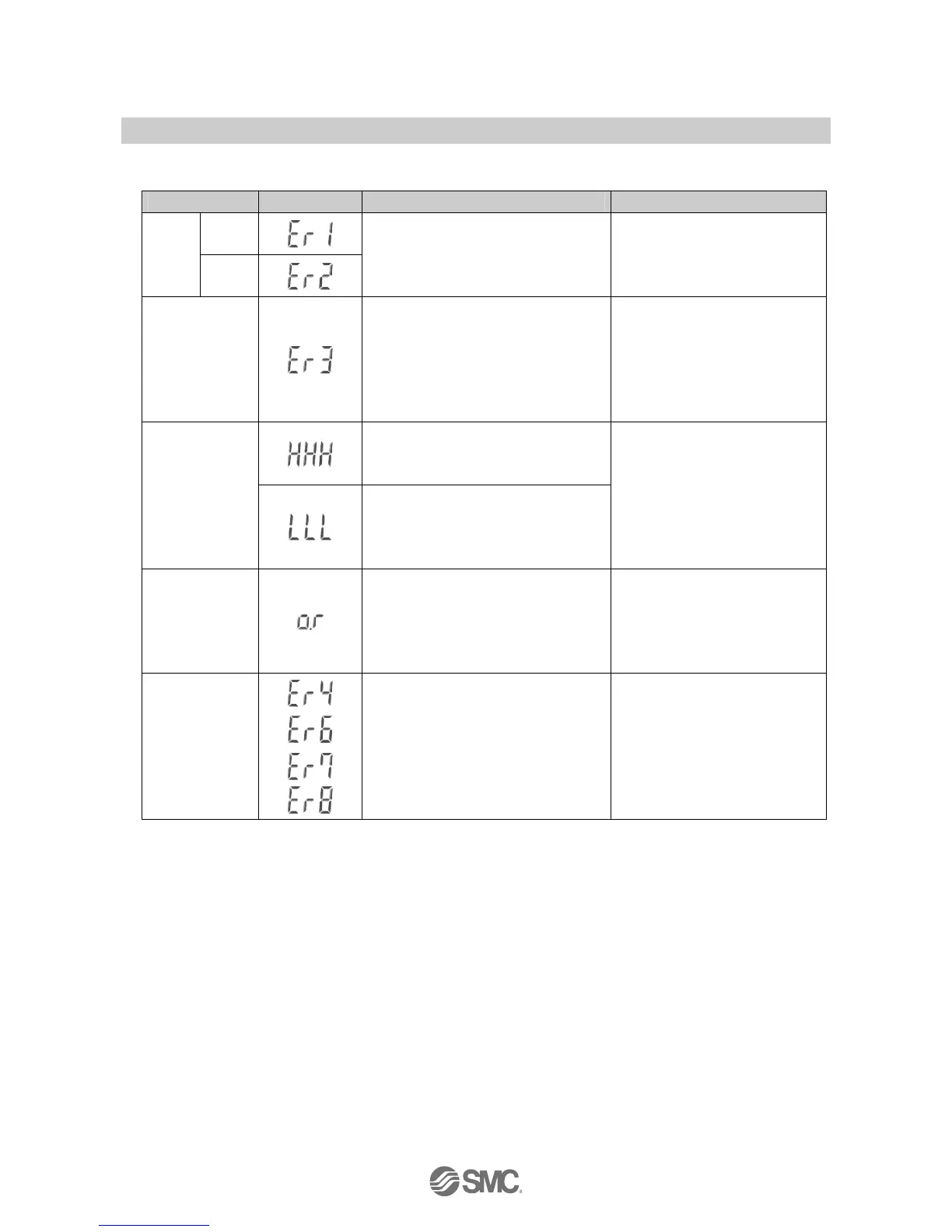

○Error indication function
This function displays error location and nature when a problem or an error occurs.
Error Name Error Display Error Type Troubleshooting
OUT1
Over
current
Error
OUT2
A load current of switch output is 80 mA
or more.
Turn the power off and remove the
output factor for the over current.
Then turn the power on.
Residual
pressure Error
During zero clear operation, pressure
over ±7%F.S. is applied. After 3 s, the
mode will reset to the measurement
mode. ±4 digits of the zero clear range
varies with individual product
differences.
Perform zero clear operation again
after restoring the applied pressure
to an atmospheric pressure
condition.
Pressure over max. limit of set pressure
range is applied or it is over the display
range.
Applied pressure
Error
The sensor may not be connected or
connected incorrectly. Pressure over
min. limit of set pressure range is
applied or it is over the display range.
Check proper connection of the
sensor and make sure the applied
pressure to the value is within the
set pressure range. Set back an
applied pressure into within set
pressure range.
While using the auto shift, even if it
exceeds the display continuously.
Auto shift Error
The measured pressure at auto-shift
input exceeds the set pressure range.
: After 1 s, measurement mode returns
automatically.
Auto shift input is invalid by
connected equipment and
machine.
Check the connected equipment
and machine.
System Error
Displayed in the case of an internal data
error.
Turn the power off and turn it on
again.
If resetting fails, an investigation by
SMC Corporation will be required.
If the error can not be reset after the above measures are taken, then please contact SMC.
