3.3. POWER OUTPUTS
The equipment has three output and phase channels. In each one of them can be selected the desired
output level as well as the phase angle.
This section is situated in the central section of the unit, and is clearly identified. All the controls,
indicators, etc. contained in this part of the unit will be explained.

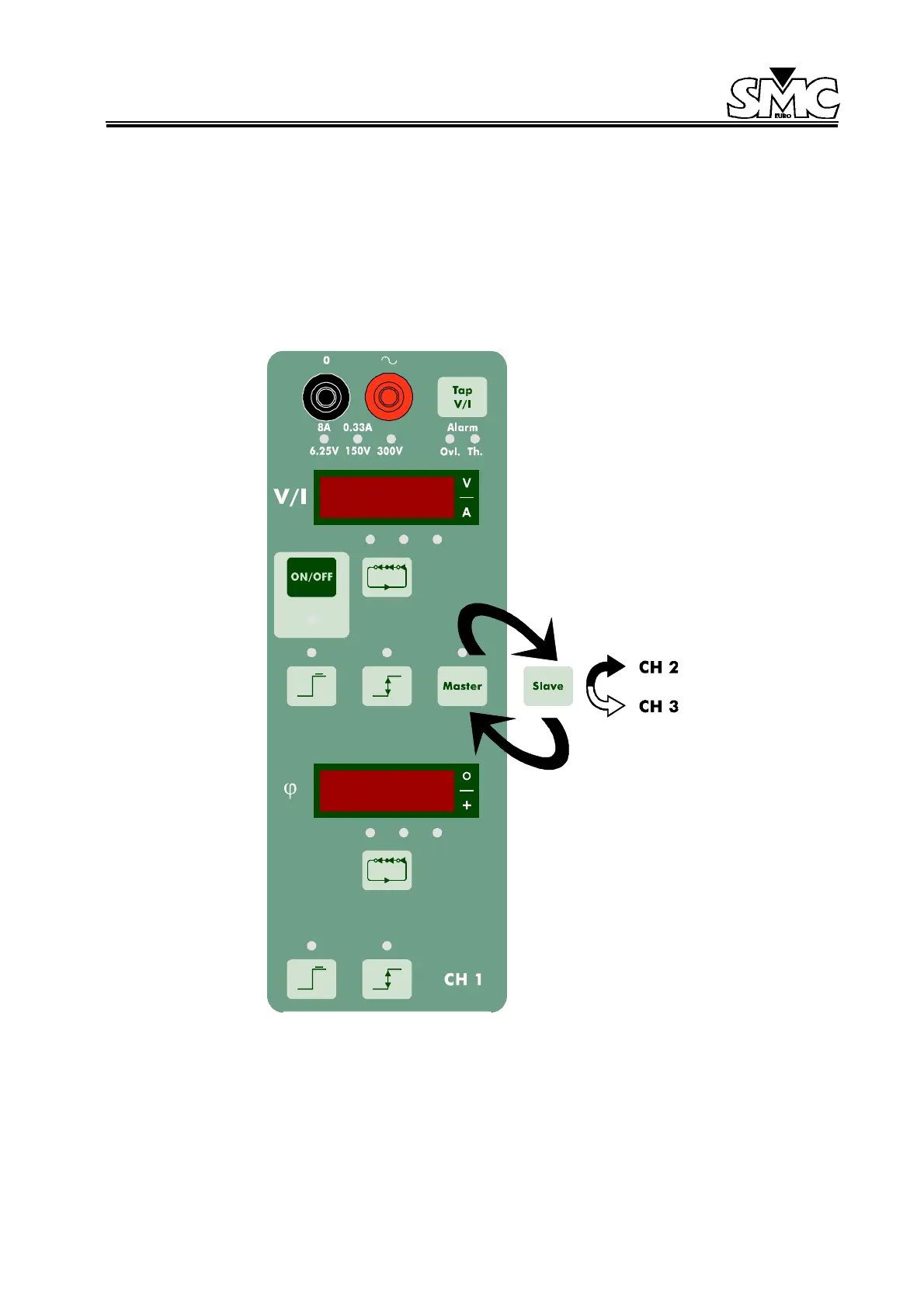

Figure 7: Power Output
