SMC Networks PTE-300-V User Manual

PTE-300-V
Sheet 24
c) 2
nd
value selection

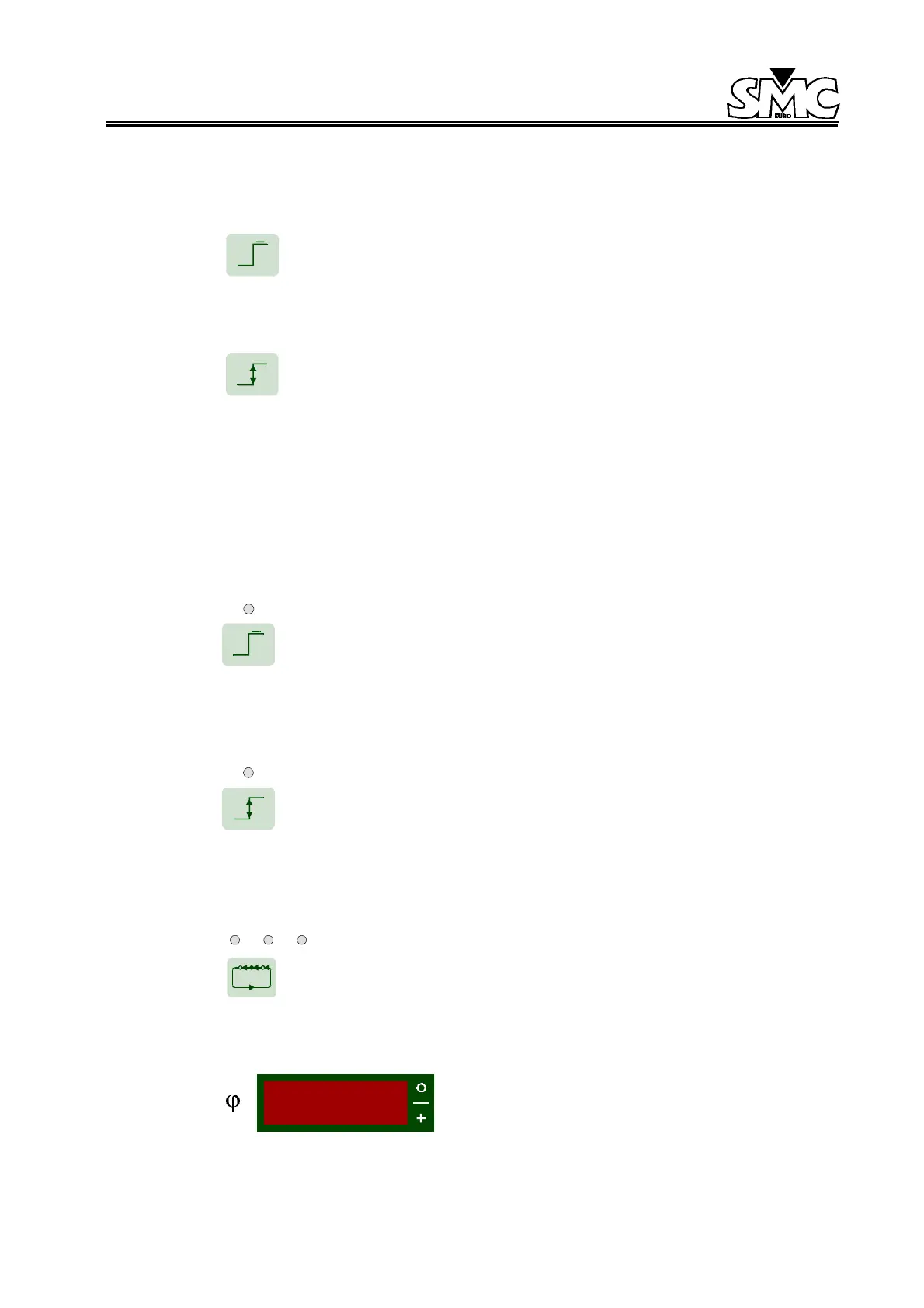

When this key is pressed it allows the selection of a 2
nd
angle and it is shown
in the display. This selection does not cancel the angle already selected in
the output at the moment. To distinguish the actual value from the 2
nd
angle
selected, the LED over the key lit when the 2
nd
angle is displayed.
d) Activating 2
nd
value
This key works in a sequential way. When pressed the phase angle in the
output changes to the 2
nd
value, when it is pressed again it will return to the
1
st
value.
When this key and the similar key in the phase section are pressed at the same time for
more than 2 seconds this function if both sections becomes synchronized. To cancel you
must repeat this process.
3.3.2.2. OPTICAL INDICATORS AND DISPLAYS
a) LED indicator for 2
nd
value selection
This is a 3 mm, red LED that is situated over the corresponding key. When this
LED is lit, it indicates that it is in the 2
nd
Value Selection mode and that this value
is shown in the display.
b) LED indicator when 2
nd
value is activated
This is a 3 mm, red LED that is situated over its corresponding press key. It has
two states:
• Not lit: indicates that the phase angle in the output is the first value.
• Lit: indicates that the value has changed to the second phase angle.
c) Digit selection indicator
These three, 3 mm LEDs (red), indicate the digit selection for regulation.
Only one will be lit and it indicates the digit above it to be regulated.
d) Phase selection displays
The display is made up of 4 digits of 7 segments, red in
color and 0.3 inches in height, which shows the
selected values.
