3.4. GENERAL CONTROL SECTIONS
This part of the equipment refers to the general control. The unit
contains several necessary controls to perform the following functions:
• Using RS-232.
• SYNCHRONIZE selection.
• EVENT Output.
• Monitor signals.
• BUS-PTE interconnection.

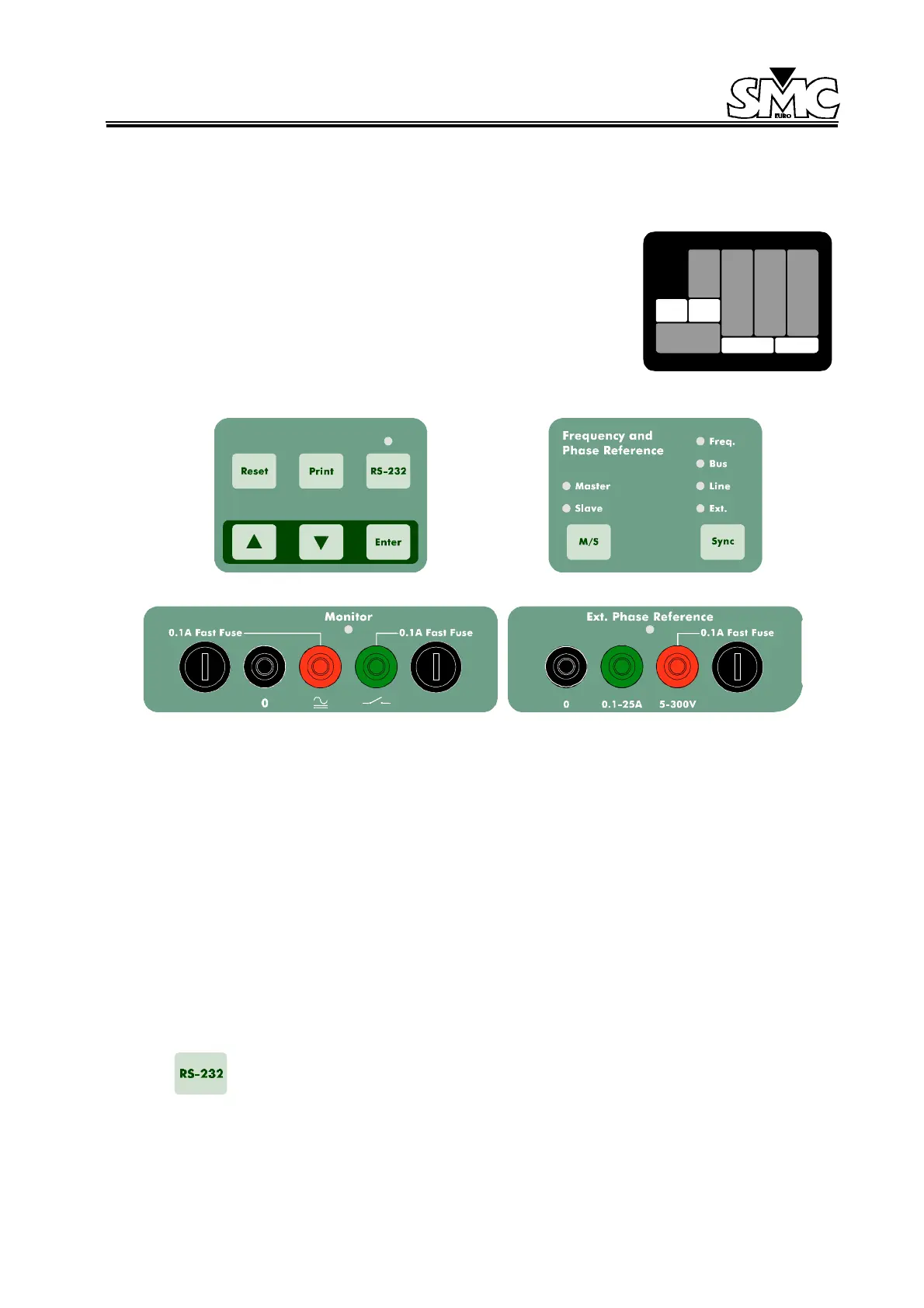

Figure 10: General Control Sections
3.4.1. CONTROL KEYS
3.4.1.1. Reset
Pressing this key a reset in the unit is made, selecting a three-phase voltage system
synchronized to the frequency generated by the IFG (50 or 60 Hz).
3.4.1.2. Print
Pressing this key, if there is a serial input printer connected to the unit, the actual values on the
displays will be printed.
3.4.1.3. RS-232 serial port control
This press key controls the RS-232 COM port activation to communicate the unit to a
PC. The LED above this key indicates this.
