2. OPERATIONAL PRINCIPLES
2.1. GENERAL
In this section a general overview of the operational basic principles on which the PTE-300-V is based,
are given in this section. An understanding of these principles should help in order to find new
applications, maintenance, etc.
Briefly, the unit has a user interface (Front Panel), that is communicated with the Power Amplifier
through the microprocessors incorporated. Of course, a power supply, security devices, transformers,
etc. need to be used as well. According with these, the unit can be divided in the following modules:
1. Front Panel Controls.
2. Intelligent Generator Modules (IGM).
3. Power Supply.
PTE-300-V

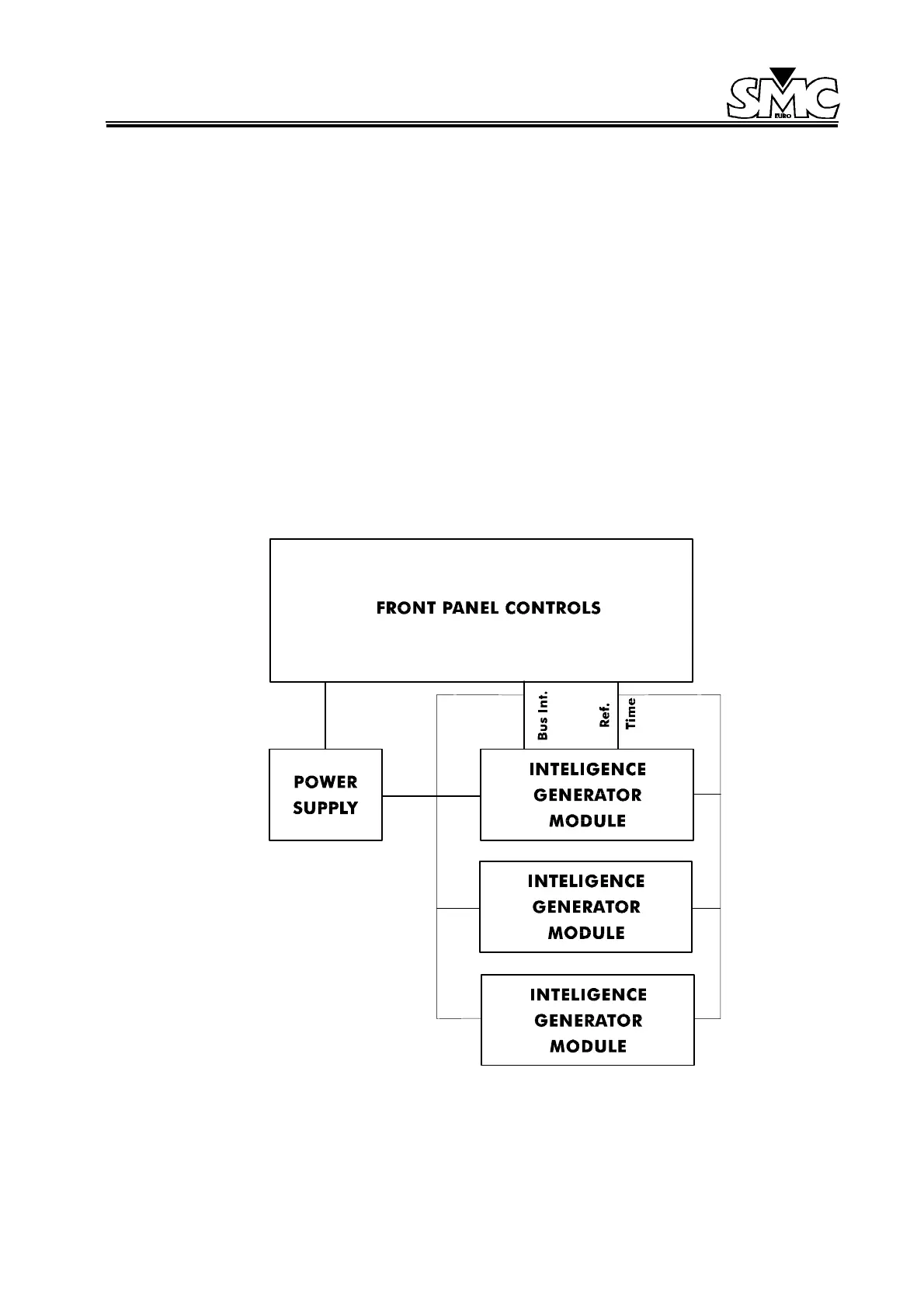

Figure 2: Functional Modules
