• Differential relays.
• Single phase distance relays.
• Three-phase distance relays (open delta).
• Directional power relays (single and three-phase).
• Maximum and minimum voltage relays.
• Dynamic test: fault simulation.
b) COMBINED WITH A SINGLE PHASE CURRENT INJECTOR
• Three-phase distance relays.
• Full three-phase network fault simulation.
• In general all types of relays which require 3 voltages and 3 currents to function correctly.
c) MISCELLANEOUS
Due to its good characteristics of accuracy and stability, the PTE-300-V can test transducers,
energy meters and measuring instruments can be tested as well, in the following range:
• Voltage in three-phase or single phase (up to 300 V).
• Three phase current up to 8 A (or 24 A single phase).
• Frequency between 40 and 300 Hz.
• Three-phase angle from 0º to 359.9º.

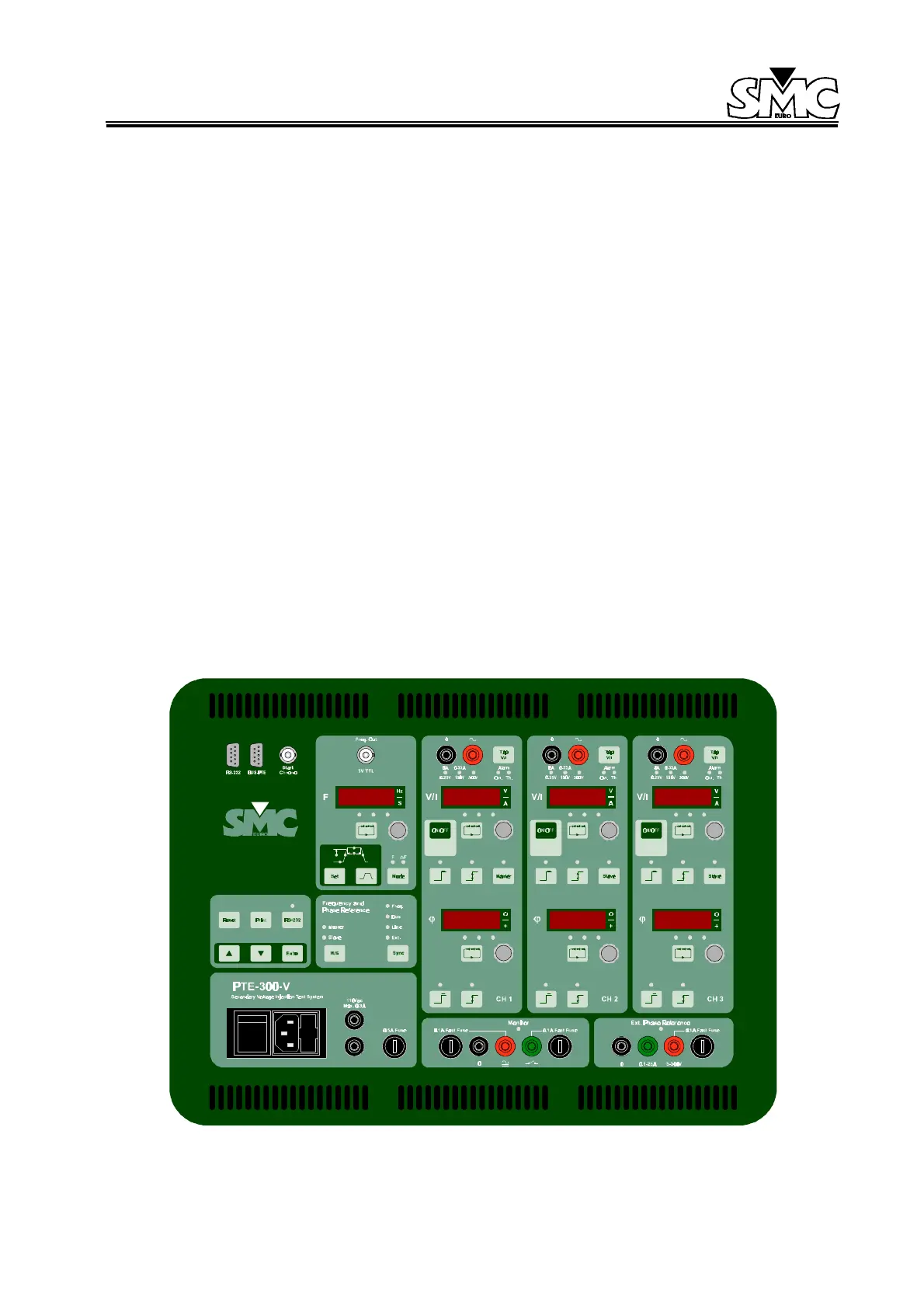

Figure 1: PTE-300-V Front Panel
