-10-
No.PS※※-OMU0006-A
Summary of Product parts

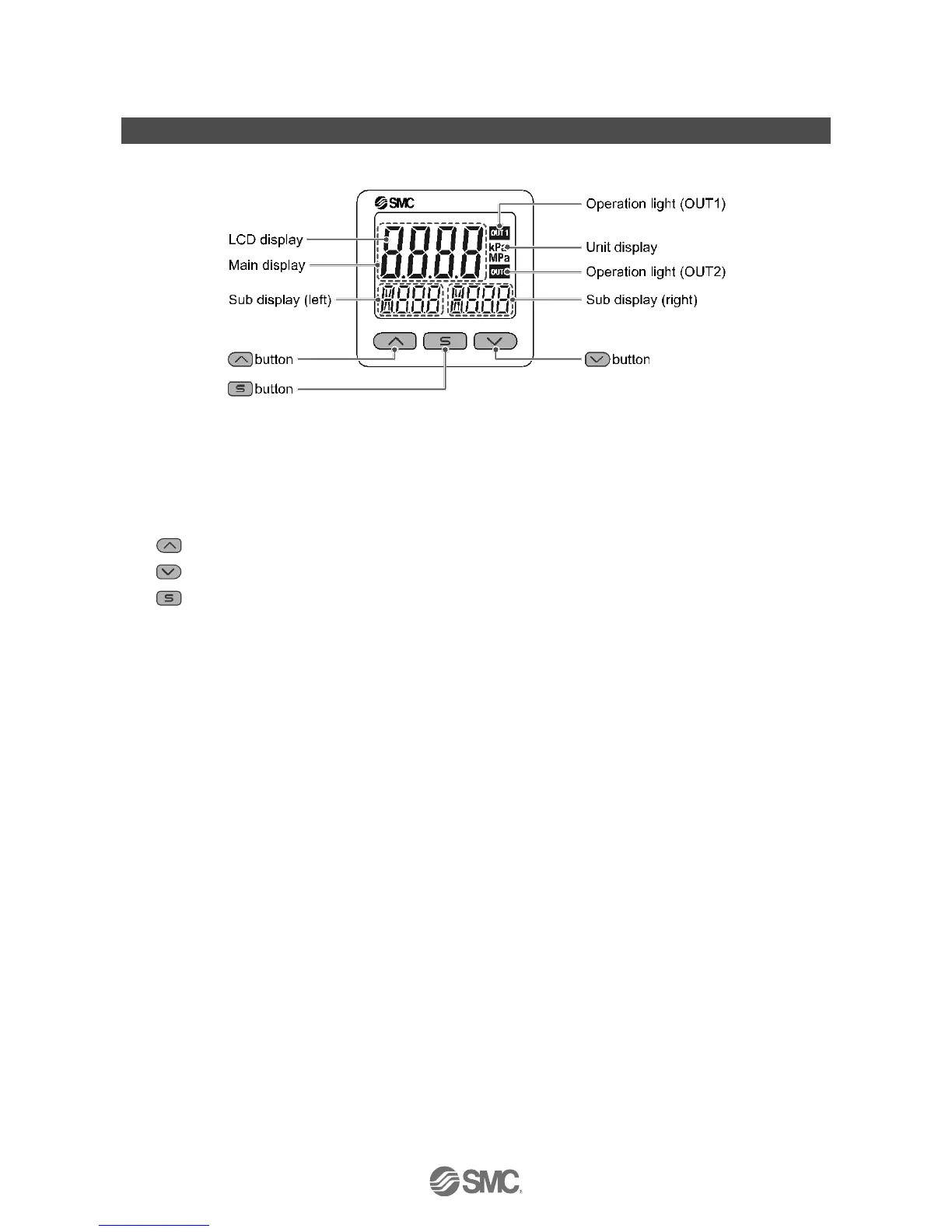

○Names of individual parts
Operation light: Displays the switch operating condition.
LCD display: Displays the current status of pressure, setting mode, selected display units and error code.
4 types of display can be selected for the main display: Single color of constant red or
green; or switching from red to green or green to red corresponding to the output.
The indication for the sub display is orange.
button: Increases mode and ON/OFF set values.
button: Decreases mode and ON/OFF set values.
button: Press this button to change mode and to confirm settings.
Unit display: Indicates the units currently selected. (Only for display units of kPa and MPa.)
