-23-
No.PS※※-OMU0006-A
Pressure Setting
Default settings

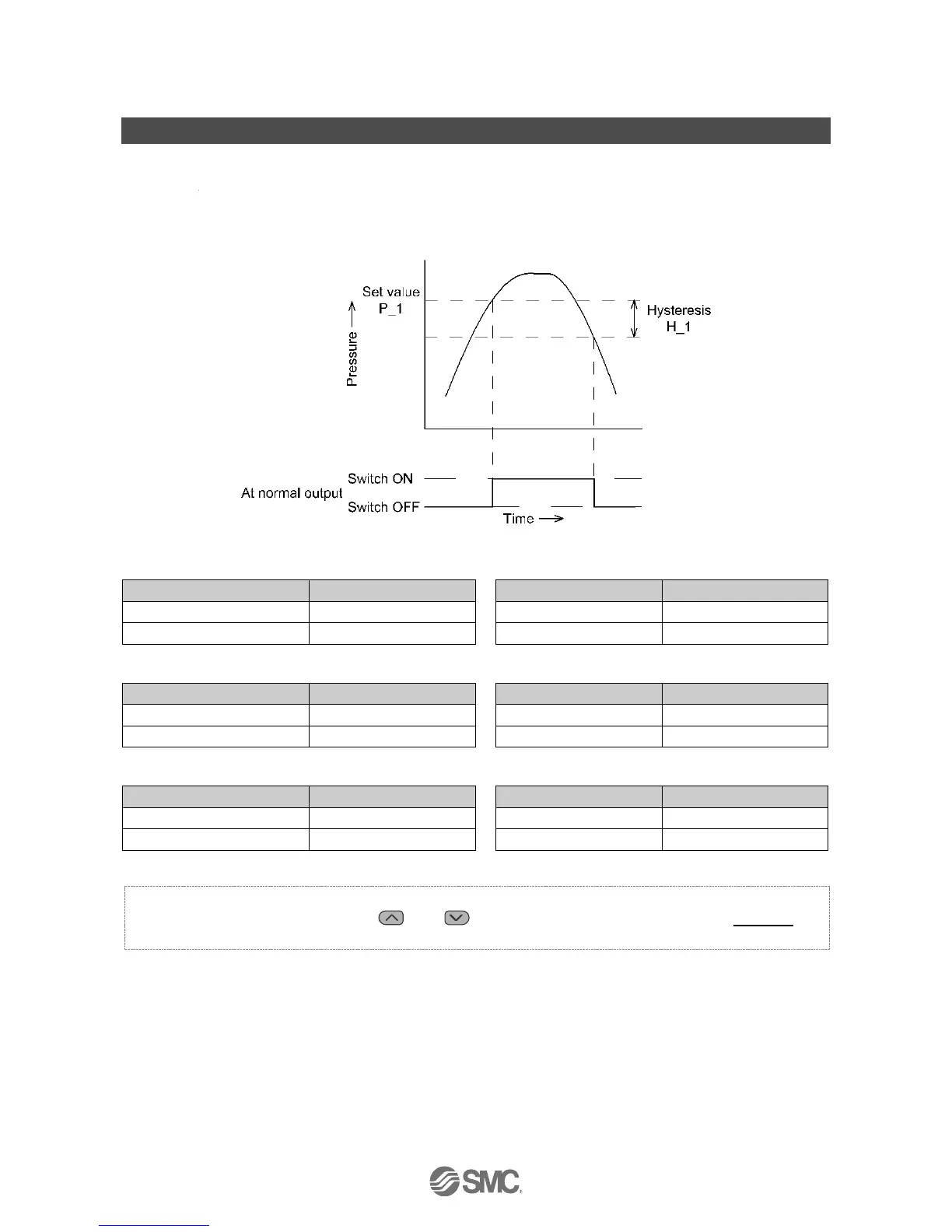

When the pressure exceeds the set value, the switch will be turned on. When the pressure falls below the set
value by the amount of hysteresis or more, the switch will be turned off. The default setting is to turn on the
pressure switch when the pressure reaches the centre of the atmospheric pressure and upper limit of the
rated pressure range. If this condition, shown to the below, is acceptable, then keep these settings.
●ISE20B
Item
Default setting
Item
Default setting
[P_1] Set value of OUT1
0.500 MPa
[P_2] Set value of OUT2
0.500 MPa
[H_1] Hysteresis of OUT1
0.050 MPa
[H_2] Hysteresis of OUT2
0.050 MPa
●ZSE20B
Item
Default setting
Item
Default setting
[P_1] Set value of OUT1
-50.5 kPa
[P_2] Set value of OUT2
-50.5 kPa
[H_1] Hysteresis of OUT1
5.1 kPa
[H_2] Hysteresis of OUT2
5.1 kPa
●ZSE20BF
Item
Default setting
Item
Default setting
[P_1] Set value of OUT1
50.0 kPa
[P_2] Set value of OUT2
50.0 kPa
[H_1] Hysteresis of OUT1
5.0 kPa
[H_2] Hysteresis of OUT2
5.0 kPa
Zero-clear of display
The display is reset to zero when the and buttons are pressed simultaneously for 1 second.
For the first operation, perform a zero-clear without pressure at measurement mode.
