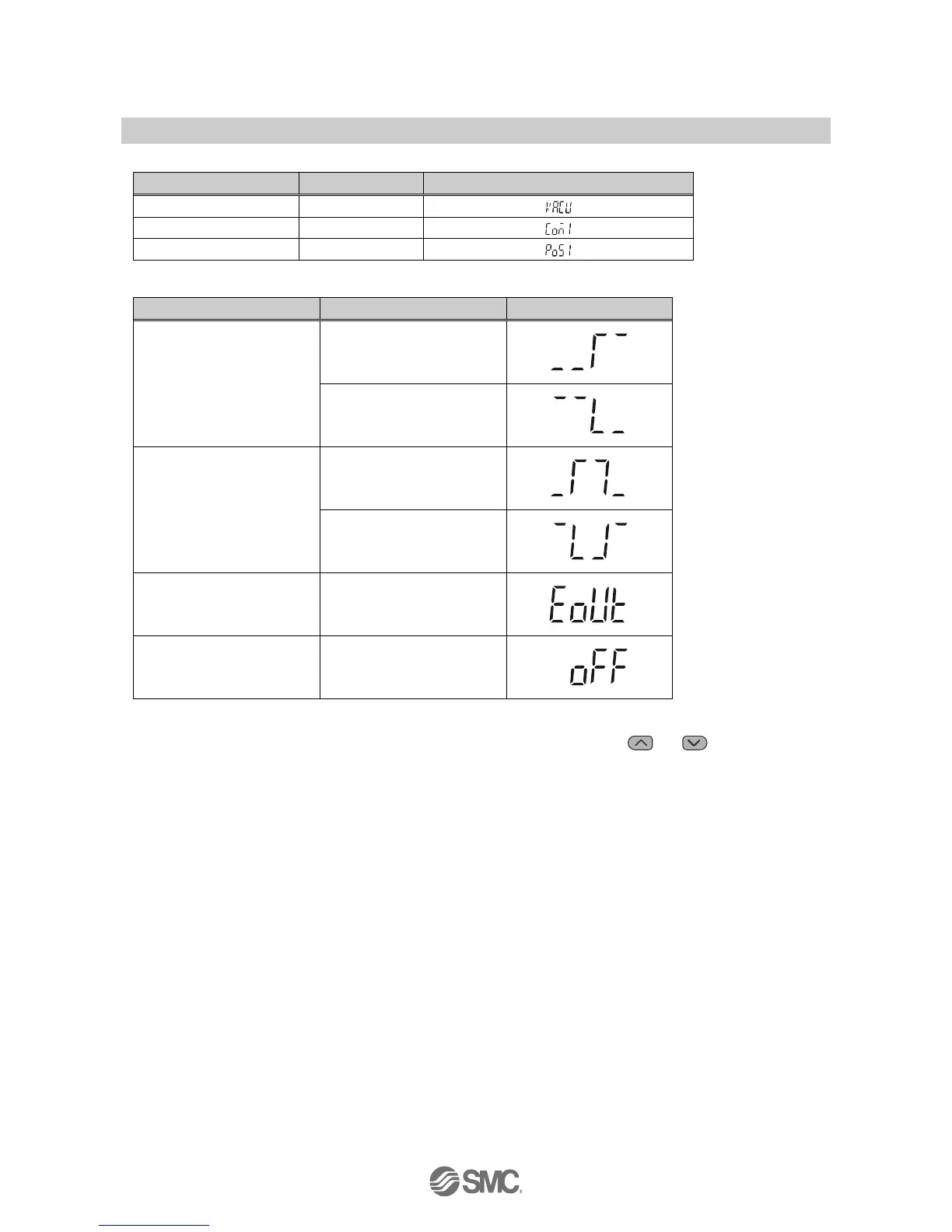

Table showing the rated pressure range when RAnG is selected.
Pressure range
Rated pressure
Characters displayed on the sub display
Vacuum pressure
-101.3 kPa
Compound pressure
100 kPa
Positive pressure
1 MPa
Table showing the output mode and output form when Md1 and Md2 are selected.
Output mode
Output style
Display style
Hysteresis mode
Normal output
Reversed output
Window comparator mode
Normal output
Reversed output
Error output
Normal/Reversed output
Switch output off
-
When using the 2 value display function, 3 step setting is not available for the display.
(When setting 3 step, select each set value to be displayed by pressing the or button.)
When output operation mode is changed after selecting the 2 value display, the selected display items will
not be applicable and [- - -] will be displayed. In this case, select items for the 2 value display setting again.
