Smeg STA4645 - Kit Supplied with Dishwasher (Models Sta_4645;Sta_8743)

Rev 0.0 9
INSTALLATION INSTRUCTIONS EN
3.1 Kit supplied with dishwasher
(models sta_4645/sta_8743)
The kit supplied with the dishwasher comprises:
adhesive steam guar
d (ref. A fi g. 3-02);•
1 steel steam guard (ref. B fi g. 3-02);*•
1 template for door panel (ref. C fi g. 3-02);•
2 hooks for door panel (ref. D fi g. 3-02);•
8 screws for securing the door panel hooks (ref. E fi g. 3-02);•
2 screws for securing the door (ref. F fi g. 3-02);•
2 screws for fi xing the dishwasher to the adjacent walls (ref. G fi g. 3-02);•
2 screw caps (ref. H fi g. 3-02).•
2 nuts (only for some models) (ref. I fi g. 3-02);•
2 washers (only for some models) (r
ef. L fi g. 3-02);•
2 adjustment feet (only for some models) (ref. M fi g. 3-02);•
2 door spacers (only for certain models) (ref. N fi g. 3-02).•
•
A
B
C
D
E
G
I
L
F
M
H
N
* The adhesive protection is suitable for kitchens with worktops that do not allow the
steel protection to be fi xed with screws (e.g.:+ marble or masonry), but it can be also
used with other materials.

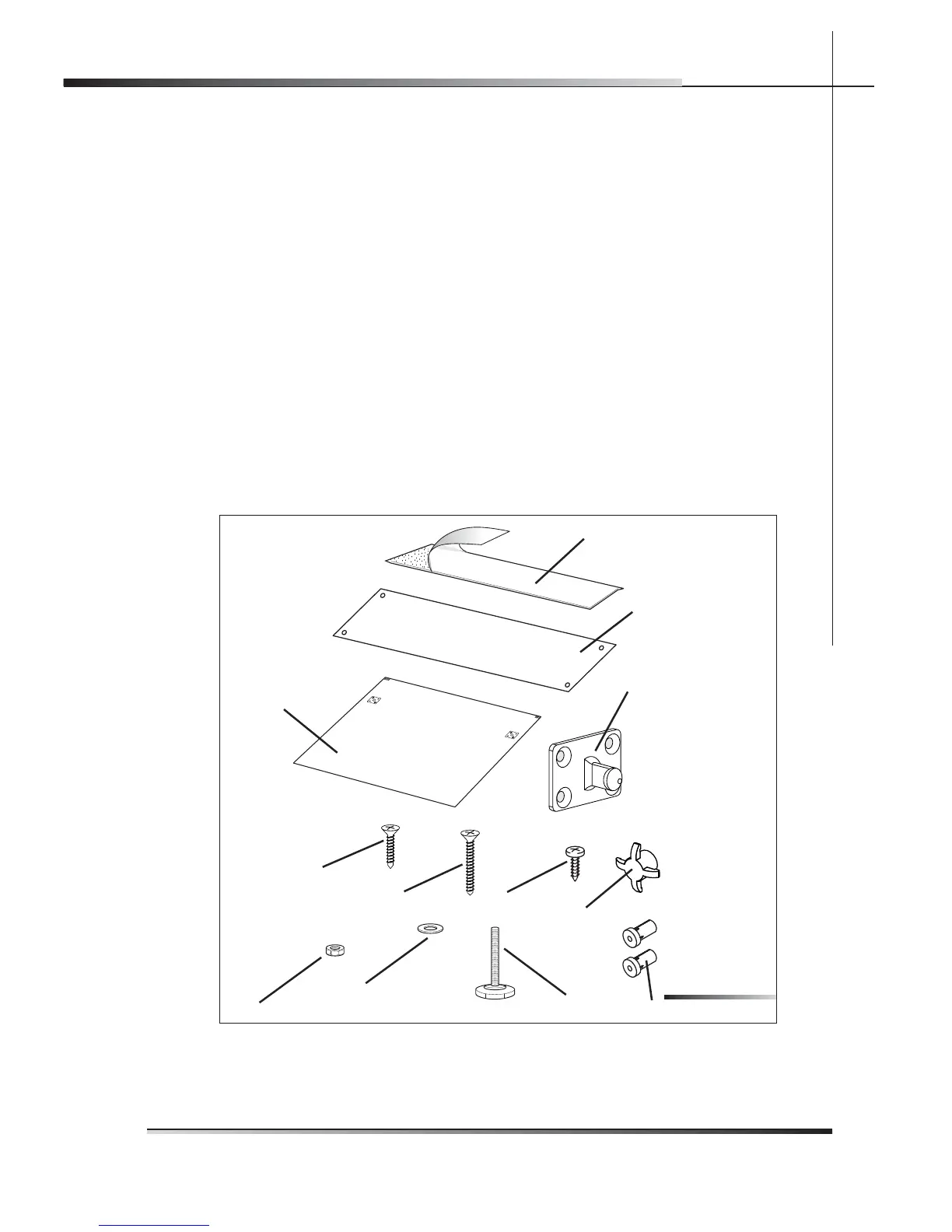

Fig. 3-02
