5.3.3 Procedure for mounting the door panel
(models pla_8743)
Mount the door panel.

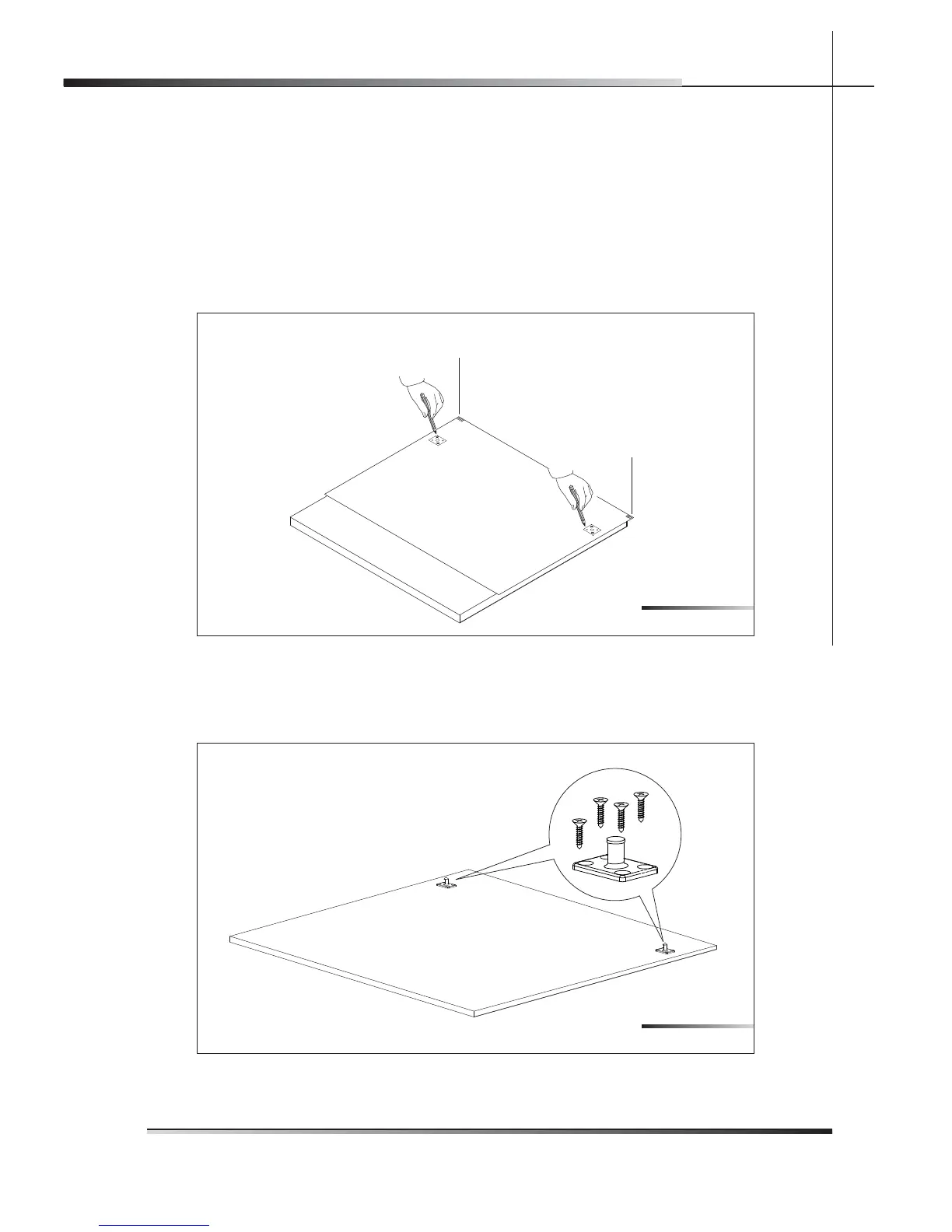

Place the template on the inner surface of the panel, centering it along the up-
per side and matching up the r
eference locators (ref. A fi g. 5-27); mark the po-
sition of the door hooks with a pencil (see fi g. 5-27). Remove the template and
use a drill with a suitable bit to make holes at the points marked on the panel.
A
A
Use the screwdriver to secure the door hooks with the 8 supplied screws (see
fi g. 5-28) at the marked reference points.
Fig. 5-28
Fig. 5-27
