Rev 0.0 19
INSTALLATION INSTRUCTIONS EN
5 .2.1.2 Connecting the drain hose
Connecting to a drain
Insert the relative hose into a drain with a minimum diameter of 4 cm (1-37/64”)
(ref. A fi g. 5-09); alternatively, place the hose on the sink (ref. B fi g. 5-09) using
the supplied hose support (see fi g. 5-10), but taking care to avoid obstructions
or excessive curving. Make sure the hose cannot fall out. For this purpose, the
hose support is fi tted with a hole (ref. A fi g. 5-10) which can be used to fi x it
to the wall or the tap with a piece of string. The free end must lie at a height
ranging from of 30 to 100 cm (from of 1-7/32” to 3-59/64”) (see fi g. 5-09)
and must never be immerged in water. If horizontal extension hoses with a
maximum length of 3m are used, position the drain hose at a maximum height
of 85 cm (3-11/32”) above the fl oor.

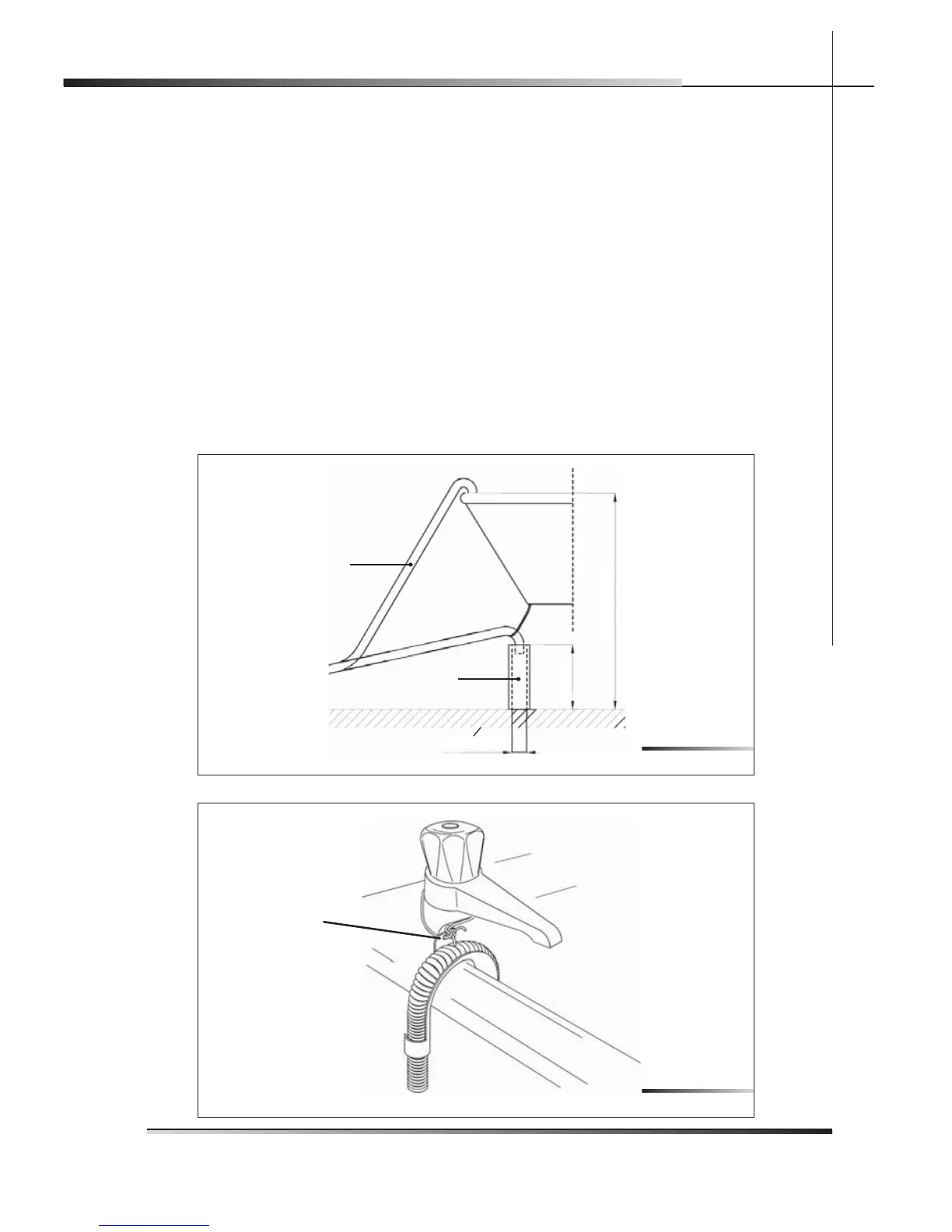

Fig. 5-09
A
B
min O4 cm
1-37/64”
min 30 cm
1-7/32”
MAX 100 cm
3-59/64”
Fig. 5-10
