INSTALLATION INSTRUCTIONSEN
Before securing the dishwasher to the adjacent units, attach the gaskets to
the sides.

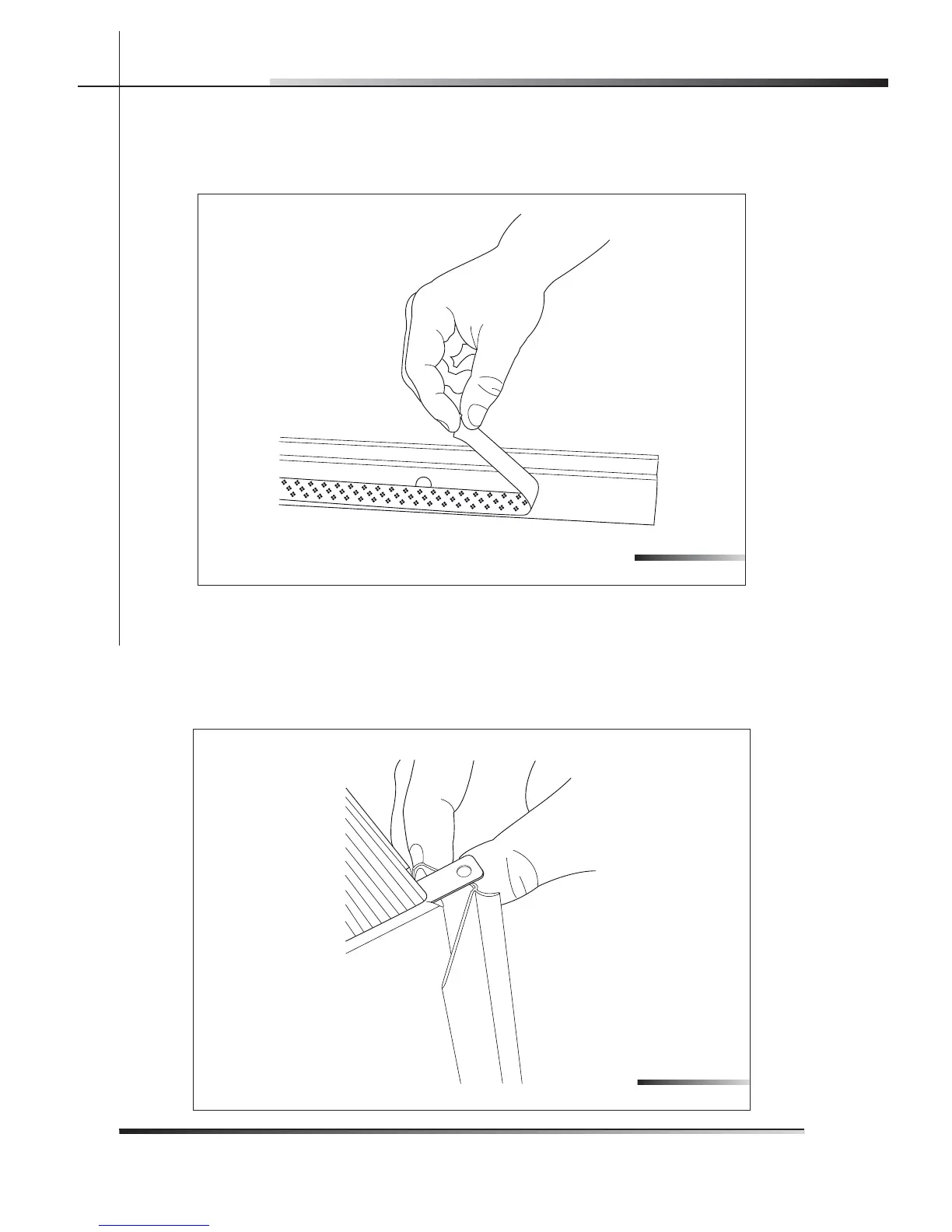

Remove the adhesive band on the gasket (see fi g. 5-37).
Fig. 5-37
Fix the gasket to the dishwasher, inserting it in the seat on the sides towards
the front (see fi g. 5-38), and making sure that the long side of the gasket, the
one with the hole for inserting the screw, is attached to the outside of the dish-
washer; the hole in the long side must match the hole in the dishwasher (see
ref. A fi g. 5-39). Make sure the gasket adheres perfectly to the dishwasher.
Fig. 5-38
