FlashRunner Cube User’s Manual
9. Connectors
ISP Connectors
FR CUBE GP02 PASS and FR CUBE GP04 PASS models have one ISP
connector; the FR CUBE GP08 PASS model has two ISP connectors.

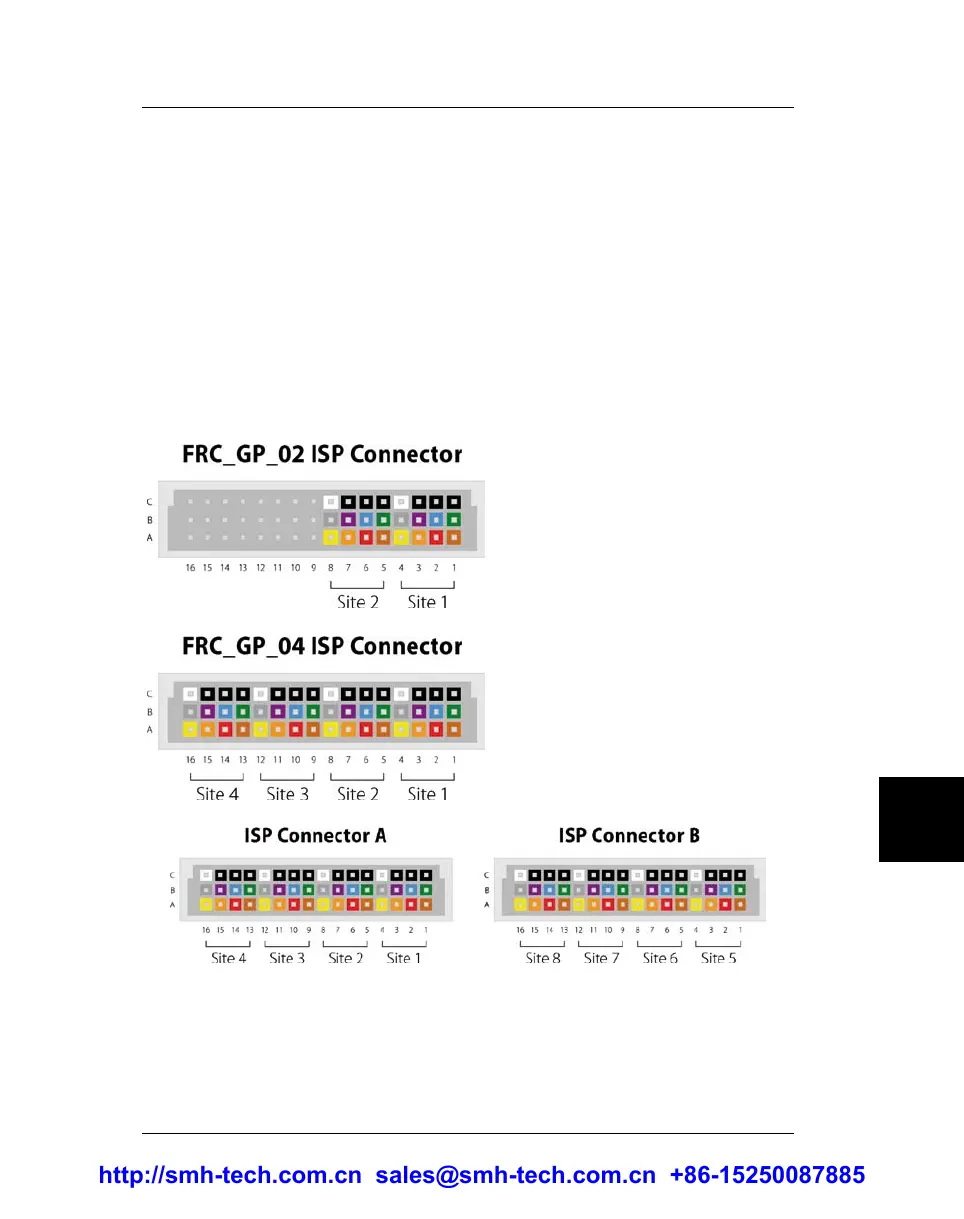

FRC_GP_02 ISP Connector
FRC_GP_04 ISP Connector
FRC_GP_08 ISP Connectors
