9
USER’S MANUAL
www.smith-root.com

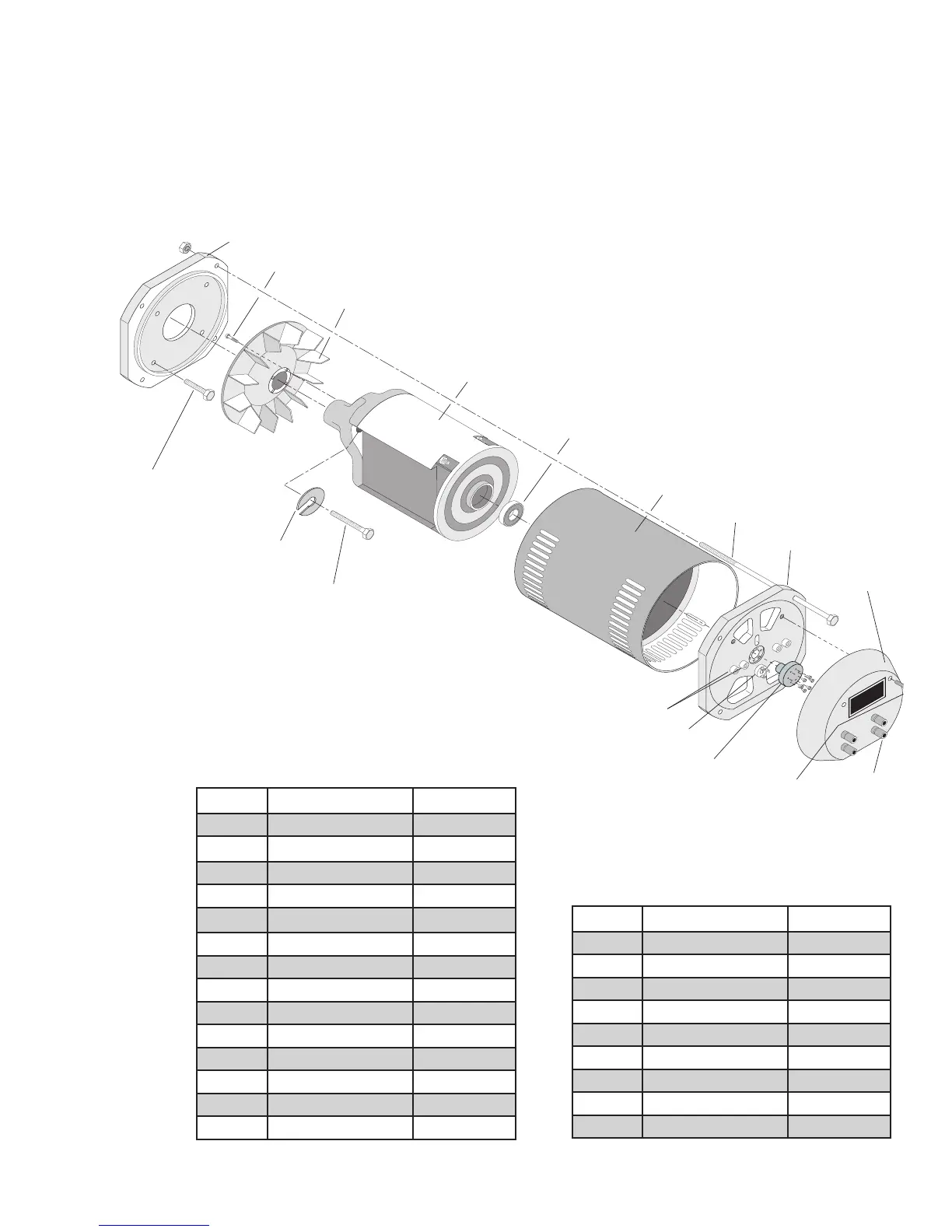

PARTS LIST
To motor shaft
Engine adaptor casting
Fan attaching bolts (4). Use fan installation kit 4540 GPP FIK, shown on next page
Fan
Rotor
Bearing
Stator
Stator bolt (4)
Bearing bracket
Cover mount
screws (2)
Diode module
Stub Shaft
(7.5 & 9.0 only)
Rotor attach bolt
"C" washer
(always replace when
bolt has been loosened)
Adapter casting
mount bolt
Brush housing
Cover
Binding posts
LINE # DESCRIPTION MODEL
04489 Stator 2.5
04649 Stator 5.0
04491 Stator 7.5
06231 Stator 9.0
04652 Rotor 2.5
04081 Rotor 5.0
02261 Rotor 7.5/9.0
02188 Brush Holder ALL
02227 Brush Holder Cap ALL
02267 Brush & Spring Asmb. ALL
02954 Diode Module ALL
04476 Fan Attach Bolt ALL
05594 Rotor Attachment Bolt 2.5/5.0
05312 Rotor Attachment Bolt 7.5/9.0
LINE # DESCRIPTION MODEL
02260 Fan ALL
08983 Cover ALL
07393 Bearing Bracket ALL
06279 Bearing ALL
00000 Stator Bolt 2.5
00000 Stator Bolt 5.0
00000 Stator Bolt 7.5/9.0
04288 'C' Washer ALL
00000 Engine Adapter ALL
To Next Page
