GPP ELECTROFISHER
USER'S MANUAL
© 2011 Smith-Root, Inc. Vancouver, WA - USA • Rev. 10
Contents
Introduction ........................................................................ 1
Unpacking .......................................................................... 2
Choosing a Location .......................................................... 2
Attaching Battery Leads .................................................... 2
Fuel Shut-Off Valves .......................................................... 3
Power Supply Controls ...................................................... 3
Electrosher Controls ........................................................ 3
Electrosher Connections .................................................. 4
Operating Procedure .......................................................... 4
Typical Hookups ................................................................ 5
Maintenance ....................................................................... 6
Basic Troubleshooting ....................................................... 7
GPP Specications Spreadsheet ......................................... 8
GPP Parts Identication ..................................................... 9
Fan Installation Kit/Engine Anti-Vibration Mounting ..... 10
Generator Anti-Vibration Mounting ................................ 11
Electrosher Control Panel .............................................. 12
Electroshing Safety ...................................................... 14
Preventing Electrical Shock ............................................. 16
Planning For Safety .......................................................... 17
Do's & Don'ts .................................................................. 18
Introduction to Electroshing .......................................... 19
Types of Current .............................................................. 21
Electrode Design .............................................................. 22
Field Techniques .............................................................. 26
Electroshing Reference & Training Materials ............... 27
APPENDIX: ADVANCED TROUBLESHOOTING .. 28
Check Generator AC Voltages ................................. 29
Test for Continuity and High Voltage Output .......... 30
Check Connections, Brushes & Exciter ................... 31
Check Rotor Windings ............................................. 32
Check Stator Windings ............................................ 33
Test GPP Control Box .............................................. 34
Test GPP Control Box- Cont. .................................. 35
Flashing the Rotor .................................................... 36
Building a Test Load ................................................ 37
2.5-5.0 GPP Wiring Diag ......................................... 38
7.5 GPP Wiring Diag ............................................... 39
9.0 GPP Wiring Diag ............................................... 40
Items manufactured by companies other than Smith-Root carry the original manufactures warranty. Please contact
product manufacturer for return instructions.
All Smith-Root, Inc. manufactured products are covered by a one year warranty.
2011
• Check wire number tags. Label with tape and pen
if missing.
• Cut wires at crimp connectors.
• Strip insulation back 1/4” ≈ (0.5 cm) to expose
bare wire.
• Test winding pairs (1 & 2, 3 & 4, 5 & 6, 7 & 8,
9 & 10, 11 & 12,) (See Fig. 5.1)
• Test yellow exciter wires (See Fig. 5.3) according
to table below.
• Test 12 Volt winding pairs (White/White, Black/
Black). Each should measure ≈0.1 Ohms (See Fig.
5.2).
• Check insulation of all windings to ground (open
connection). (See Fig. 5.4.)
• Replace Stator if out of specications.
Rotors and end bearings should be replaced as
a set. Replace rotor bearing support bracket if
old type. Contact Smith-Root, Inc. for further
information.

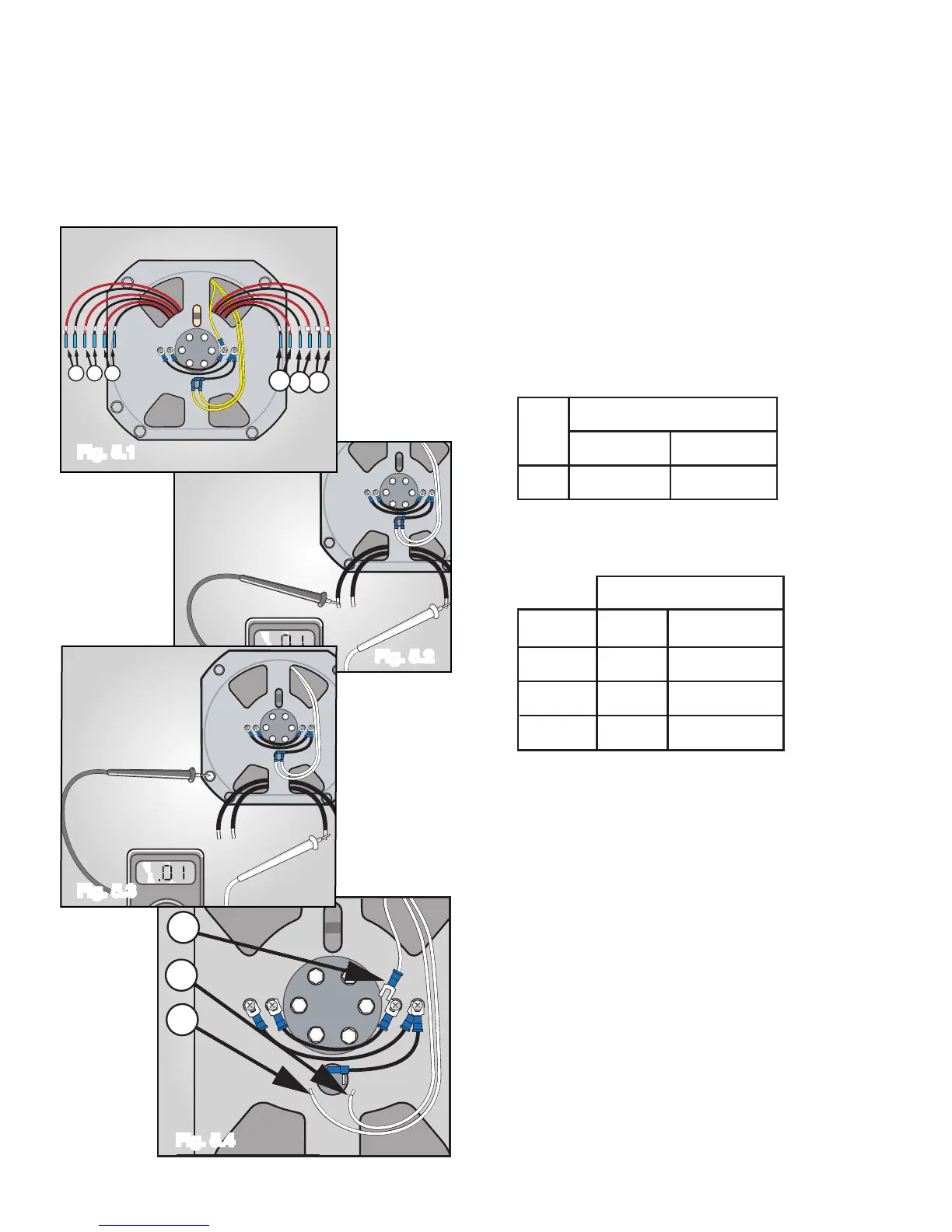

Procedure 5: Check Stator Windings
Ω
Figure 5.2
1
2
3
4
5
6
1&2
3&4 5&6
7
8
9
11 10
12
9&10 11&12
7&8
Figure 5.1
66
77
55
Figure 5.3
5.0, 7.5 & 9.0
≈
0.4 Ohms
≈
1.2 Ohms
2.5
GPP Model
Ω
5.0, 7.5 & 9.02.5
≈2.0Ω
≈4.0Ω
≈2.0Ω
≈1.7Ω
≈1.7Ω
≈3.4Ω
GPP Model
66&55
77&55
66&77
Exciter
Wires
�
Fig. 5.1
Fig. 5.2
Fig. 5.3
Fig. 5.4
