Parts
25

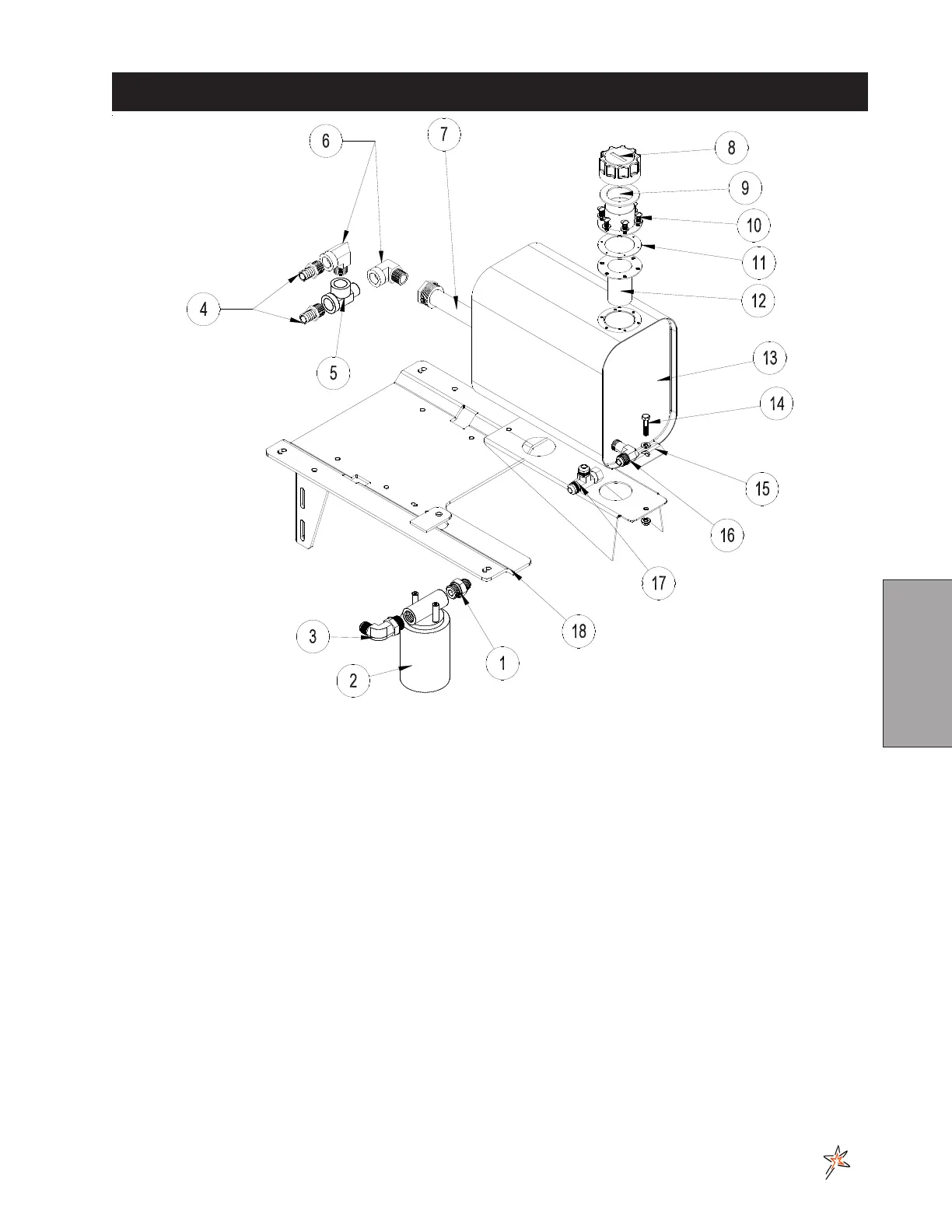

OIL TANK DRAWING
REF# PART# DESCRIPTION QUANTITY
1 15-702 Adapter 1
2 20-576 Oil Filter Assembly 1
3 18-204 Elbow 1
4 18-249 Barb Fitting 2
5 18-093 Straight Tee 1
6 18-140 Street Elbow 2
7 60-213 Strainer 1
8 13-747 Filler Breather 1
9 13-586-01 Cap Gasket 1
10 HSM-10-32-063 Machine Screw, 10 - 32 x
5
/
8
6
HWL-10 Lock Washer, 10 6
11 13-586-02 Bottom Gasket 1
12 13-586-03 Neck 1
13 60-473 Oil Tank 1
14 HB-516-18-150 Hex Bolt,
5
/
16
- 18 x 1
1
/
2
2
HNFL-516-18 Flange Whiz-loc Nut,
5
/
16
-18 2
15 75-792 Tank Hold Down 2
16 23-187 Male Elbow 1
17 34-058 Swivel Tee 1
18 20-541 Engine Plate 1
To Next Page
