Accessories
93

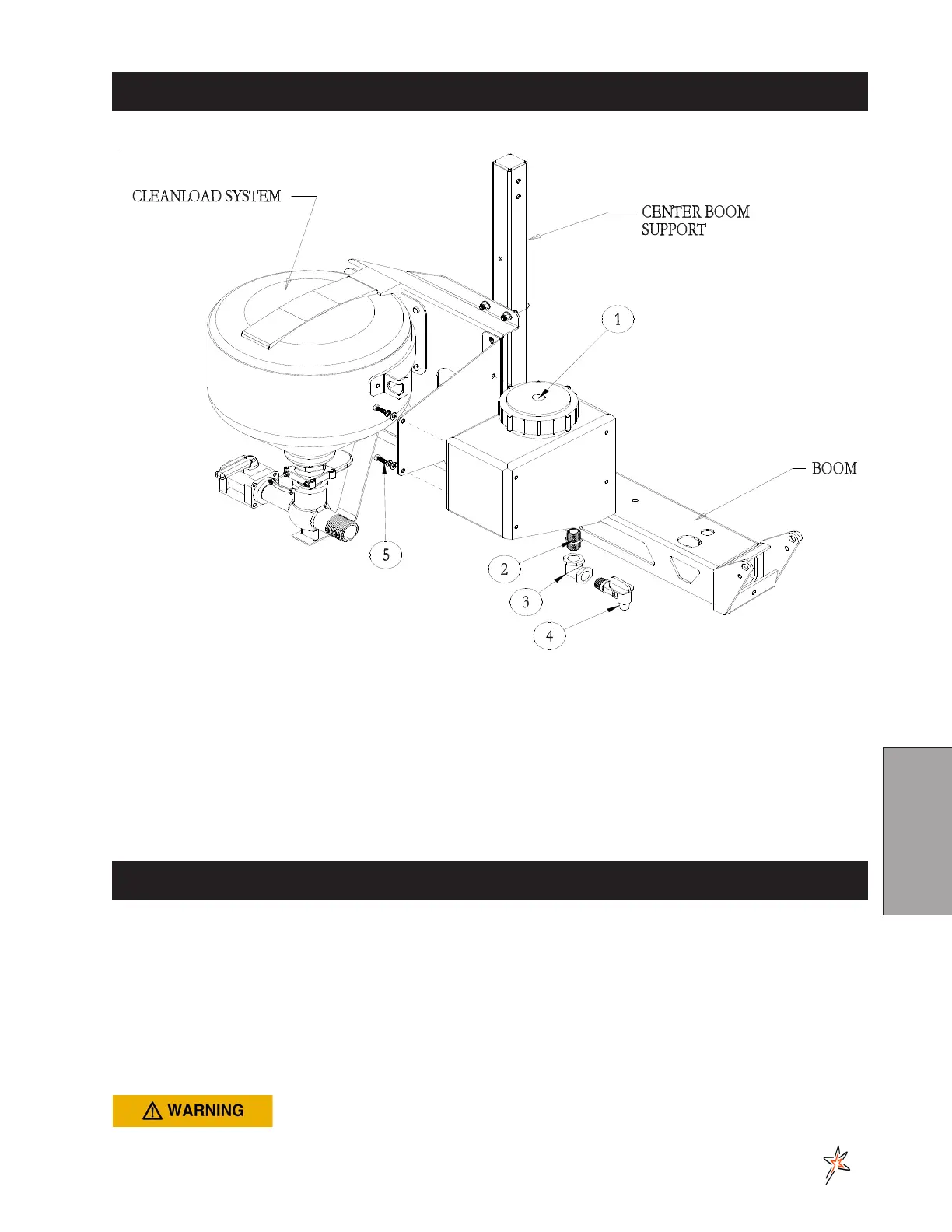

30-006 FRESH WATER TANK - REAR MOUNT
REF# PART# DESCRIPTION QUANTITY
1 10-234 Wash Tank 1
2 16-158 Close Nipple 1
3 16-151 Elbow 1
4 16-960 Spigot 1
5 HB-516-18-075 Hex Bolt,
5
/
16
- 18 x
3
/
4
4
HWL-516 Lock Washer,
5
/
16
4
HW-516 Flat Washer,
5
/
16
4
INSTALLATION INSTRUCTIONS
1. Fresh Water Wash Tank mounts on the rear of all the machines.
2. The Bracket is already attached to the Super Boom center boom post.
3. Install the nipple (Ref 2), elbow (Ref 3) and spigot (Ref 4)into the bottom of wash tank (Ref 1). Use
thread tape on all threads.
4. Mount the tank onto the mount bracket using four
5
/
16
x
3
/
4
Hex Bolts, washers and Lock Washers.
Tighten.
5. Rinse tank with clear water and check for leaks around ttings.
This tank is for fresh clear water ONLY. Do not put chemicals in this tank.
