Parts
16-998 HYPRO
®
PUMP

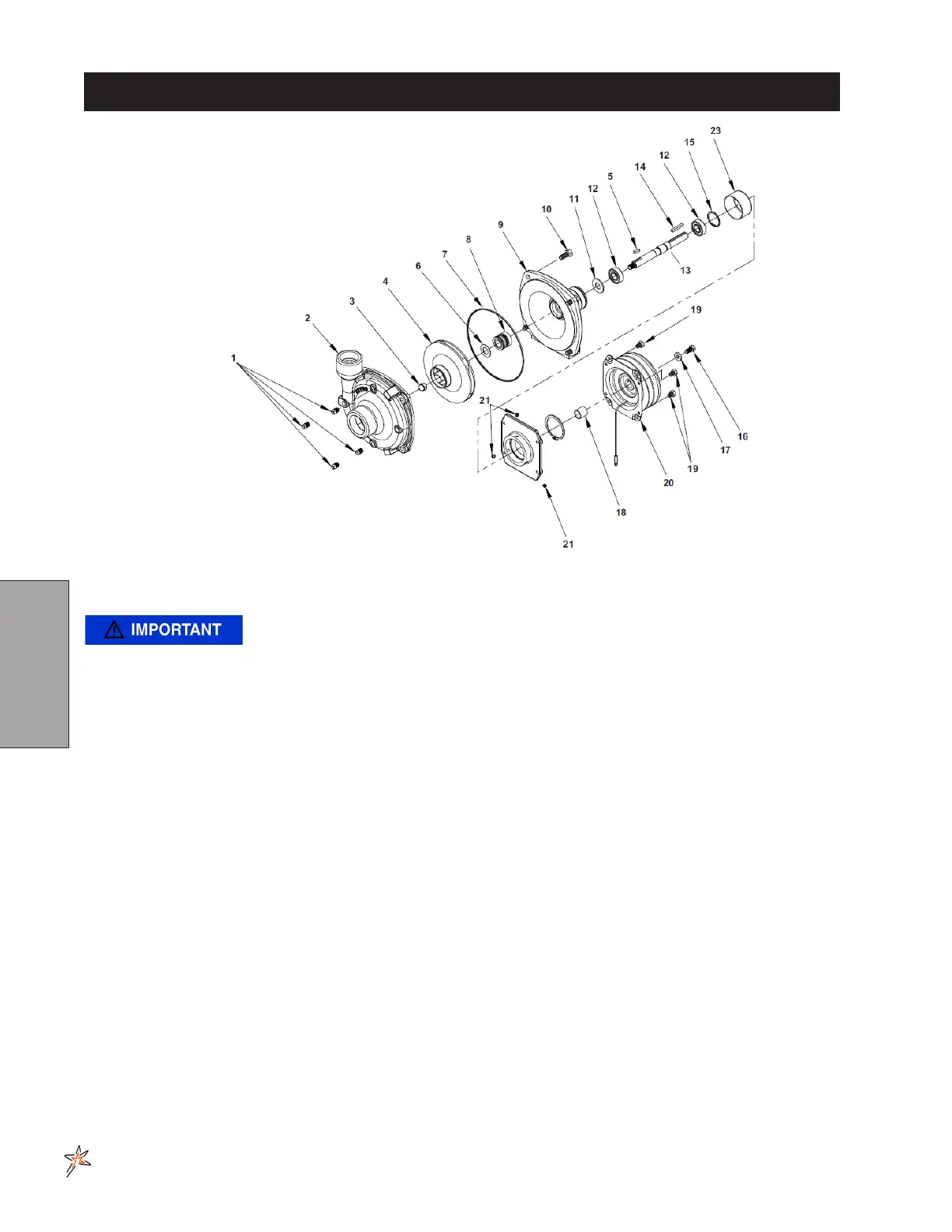

REF# PART# DESCRIPTION QUANTITY
1 16-998-01 Drain Plug 4
2 16-998-02 Pump Casing 1
3 Impeller Nut 1
4 16-966-16 Impeller 1
5 16-966-11 Key 1
6 16-998-10 Gasket 1
7* 16-998-04 O-Ring 1
8* 16-967 Mechanical Seal (Silicon Carbide) 1
9 16-998-06 Mounting Flange 1
10 16-998-07 Hex Bolt
11 16-966-06 Slinger Ring 1
12 16-966-10 Ball Bearing 2
13 16-966-12 Pump Shaft 1
14 16-822-20 Key 1
15 16-966-13 Bearing Retainer 1
16 16-994-05 Hex Bolt 1
17 16-994-06 Retaining Washer 1
18 16-994-03 Spacer 1
19 Hex Bolt 4
20 16-994-01 Clutch 1
21 16-994-04 Set Screw 3
16-998-12 Pump Only
* 16-967 Silicone - Carbon Seal Kit
When servicing the spray pump or lter, all control valves must be shut
o if there is liquid in the tank.
