59
Accessories

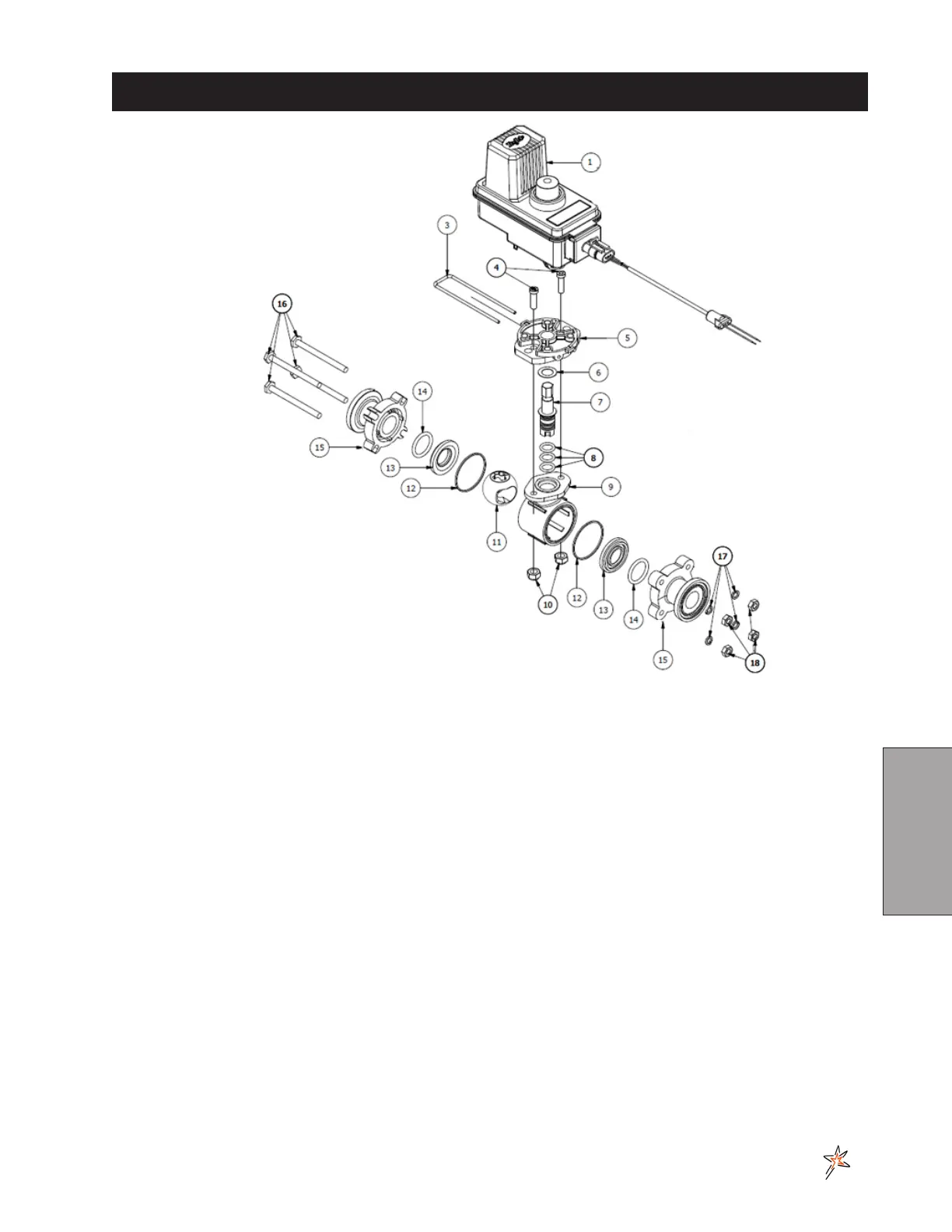

20-685 REGULATOR VALVE
REF# PART# DESCRIPTION QUANTITY
1 20-685-01 Motor
3 15-552-24 Retaining Clip 1
4 15-552-25 Socket Head Cap Screw, Stainless Steel 2
5 15-552-26 Motor Adapter, Polypropylene 1
6 15-517-11 Thrust Washer, Teon 1
7 15-552-27 Stem, Stainless Steel 1
8* 15-552-05 O-ring, Viton 3
9 15-517-16 Body, Nylon 1
10 Lock Nut, Stainless Steel 2
11 Ball, Polypropylene 1
12 15-552-13 Gasket, Viton 2
13 15-517-19 Seal, Teon 2
14 15-517-20 O-ring, Viton 2
15 15-743-01 End Cap 1
16 SSHex Bolt,
1
/
4
- 20 x 3 4
17 SS Lock Washer,
1
/
4
4
18 SS Nut,
1
/
4
- 20 4
20-685 Complete Regulator Valve
To Next Page
