23

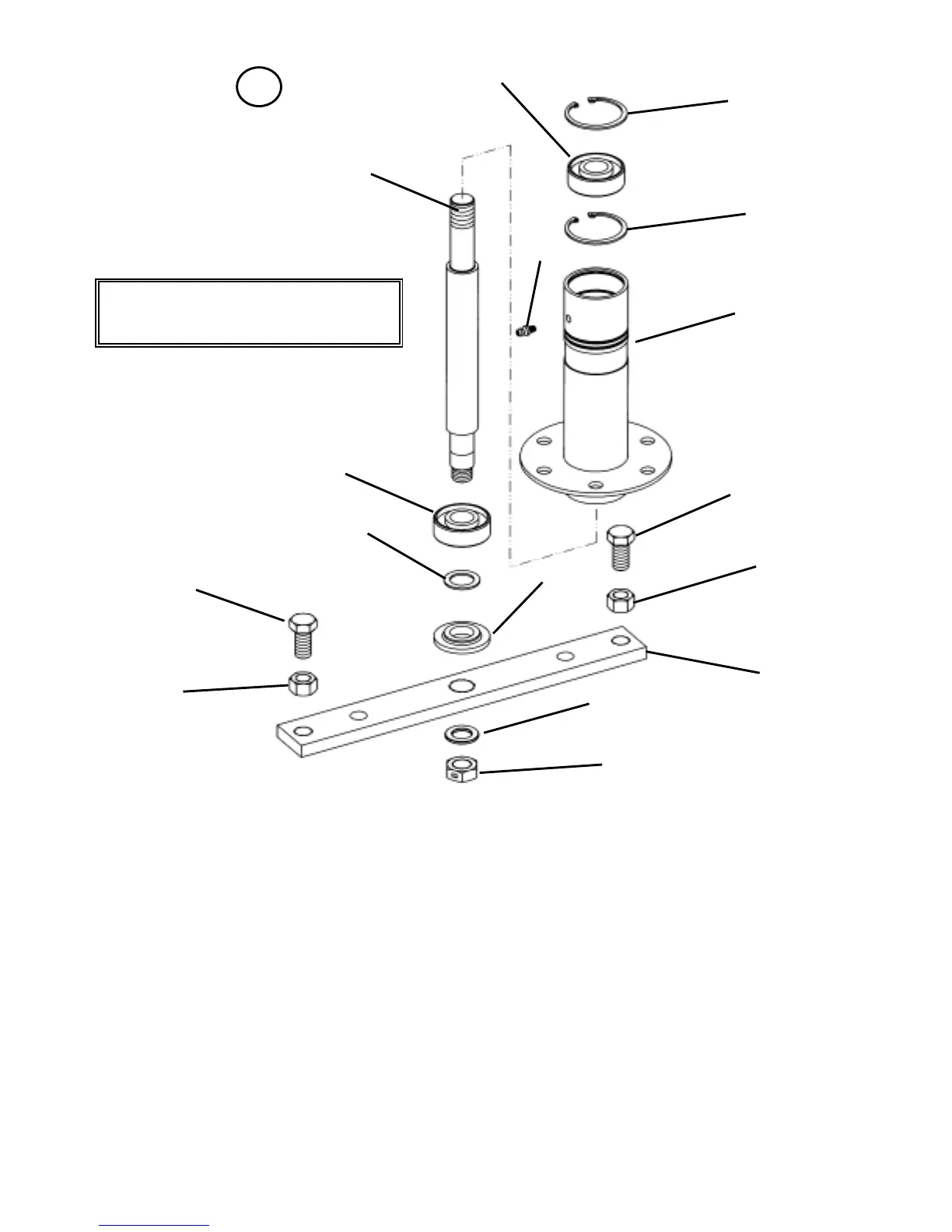

SPINDLE
ITEM PART NO. DESCRIPTION
1 5-4531 ASSEMBLY, Spindle Housing (Includes Items 2 Thru 13)
2 1-2491 RING, 1.85” Internal Retaining (2)
3 1-3313 BEARING, Spindle (2)
4 4-0460 WELDMENT, Spindle Housing
5 1-0817 FITTING, Lube (for 3/16” diameter Hole)
6 4-4785 SPINDLE, Rider (10.237” Overall Length)
7 1-0935 WASHER, 3/4 Shim
8 1-4407 WASHER, Spindle
9 3-7751 HOLDER, Blade
10 4-4782 SPACER, Blade Centering
11 9-0356 NUT, 5/8-18 Hex Center Lock
12 9-0491 SCREW, 1/2-20 x 1-1/4" Hex Head Cap, Grade 5 (2)
13 9-1939 NUT, 1/2-20 Hex Jam (2)
R. E. RIDER (EURO) SERIES 16 & 18 MANUAL No. 06103
NOTE: Spindle housing assembly,
Part no. 5-0696 includes
Items 4 and 5.
11
10
9
13
12
8
7
4
6
5
3
2
1 ASSEMBLY
3
2
12
13
