Snapper E250816BE User Manual

30

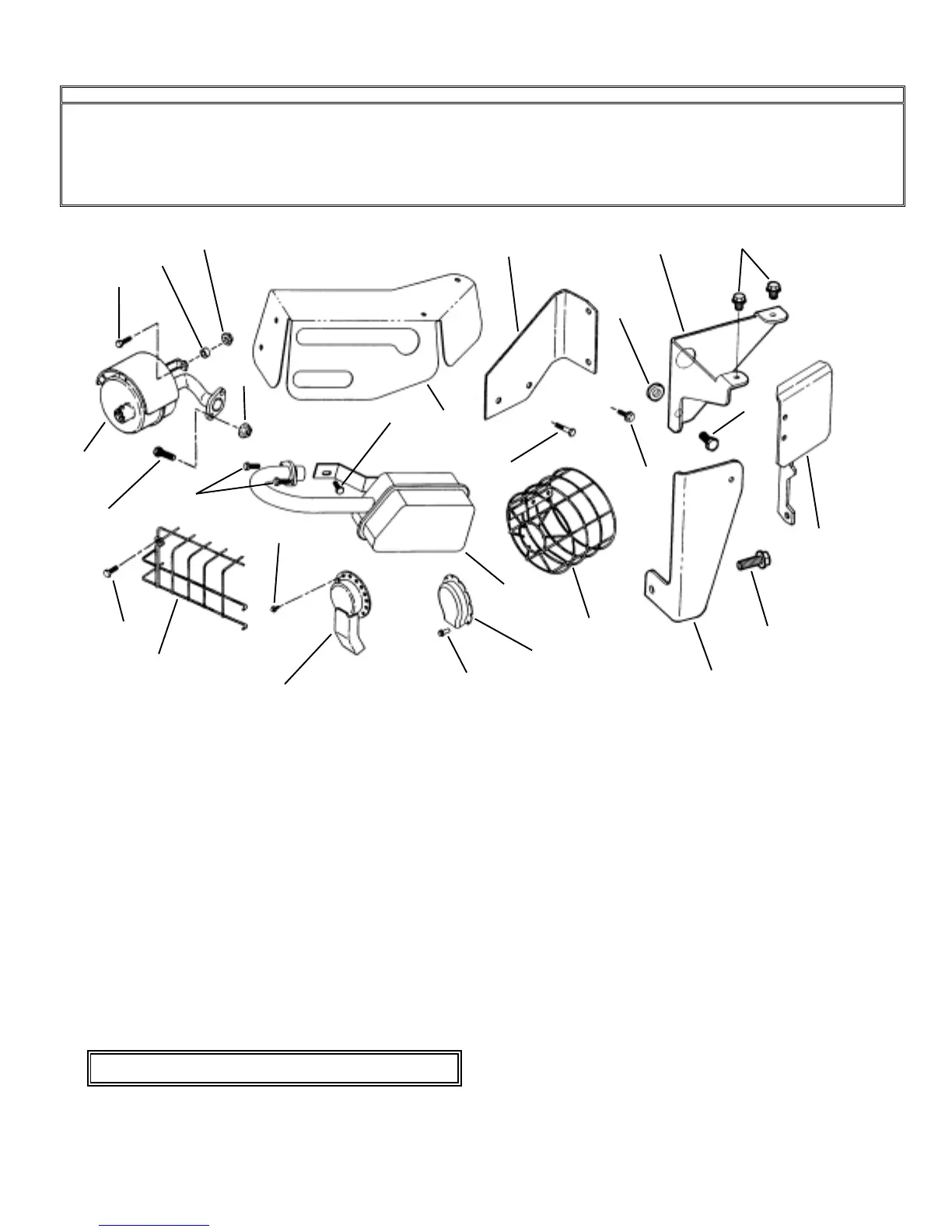

ENGINES & EXHAUST MUFFLER
ENGINE. H.P. START TYPE ENGINE MFGR. MFGR. MODEL MFGR. TYPE
8.0 ELECTRIC BRIGGS & STRATTON 195707 0143-01
10.0 ELECTRIC BRIGGS & STRATTON 28A207 0121-01
13.0 ELECTRIC BRIGGS & STRATTON 28M707 0113-01
13.0 ELECTRIC BRIGGS & STRATTON 28M707 1166-E1
14.0 ELECTRIC KOHLER CV14ST PS-1473
15.0 ELECTRIC KOHLER CV15ST PS-41584
ITEM PART NO. DESCRIPTION
1 1-9358** MUFFLER
1A 4-1824* MUFFLER, Lo-Tone
(not shown)
1B 2-8358* MUFFLER, 8 HP Briggs
1C 5-1996* MUFFLER, 10, 12, & 13 HP
Briggs (not shown)
2 9-1495** SCREW, 1/4-20 x 3/4” Hex
Head Cap, Grade 5
3 1-3849** SPACER (Series 18)
4 9-1065** NUT, 1/4-20 Hex Fl. Lock
5 9-1070** NUT, 5/16-18 Hex Flange
Lock, Grade 5 (2)
6 9-0206** SCREW, 5/16-18 x 3/4” Hex
Head Cap, Grade 2 (2)
7 2-4092* GUARD, Muffler (10/12HP)
7A 2-4441* GUARD, Muffler
7B 2-4356** GUARD, Muffler
ITEM PART NO. DESCRIPTION
8 4-1367* DEFLECTOR, Heat(10/12)
8A* 4-1368* DEFLECTOR, Heat (8 HP)
8B 5-8585* DEFLECTOR, Heat (8 HP)
9 9-1581* SCREW, #8-18x1/2”Self-Tap (3)
10 3-3564** BRACKET, Muffler Guard
11 5-8580* BRACKET, Heat Shield
(Series 18)
12 5-8579* BRACKET, Heat Shield
(Series 18)
13 9-1016** SCREW, 1/4-20 x 5/8” Hex
Head, Self-Tap (2)
14 9-1059* SCREW, 1/4-20 x 1” Hex Hd
Cap, Grade 5
15 9-0369* SCREW, 5/16-18 x 1” Hex
Washer Self-Tap
16 5-8578* SHIELD, Heat (Series 18)
17 9-1293* SCREW, 1/4-20 x 3/8” Hex
Washer Self-Tap (3)
18 4-1644* SHIELD, Heat
MANUAL No. 06103 R. E. RIDER (EURO) SERIES 16 & 18
5
1
2
6
16
10
3
12
17
2
7, 7A
8, 8A
9
1B
9
8B
14
13
7B
14
18
15
11
6
2
3
4
*Used on Briggs **Used on Kohler
