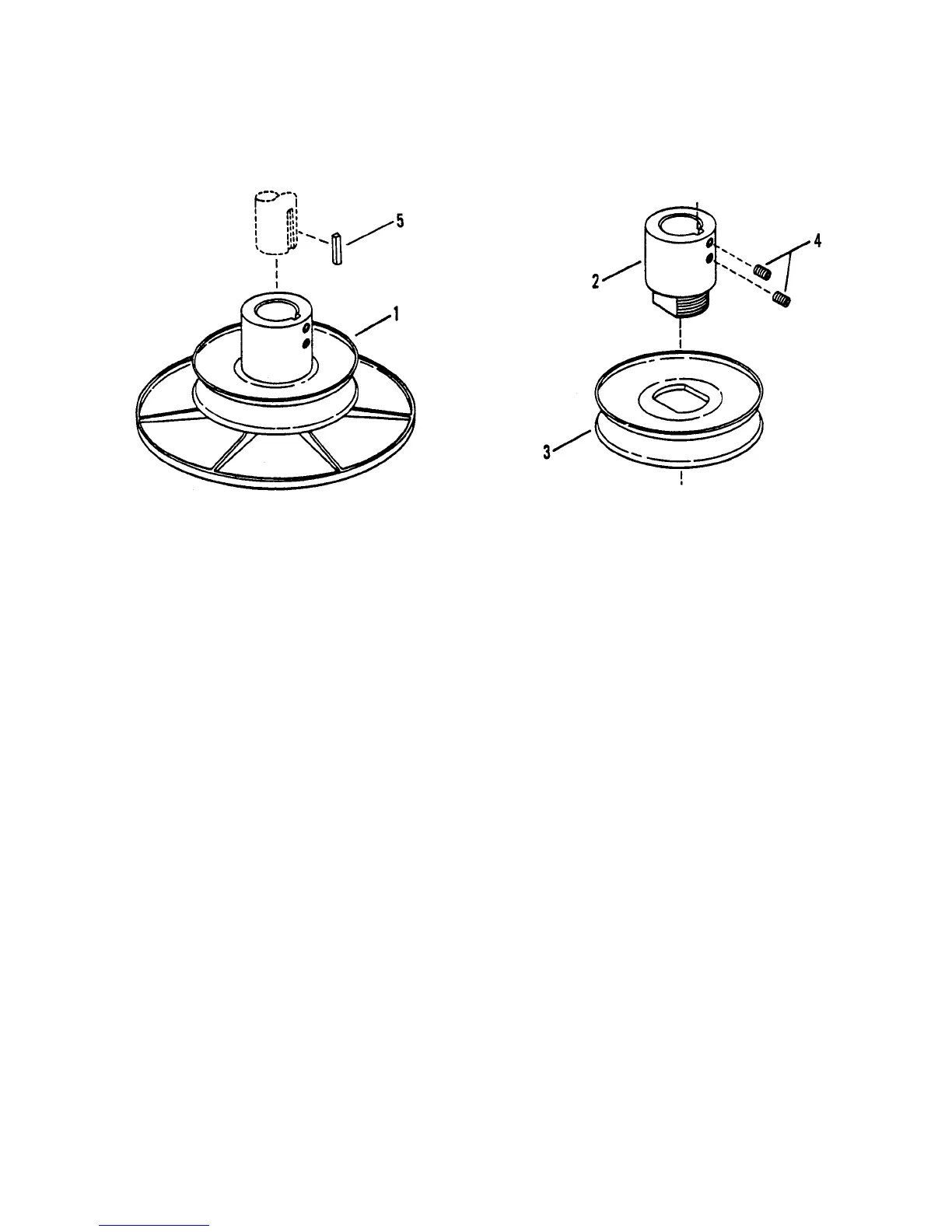

DRIVE DISC ASSEMBLY
ITEM PART NO. DESCRIPTION
1 5-3708 ASSEMBLY, 5.18" O.D. Drive Disc (33” Models)
(Includes Items 2 Thru 4)
1 5-3709 ASSEMBLY, 6" O.D. Drive Disc (25" & 28” Models)
(Includes Items 2 Thru 4)
2 2-9112 HUB
3 2-8779 PULLEY, Drive (6.0” O.D.) (25" & 28" Models)
- 2-8796 PULLEY, Drive (5.18” O.D.) (33" Models)
4 9-0132 SET SCREW, 3/8-16 x 3/8” (2)
5 1-0210 KEY, 1/4" Square x 2"
MANUAL No. 06103 R. E. RIDER (EURO) SERIES 16 & 18
