22

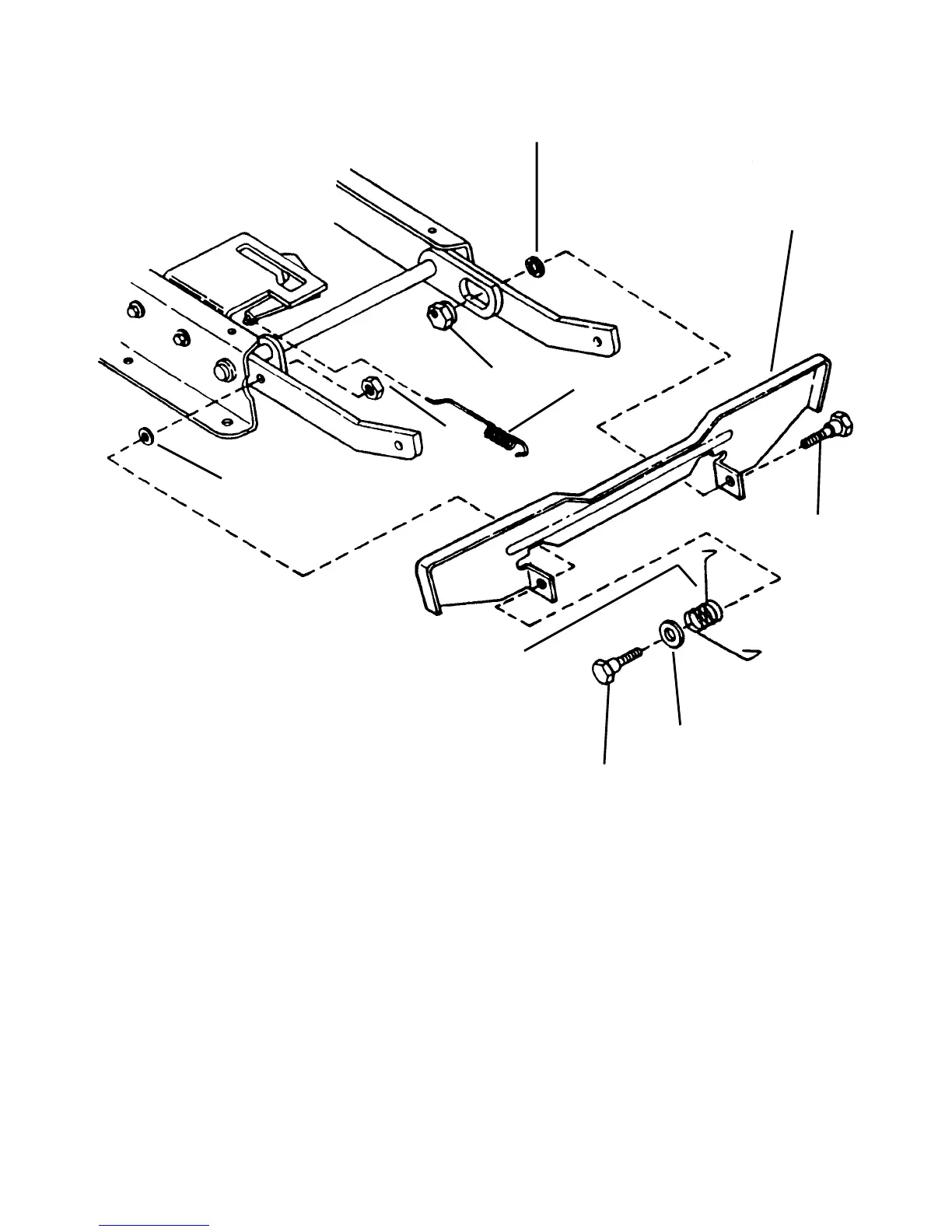

BLADE STOP PEDALS
ITEM PART NO. DESCRIPTION
1 3-5970 PEDAL, Blade Stop Control
2 3-5669 SPRING, Latching
3 1-5448 SPRING, Pedal
4 1-5495 BOLT, 3/8-24 x 3/4" Shoulder
5 1-5446 BOLT, 3/8-24 x 9/16" Shoulder
6 1-5447 ECCENTRIC, Leveling
7 9-0122 WASHER, 3/8 Flat
8 9-0250 WASHER, 1/2 Flat (2)
9 9-0289 NUT, 3/8-24 Hex Center Lock
10 9-0390 WASHER, 3/8 Internal Tooth Lock
MANUAL No. 06103 R. E. RIDER (EURO) SERIES 16 & 18
10
6
2
1
7
9
3
4
5
8
