24

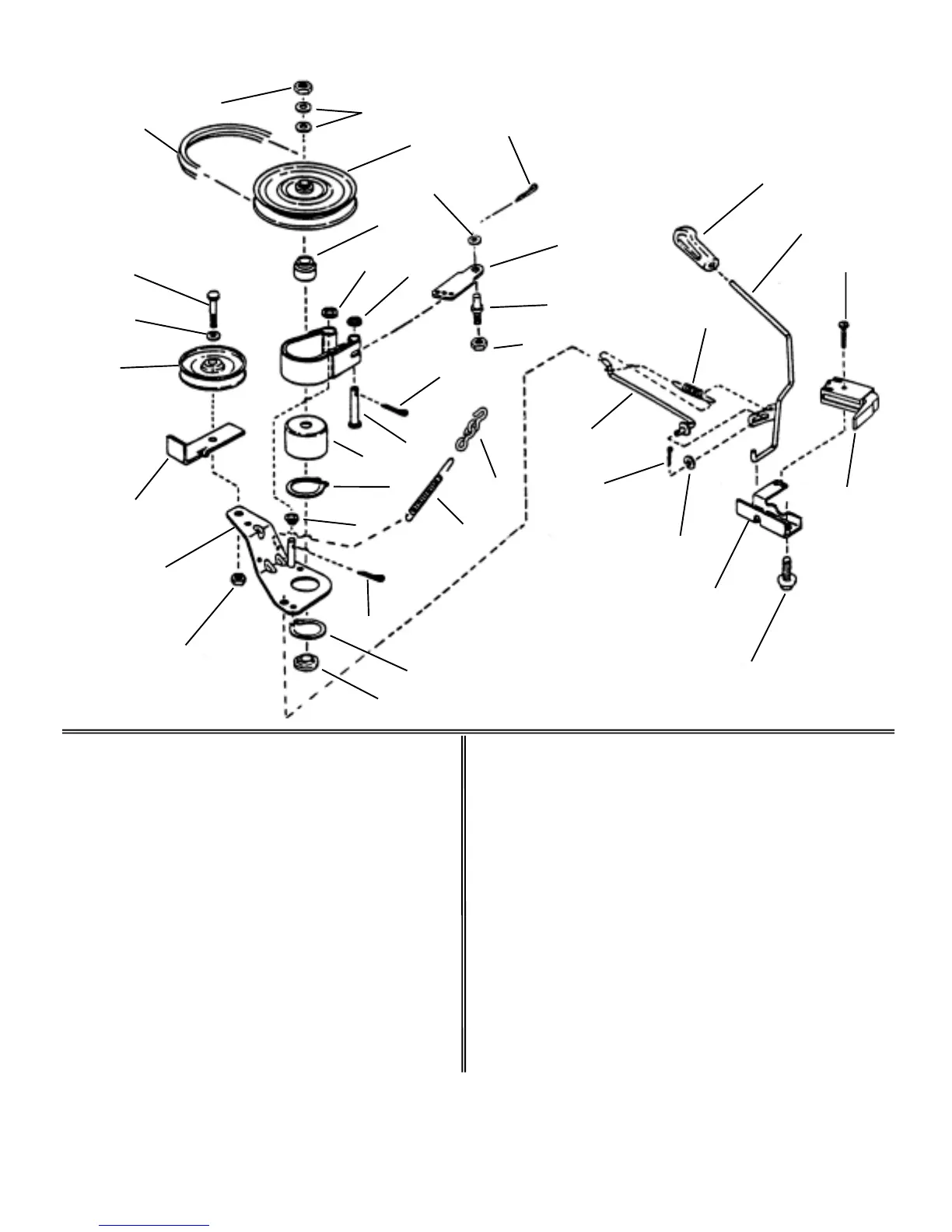

BELTS, BRAKES, INTERLOCK
(25” MODELS) (Series 16)
ITEM PART NO. DESCRIPTION
1 2-2252 BELT, Drive (72.25” AA Section)
2 1-8781 PULLEY, Spindle
3 2-9624 PULLEY, Idler
4 3-2111 RESTRICTOR, Belt
5 4-7787 ARM, Idler
6 1-2055 ROD, Idler
7 4-1324 HANDLE, Blade Lever (On-Off)
8 2-3657 GRIP, Handle
9 1-8524 SWITCH, Deck Interlock
10 3-8021 MOUNT, Handle
11 1-4168 SPRING, Blade Handle
12 1-4314 SPACER
13 1-0740 RING, Retaining (2)
14 3-5378 DRUM, Brake
15 3-4852 BAND, Brake
16 1-4304 PIN, 1/4 x 1-5/8" Clevis
ITEM PART NO. DESCRIPTION
17 2-3666 SPRING
18 9-0362 SCREW, 1/4-20 x 5/8"
Hex Washer Self-Tap (2)
19 1-5290 HUB, Pulley
20 9-0122 WASHER, 3/8 Flat (2)
21 9-0055 WASHER, 1/4 Flat (2)
22 1-0027 NUT, 3/4-16 Hex Jam
23 9-1517 SCREW, 3/8-24 x 1-3/4” Hex Cap
24 9-1518 NUT, 3/8-24 Hex Nyloc (2)
25 9-0037 PIN, 3/32 x 3/4" Cotter (4)
26 9-0299 SCREW, #10-32 x 1" Self-Tap
27 3-2027 WASHER, 49/64 x 1-1/2" Flat (2)
28 9-1514 WASHER, 3/8 Flat
29 1-5464 STUD (3/8-24 Thread)
30 3-6400 BRACKET, Brake Anchor
31 3-5563 LINK, Chain
32 1-4407 WASHER, Spindle
MANUAL No. 06103 R. E. RIDER (EURO) SERIES 16 & 18
25
2
1
27
22
4
14
5
12
24
31
17
25
13
32
21
25
6
11
18
10
9
26
7
8
30
29
24
20
19
13
21
20
25
16
23
28
3
