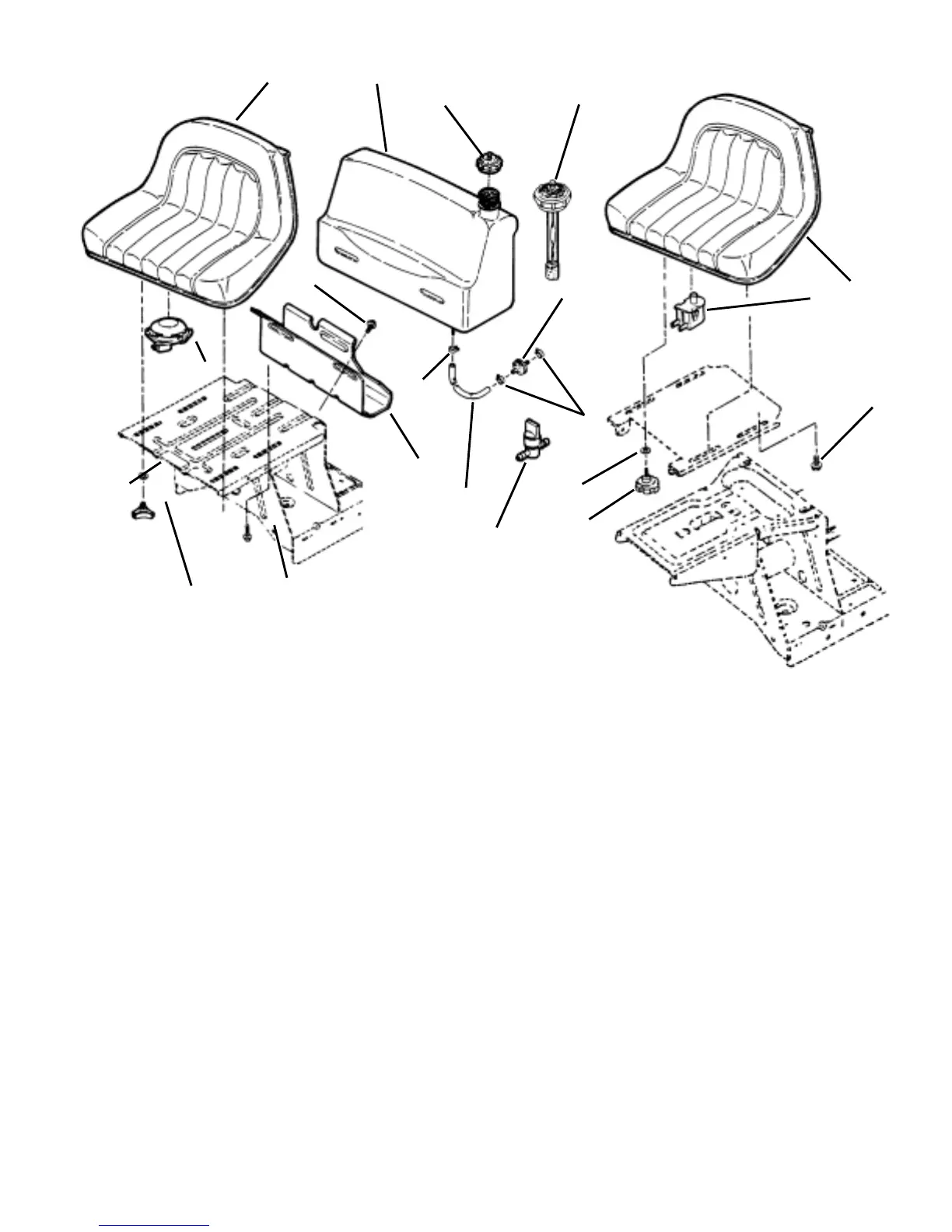

FUEL TANK & OPERATORS SEAT
ITEM PART NO. DESCRIPTION
1 2-8595 SEAT, Operator
2 5-1905 ASSEMBLY, Fuel Tank (Includes Item 3) (25” & 28” Models)
-- 5-2435 ASSEMBLY, Fuel Tank With Gauge (Includes Item 3A) (33” Models)
3 1-2515 CAP, Fuel Tank
3A 1-9377 CAP, Fuel Tank with Gauge
4 3-2015 HOSE, Fuel (7" Long)
-- 3-2038 HOSE, Fuel (5" Long)
-- 7-6272 HOSE, Fuel (8-1/2" Long) (Briggs Only)
-- 1-2912 HOSE, Fuel (12-1/2” Long) (Kohler Only)
5 1-4359 FILTER, Fuel (In-Line)
6 1-2222 CLAMP, Fuel Line (4)
7 3-3377 BRACKET, Fuel Tank (Rear)
8 9-1542 SCREW, 5/16-18 x 5/8" Pan Head Torx Self-Tap (2)
9 2-8659 KNOB (2), Hinged Seat (Series 16 & 18)
9A 2-3191 KNOB, Seat Adjusting (2)
10 1-3849 SPACER, 5/16 (33” Models) (2)
11 2-4507 VALVE, Fuel Shut-Off (Accessory)
12 9-1038 BOLT, 5/16-18 x 1/2" Hex Flange Lock (2)
13 2-3354 SWITCH, Seat
13A 2-9211 SWITCH, Seat
R. E. RIDER (EURO) SERIES 16 & 18 MANUAL No. 06103
HINGED
SEAT
MOUNT
SOLID
SEAT
MOUNT
13
A
13
12
11
10
9
8
7
6
5
4
3
A
3
2
1
1
6
9
A
10
12
