31

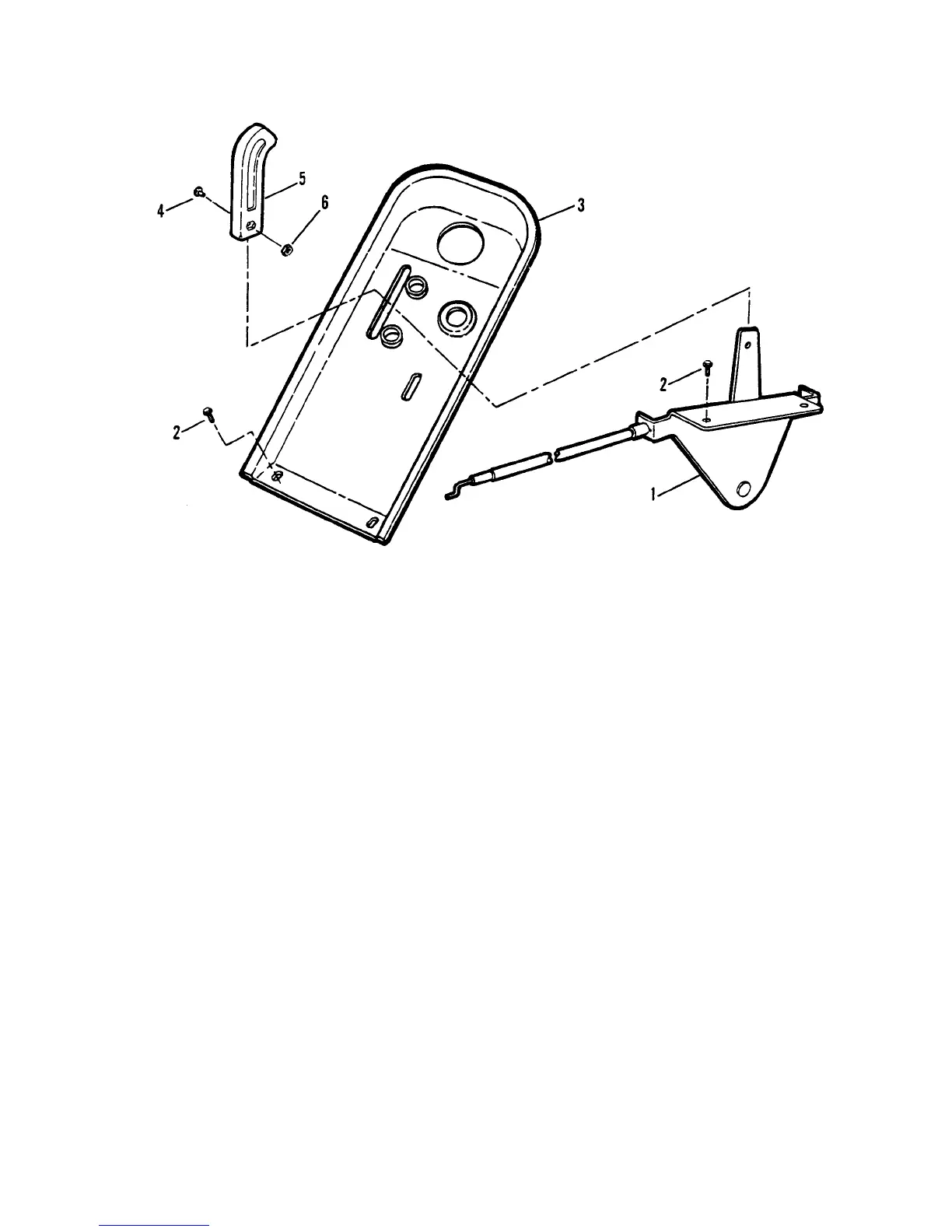

THROTTLE CONTROL
ITEM PART NO. DESCRIPTION
1 2-4155 CONTROL, Throttle (Briggs Engines)
-- 2-2483 CONTROL, Throttle (Kohler Engine)
2 9-0913 SCREW, #10-24 x 1/2” Hex Washer Self-Tap (Torx) (5)
3 2-3665 COVER, Dash Panel (Electric Start)
4 9-1017 SCREW, #8-32 x 3/8” Cross Recessed Fillister Head (2)
5 2-3655 KNOB, Throttle Control
6 9-1018 NUT, #8-32 Hex, Grade 2 or B
R. E. RIDER (EURO) SERIES 16 & 18 MANUAL No. 06103
