25

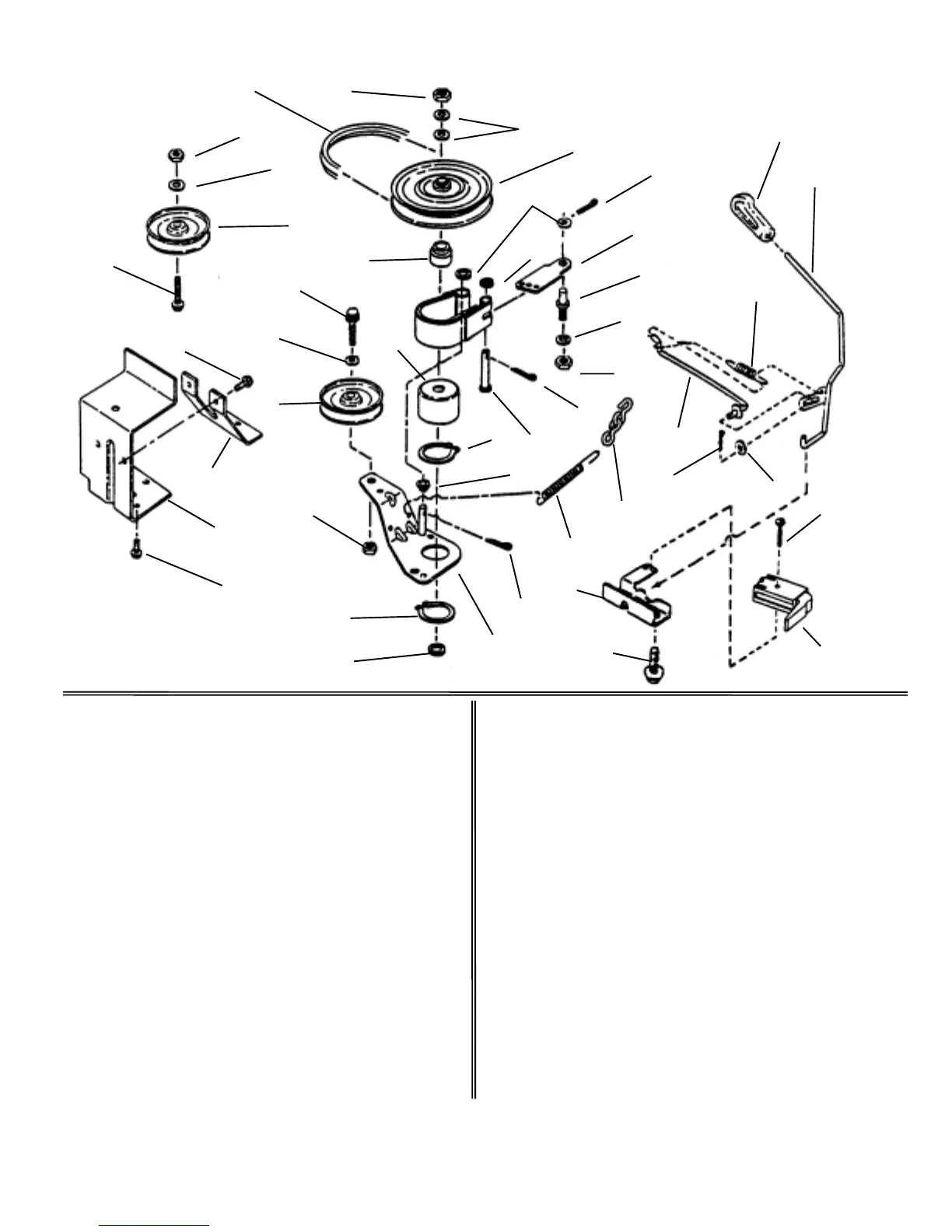

BELTS, BRAKES, INTERLOCK
(28” & 33” MODELS) (Series 16)
ITEM PART NO. DESCRIPTION
1 4-3844 BELT, Drive (73.75” AA Section)
2 1-0027 NUT, 3/4-16 Hex Jam
3 3-2027 WASHER, 49/64 x 1-1/2"
Flat (2)
4 1-8781 PULLEY, Spindle
5 1-5290 HUB, Pulley
6 9-0155 NUT, 3/8-24 Hex (3)
7 2-9624 PULLEY, 4" Idler
8 9-1497 SCREW, 3/8-16 x 1-1/2" Hex
Head Cap, Grade 5 (2)
9 3-5728 BRACKET, Fixed Idler
10 3-6526 BRACE
11 9-0858 SCREW, 5/16-18 x 1/2" Hex
Washer Head, Self-Tapping (5)
12 1-4407 WASHER, Spindle
13 1-0740 RING, Retaining (2)
14 9-0037 PIN, 3/32 x 3/4" Cotter (3)
15 2-3666 SPRING
16 4-7787 ARM, Idler
17 1-4314 SPACER
ITEM PART NO. DESCRIPTION
18 2-3657 GRIP, Handle
19 9-1514 WASHER, 3/8 Flat (2)
20 3-5378 DRUM, Brake
21 1-4304 PIN, 1/4 x 1-5/8" Clevis
22 3-4852 BAND, Brake
23 9-0122 WASHER, 3/8" Flat (2)
24 9-0055 WASHER, 1/4" Flat (2)
25 9-0118 WASHER, 3/8" Split Lock
26 3-6400 BRACKET, Brake Anchor
27 1-5464 STUD (3/8-24 Thread)
28 4-1324 HANDLE, Blade Lever
(ON-OFF)
29 1-4168 SPRING, Blade Handle
30 1-2055 ROD, Idler
31 9-0299 SCREW, #10-32 x 1" Hex
Washer Self-Tap
32 1-8524 SWITCH, Deck Interlock
33 3-8021 MOUNT, Handle
34 9-0362 SCREW, 1/4-20 x 5/8" Hex
Washer Self-Tap (2)
35 3-5563 LINK, Chain
R. E. RIDER (EURO) SERIES 16 & 18 MANUAL No. 06103
24
5
6
25
27
26
23
14
33
31
24
30
14
29
28
18
11
10
9
11
8
7
19
6
4
3
1
2
16
12
21
14
15
35
7
19
8
13
6
14
17
13
20
34
32
