Snapper E250816BE User Manual

2

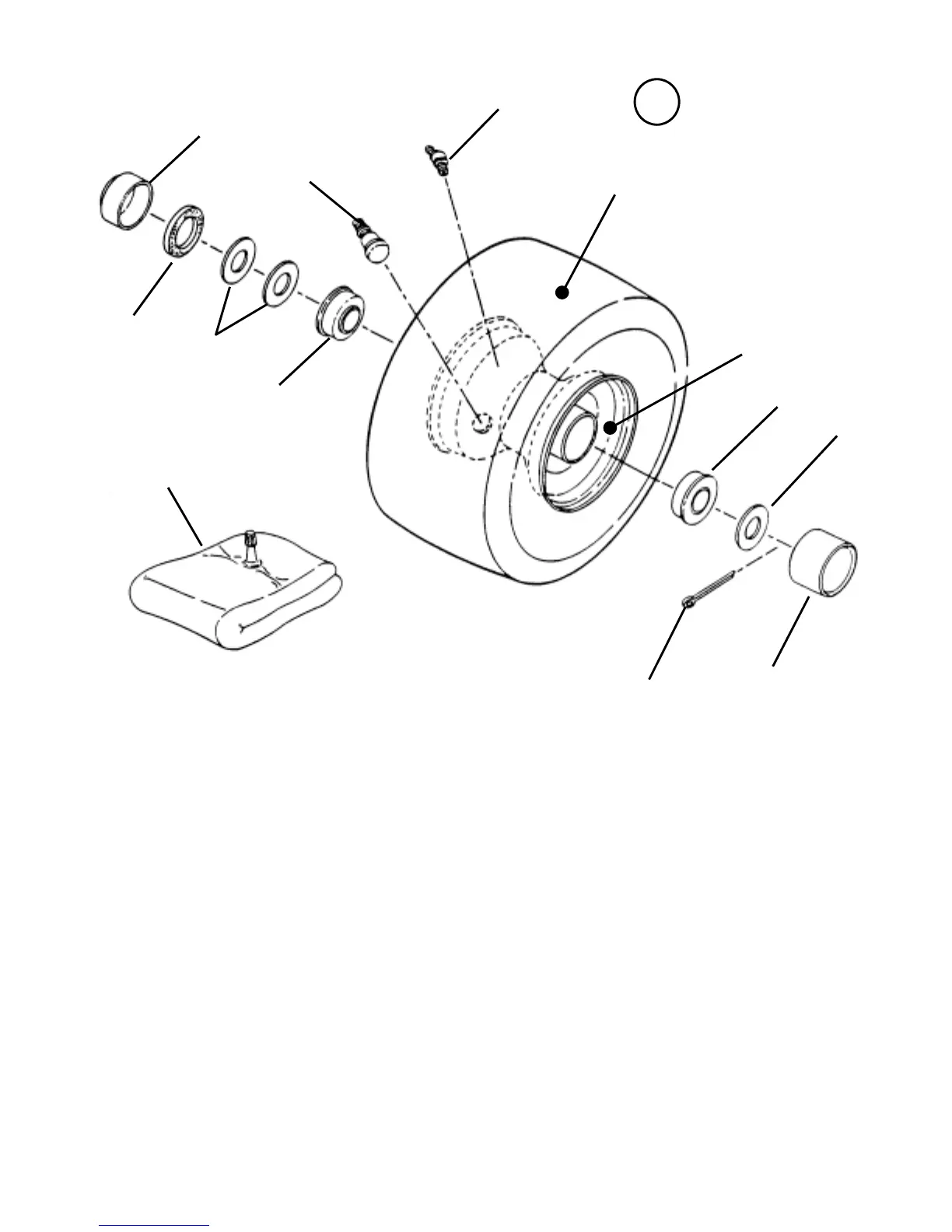

WHEELS - FRONT
ITEM PART NO. DESCRIPTION
1 5-2268 ASSEMBLY, Front Tire & Rim (Complete)
(Includes Items 2, 3, 4, 6, 12)
-- 5-2267 ASSEMBLY, Front Tire & Rim (Includes Items 2 Thru 6)
2 2-3828 TIRE, 4.10/3.50 x 4
3 1-7146 RIM (For 4.10/3.50 x 4 Tire)
4 1-1807 BEARING, Ball
5 1-2234 VALVE, Air (Snap-in)
6 1-4669 FITTING Lube
7 1-0935 WASHER
8 1-1022 CAP, Hub
9 1-1032 SEAL, Felt
10 3-1038 CAP, Dust
11 9-1516 PIN, 5/32 x 1" Cotter
12 1-0821 TUBE, Inner (For 4.10/3.50 x 4 Tire)
MANUAL No. 06103 R. E. RIDER (EURO) SERIES 16 & 18
7
12
5
6
10
7
2
9
4
3
4
11
8
1 ASSEMBLY
