WHEELS - REAR
ITEM PART NO. DESCRIPTION
1 5-2269 ASSEMBLY, Rear Tire & Rim (Includes Items 2A, 3A, & 4) (25" Models)
-- 5-2270 ASSEMBLY, Rear Tire & Rim (Includes Items 2B, 3B, & 4) (28" Models)
-- 5-2671 ASSEMBLY, Rear Tire & Rim (Includes Items 2C, 3C, & 4) (33" Models)
2A 2-3889* TIRE, Standard, 16-4.80 x 8 (25" Models)
2B 1-5968 TIRE, Wide, 16-6.50 x 8 (28" Models)
2C 2-2584 TIRE, Extra Wide, 16-7.50 x 8 (33" Models)
3A 1-2162 RIM, Standard, (For 16-4.80 x 8 Tire) (25" Models)
3B 1-2163 RIM, Wide, (For 16-6.50 x 8 Tire) (28" Models)
3C 1-7147 RIM, Extra Wide, (For 16/7.50 x 8 Tire) (33" Models)
4 1-2234 VALVE, Air (Snap-in)
5 1-2332 CLAMP, Right Hand (8, 10, 12, 13 & 15HP)
-- 1-4542 CLAMP, Right Hand (13 & 14 HP)
6 9-1502 BOLT, 1/2-20 x 3/4" Lug, Grade 5 (6)
7 3-1732 BOOT, Right Hand (8, 10, 12 & 13HP)
-- 1-4541 BOOT, Right Hand (13, 14 & 15 HP)
8 1-1817 SEAL, Oil
9 4-0433 HUB, Rear Wheel (Right Hand)
10 2-3895 CAP, Hub
11 4-0434 HUB, Rear Wheel
12 1-1201 NUT, 5/16-24 Hex Center Lock
13 1-1035 BOLT, 5/16-24 x 1-5/8" Tapered (Left Hand)
14 1-1013 BOLT, 5/16-24 x 2" Tapered (Right Hand)
15 1-4662 SEAL, Oil (Left Hand)
16 1-2332 CLAMP, (Left Hand) (13 & 14 HP)
17 1-4658 BOOT, Ball Bearing Models (Left Hand) (13 14 & 15HP Engines)
17A 3-5918 BOOT, Standard Models (Left Hand) (8, 10, 12 & 13HP Engines)
18 2-3522 CAP, Hub (Left Hand)
R. E. RIDER (EURO) SERIES 16 & 18 MANUAL No. 06103
*NOTE: 2-3889 accepts part
# 1-0525 TUBE, 16-4.80
(optional)
4

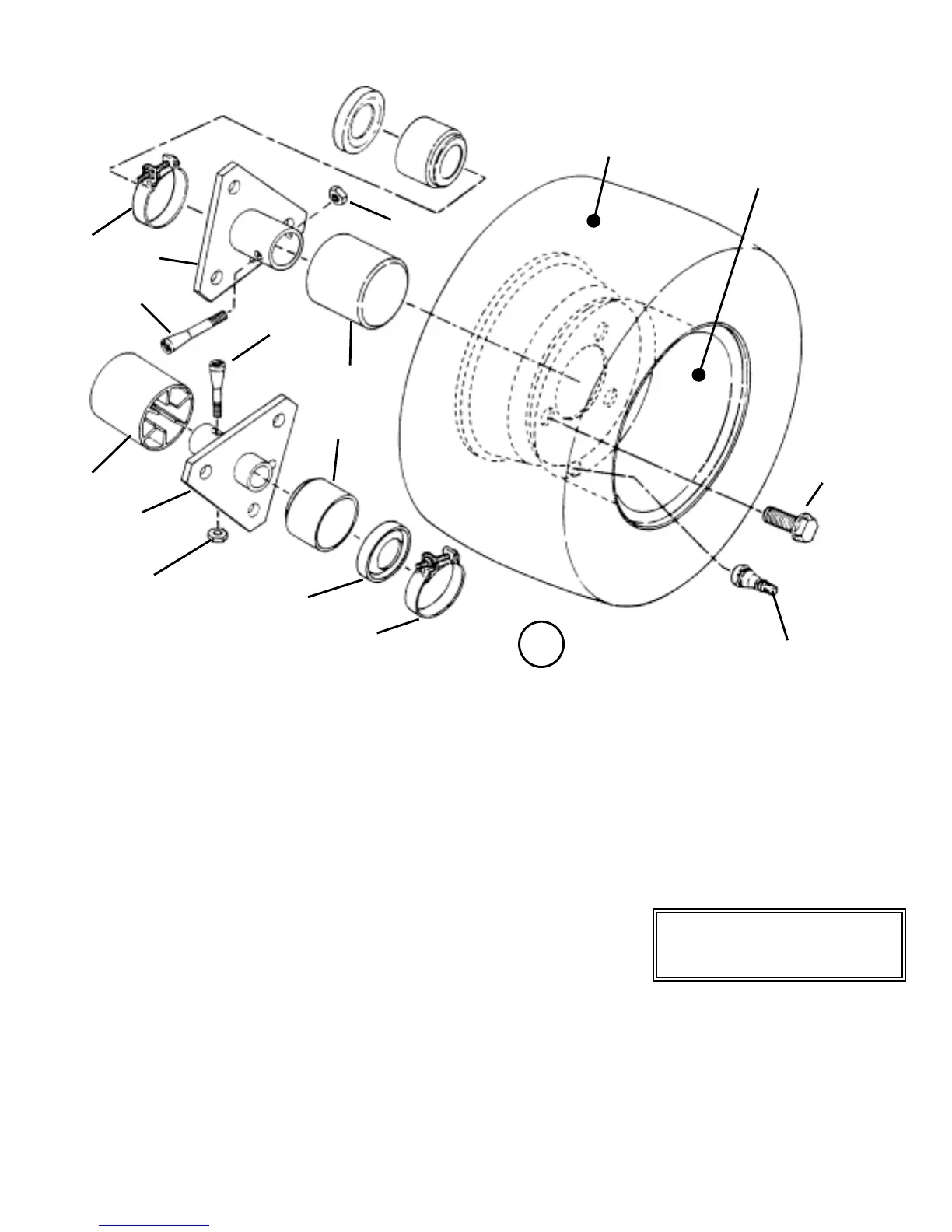

1 ASSEMBLY
16
15
17, 17A
12
11
18
6
13
14
10
12
9
5
2A, 2B, 2C
3A, 3B, 3C
