35

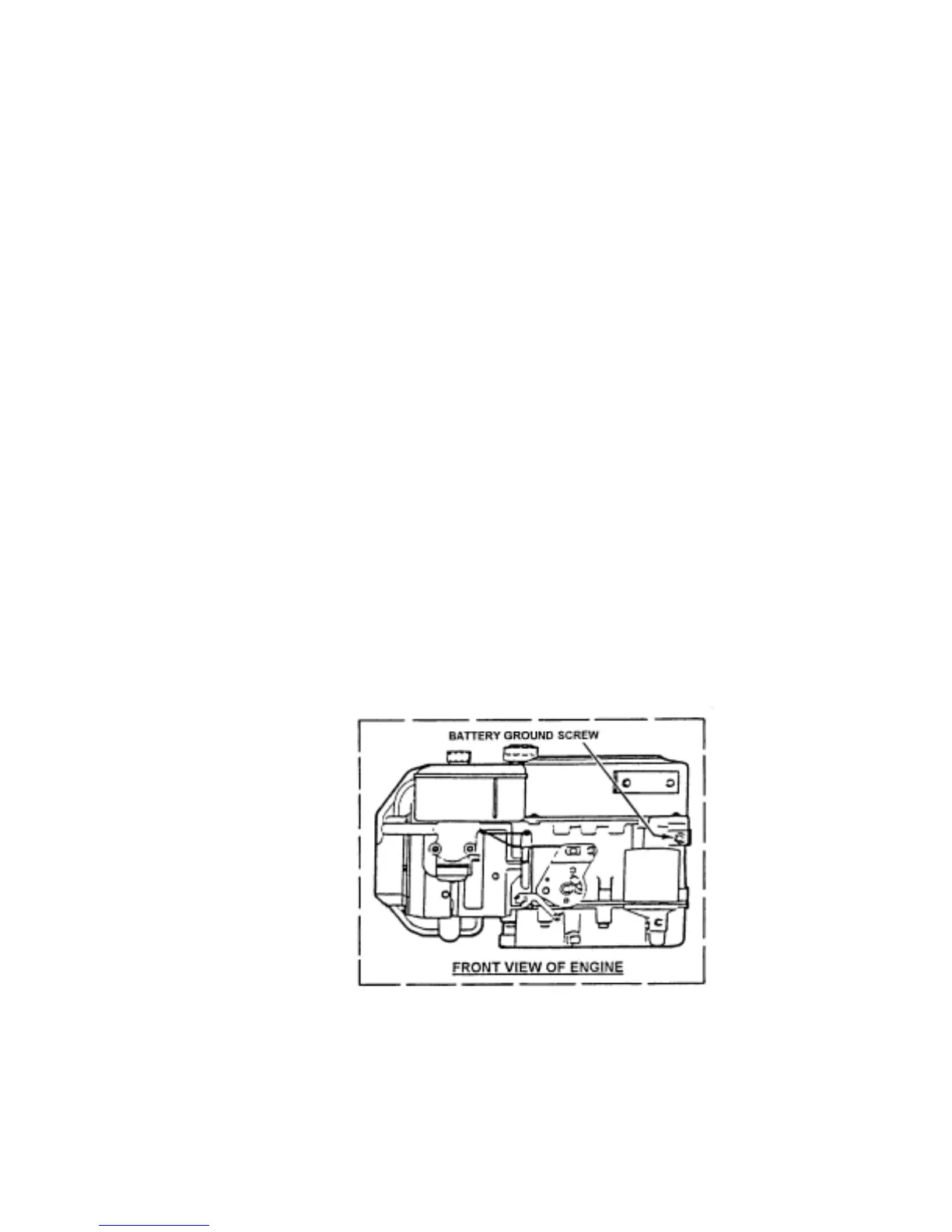

ELECTRICAL SYSTEMS
(For 14 & 15 HP KOHLER)
ITEM PART NO. DESCRIPTION
1 6-0753 KIT, 12V Dry Charge Battery
2 1-8817 SOLENOID
3 1-9321 HARNESS, Starter Wiring (Kohler)
4 1-9322 HARNESS, Ignition Wiring (Kohler)
5 1-6168 HOLDER, Fuse (Includes Fuse)
1-6169 FUSE (10 AMP)
6 2-8606 INTERLOCK Module (Briggs & Kohler)
7 2-8386 HARNESS, (Deck Interlock Wiring)
8 1-8524 SWITCH, Deck Interlock (NO)
9 1-2444 COVER, Battery Cable
10 1-9326 CABLE, Positive (Red) (17” Long)
11 1-8816 SWITCH, Ignition
12 9-0880 WASHER, 5/8 Internal Tooth Lock
13 1-5438 NUT, 5/8-32 Hex
14 1-1138 KEY, Switch (2)
15 9-0539 SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap (3)
16 1-4451 TIE, 2" Long Cable
17 9-0063 NUT, 1/4-20 Hex (4)
18 9-0053 WASHER, 1/4 Internal Tooth Lock (2)
19 2-7172 SCREW, 1/4-20 x 5/8" Hex Head Cap, Grade 5 (2)
20 2-8027 CABLE, Negative (15” Long)
21 2-8678 HARNESS, Operator Presence Control Wire
22 9-1576 NUT, 1/4-20 Hex, Grade 5 or B
23 1-2080 TIE, 7" Long Cable (2)
24 9-0372 NUT, 1/4-20 Hex Center Lock (2)
25 1-2485 RETAINER, 1/4 Bolt (2)
26 1-7590 SWITCH, Seat (NC)
27 2-2886 SWITCH, Operator Presence Control (OPC) Traction (NC/NO)
R. E. RIDER (EURO) SERIES 16 & 18 MANUAL No. 06103
