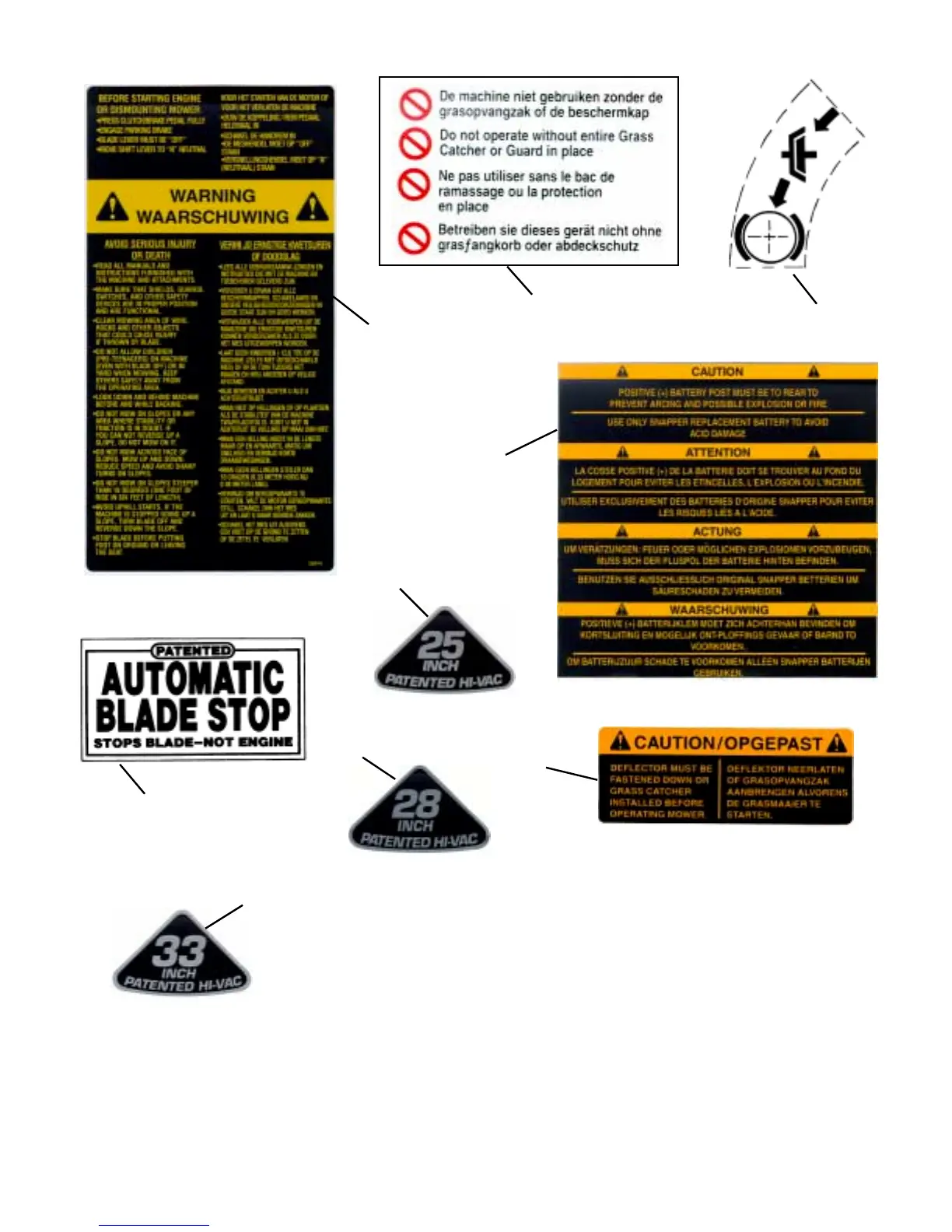

DECALS
ITEM
P
ART NO.
DESCRIPTION
10
3-5974
DECAL,
SAFET
Y Instructi
on (English
& Dutch)
11
2-9784
DECAL, DO
NOT O
PERATE!
12
2-8514
DECAL, C
lutch/Brak
e
13
2-9947
DECAL, Batt
ery CAUTION
14
2-4072
DECAL, Aut
omatic
Blade Stop
15
2-3992
DECAL,
25 Inch (Hi-
Vac)
16
2-9839
DECAL, D
eflector C
AUTION (English
& Dutch)
17
2-3996
DECAL,
28 Inch (Hi-
Vac)
18
2-2991
DECAL,
33 Inch (Hi-
Vac)
R. E. RID
ER (EURO) SERIES 16 &
18
M
A
NUAL No. 06103
10
11
12
13
14
15
17
18
16
38
40
Table of Contents
Table of Contents
1
Description
2
Wheels, Tires
2
Front End Steering
4
MAIN CASE (Solid Seat Mount)
6
MAIN CASE (Solid Seat Mount)
7
MAIN CASE (Hinged Seat Mount)
8
MAIN CASE (Hinged Seat Mount)
9
Differential, R.h. Fender
10
Differential, R.h. Fender
11
Chain Case Assembly, L.h. Fender
12
Smooth Clutch Assembly
14
Smooth Clutch Assembly
15
Cutting Decks, Deflectors
16
Cutting Decks, Deflectors
17
RAILS, LIFT ARMS, CAM LIFT (Series 16)
18
RAILS, LIFT ARMS, CAM LIFT (Series 18)
20
Blade Stop Pedals
22
Spindle Assembly
23
BELTS, BRAKES, INTERLOCK (25", Series 16)
24
BELTS, BRAKES, INTERLOCK (28"/33", Ser. 16)
25
BELTS, BRAKES, INTERLOCK (28"/33", Ser. 18)
26
Drive Disc Assembly
28
Fuel Tank & Operators Seat
29
Engine & Exhaust Muffler
30
Throttle Controls
31
ELECTRICAL SYSTEMS (Briggs)
32
ELECTRICAL SYSTEMS (Kohler)
33
Wiring Schematics
36
Decals
38
Decals
