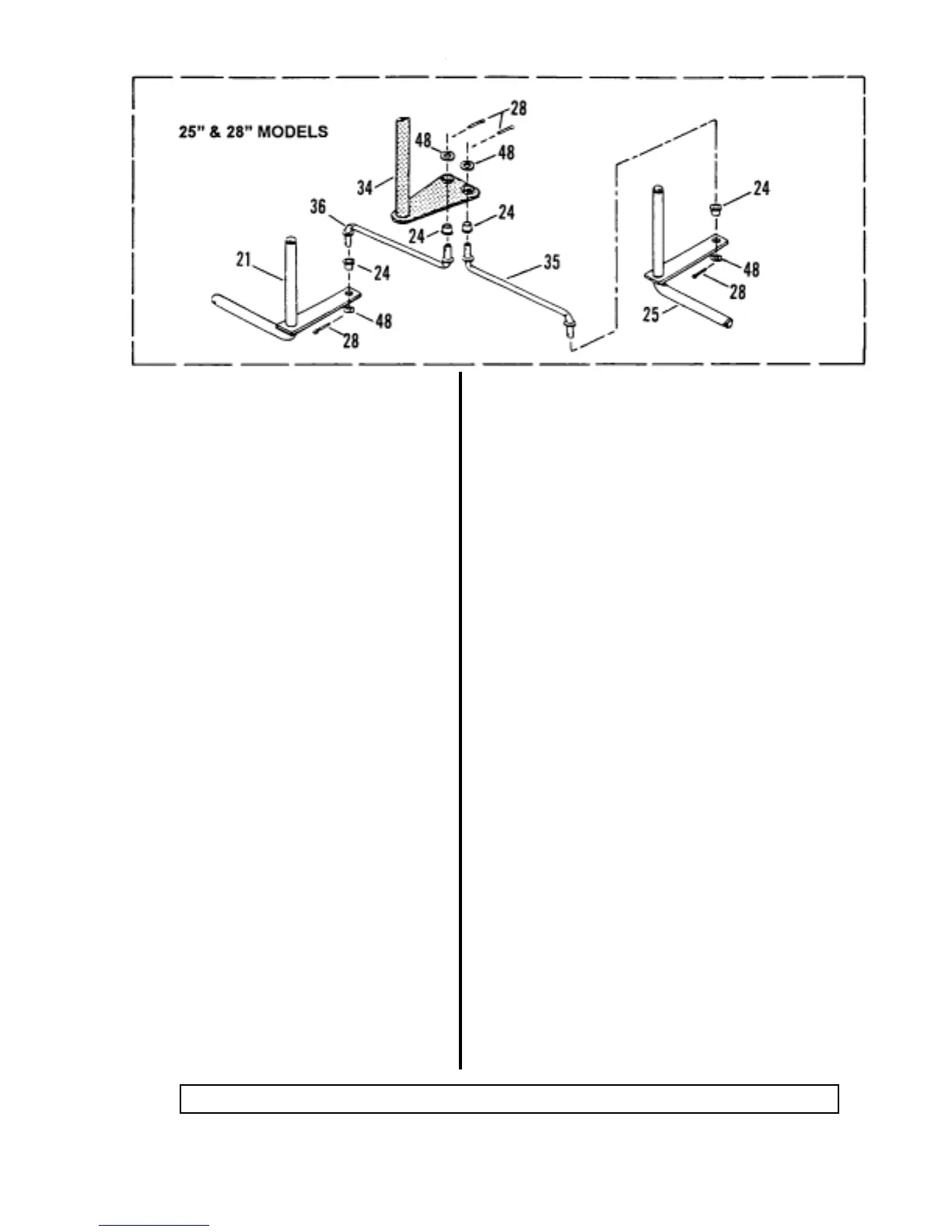

FRONT END STEERING
ITEM PART NO. DESCRIPTION
1 5-1941 ASSEMBLY, Steering
Wheel (Includes Item 2)
2 2-3781 LOGO, SNAPPER
3 1-3862* PIN, 1/4 x 1-1/2" Roll
4 3-3882 LEVER, Clutch/Brake
5 2-3666 SPRING
6 2-3655 GRIP, Lever
7 9-1017 SCREW, #8-32 x 3/8"
Cross Recess
8 9-1018 NUT, #8-32 Hex
9 4-1476 ARM, Clutch/Brake
10 2-2372 SPACER, Main Tube
11 1-6704 FASTENER, Panel
12 2-3667* COVER, Steering Shaft
(Foam)
13 2-3671* COVER
14 1-0935 WASHER, 3/4 Flat
15 1-9166 BUSHING, 3/4" Steering
Shaft
16 9-1515* COTTER-PIN, 3/16 x
1-1/2” (2)
17 4-1654 WELDMENT, Front Frame
(25" & 28" Models)
-- 4-1653 WELDMENT, Front Frame
(33" Models)
18 2-3660 PAD, Foot (Right Side)
(25" & 28" Models Shown)
-- 2-3663 PAD, Foot (Right Side)
(33" Model Shown)
-- 2-3659 PAD, Foot (Left Side) (25”
& 28" Models - Not Shown)
-- 2-3662 PAD, Foot (Left Side) (33”
Model - Not Shown)
19 1-0746 RING, 5/8” Ext. Retaining (2)
20 1-0986 BEARING, Nylon (5)
21 4-1688 PIN, Narrow King (Right
Side)
22 9-1297* NUT, 5/16-24 Hex (4)
ITEM PART NO. DESCRIPTION
23 9-1315* WASHER, 5/16 Split Lock (4)
24 1-3321 BUSHING, Nylon (4)
25 4-1687 PIN, Narrow King (Left Side)
26 4-1686 PIN, Wide King (Right Side)
27 4-1685 PIN, Wide King (Left Side)
28 9-1516 COTTER-PIN, 5/32 x 1" (2)
29 2-4935 TIE-ROD (33” Models) (2)
30 2-4735 PEDAL, Clutch/Brake
31 1-0739 RING, 5/8” External Retaining
32 1-2661 PAD, Clutch/Brake Pedal
33 2-8395 SPACER, Pivot
34 4-1381 SHAFT, Steering (Narrow
Front End)
35 2-4915 TIE-ROD, Left Side
(25" & 28" Models)
36 2-4916 TIE-ROD, Right Side
(25" & 28" Models)
37 2-8332 STUD, 3/8-24 x 5/8"
Shoulder
38 2-2881 SPACER (2)
39 9-1151 SCREW, 5/16-18 x 1-1/4"
Hex Washer Self-Tapping
40 2-2344 CABLE, Brake (Series 16) (shown)
-- 7-1909 CABLE, Brake (Ser. 18)
41 2-9913 CABLE, Clutch
42 3-4174 UNION, Cable
43 9-1495 BOLT, 1/4-20 x 3/4" Hex
Flange Lock
44 9-0854 NUT, 3/8-24 Hex Nyloc
45 9-0372* NUT, 1/4-20 Hex Center Lock
46 4-1553 SHAFT, Steering (Wide
Front End)
47 1-2867 HAIRPIN, 1/8 x 2-9/16”
48 9-1514 WASHER, 3/8 Flat
49 9-1198 SCREW, 3/8-16 x 5/8”
Self-Tapping
50 9-0517 WASHER, 3/8 Flat
51 2-8774 SPACER, .39 x .625 x .19
R. E. RIDER (EURO) SERIES 16 & 18 MANUAL No. 06103
*NOTE: These items are in 6-1792 Hardware Bag (see page 43 for complete list of hardware bag components).
