Section VII - OVERHAUL & REPAIR (auger housing)
7.1 AUGER HOUSING

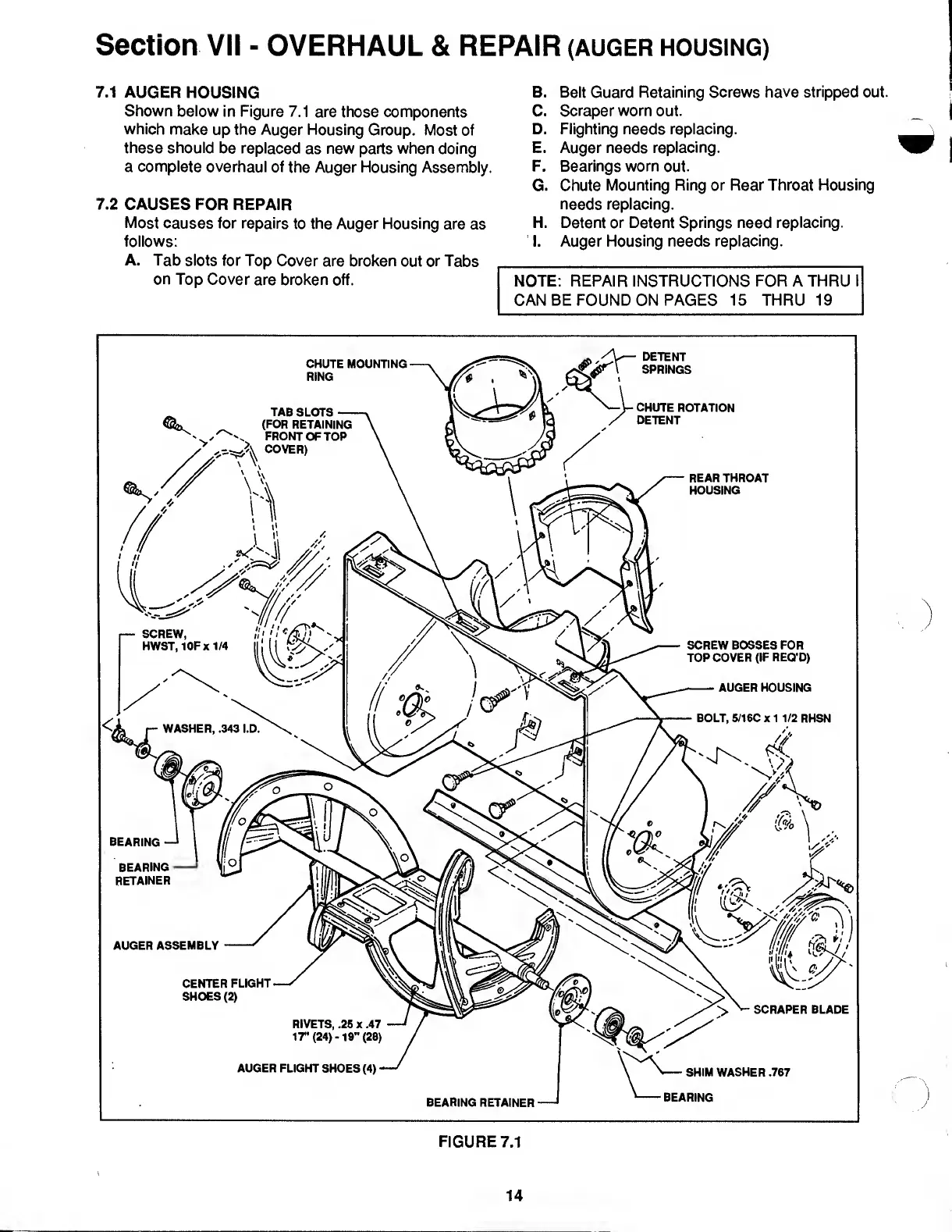

Shown below in Figure 7.1 are those components
which make up the Auger Housing Group. Most of
these should be replaced as new parts when doing
a complete overhaul of the Auger Housing Assembly.
7.2 CAUSES FOR REPAIR
Most causes for repairs to the Auger Housing are as
follows:
A. T ab slots for Top Cover are broken out or Tabs
on Top Cover are broken off.
B. Belt Guard Retaining Screws have stripped out.
C. Scraper worn out.
D. Flighting needs replacing.
E. Auger needs replacing.
F. Bearings worn out.
G. Chute Mounting Ring or Rear Throat Housing
needs replacing.
H. Detent or Detent Springs need replacing.
I. Auger Housing needs replacing.
NOTE: REPAIR INSTRUCTIONS FOR A THRU I
CAN BE FOUND ON PAGES 15 THRU 19
CHUTE MOUNTING-
RING
TAB SLOTS-
(FOR RETAINING
FRONT OF TOP
COVER)
1 1 '
1 I'
.1 il
SCREW,
HW8T,10Fx1/4 I (
WASHER, .343 I.D.
BEARING -
BEARING
RETAINER
AUGER ASSEMBLY
DETENT
SPRINGS
CHUTE ROTATION
DETENT
REAR THROAT
HOUSING
' ' i*-) 1 ^
SCREW BOSSES FOR
TOP COVER (IF REQ'D)
--AUGER HOUSING
— BOLT, 5/16C X1 1/2 RHSN
m ^
9 ((%
CENTER FLIGHT-
SHOES (2)
RIVETS, .25 X .47
ir (24) -19" (28)
AUGER FLIGHT SHOES (4) -
BEARING RETAINER
> SCRAPER BLADE
SHIM WASHER .767
BEARING
FIGURE 7.1
