MASTERYS IP+

40-60 kVA 3/1

ENGLISH

IOMMASIPXX07-GB 02

MIMIC PANEL

6.1 MIMIC PANEL.

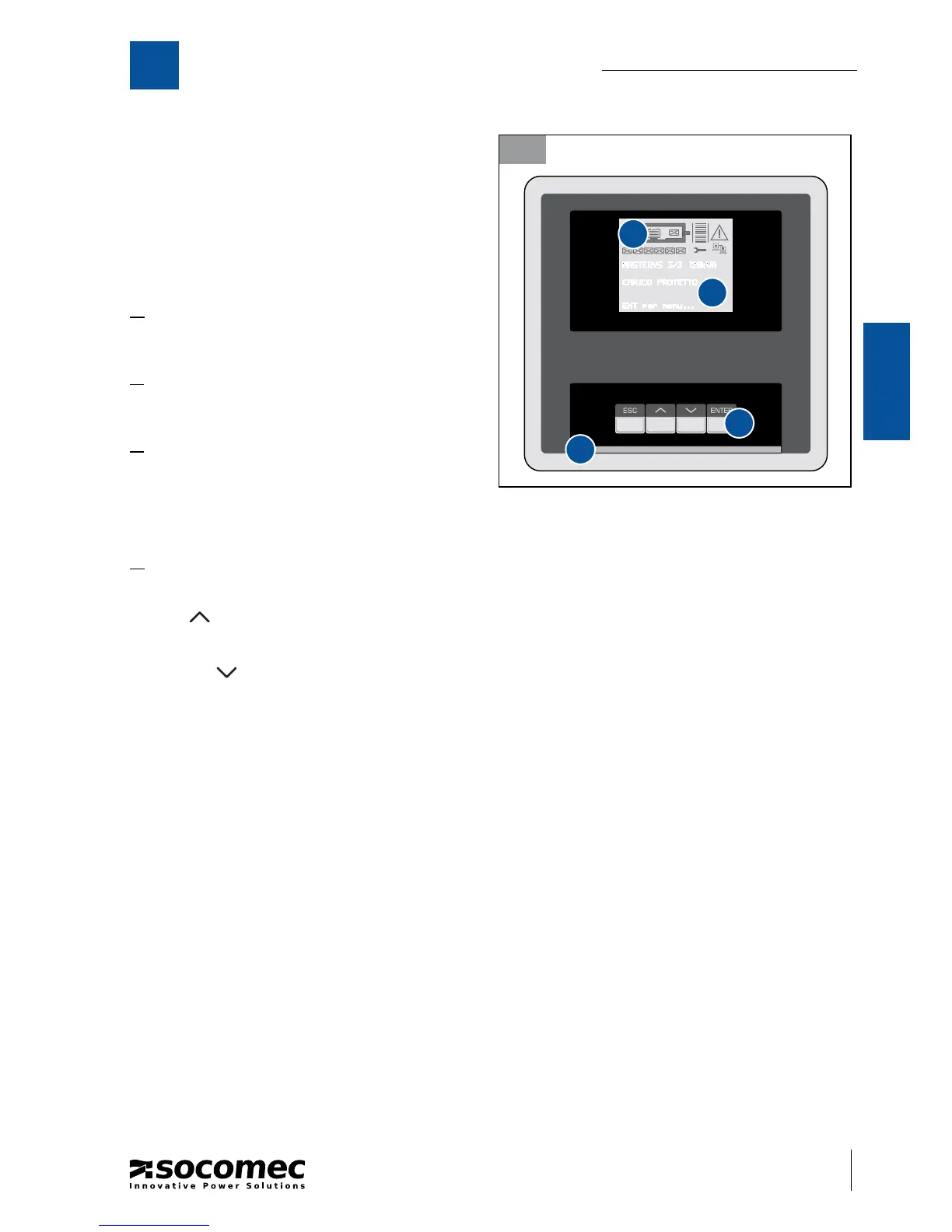

The LCD mimic panel ( gure 6.1-1) on the door of

the UPS provides all the information relating to op-

erating status, electrical measurements, access to

controls and con guration parameters.

The information is grouped into four sections:

A. ideograms that identify the subsets and the en-

ergy  ow;

B. multicoloured luminous bar that identi es the

condition of the power supply to the load;

C. alphanumeric information that uses a menu lay-

out to provide details on any alarms that may

occur and on the measurements, controls and

parameters.

D. use of the buttons:

· ESC: exit from the current menu/parameter/action;

· UP

: scrolls the available menus/values upwards. It increases the value each time it is pressed when

changing a parameter;

· DOWN

: scrolls the available menus/values downwards. It decreases the value each time it is pressed

when changing a parameter;

· ENTER: enters the menu displayed on the screen to con rm the choice/changes made.

6.1-1
