socomec MASTERYS IP+ - INSTALLATION PROCEDURES AND INSTRUCTIONS

MASTERYS IP+
40-60 kVA 3/1
ITALIANOENGLISH
14 IOMMASIPXX07-GB 02
UNPACKING AND INSTALLATION
OF THE UNIT
3

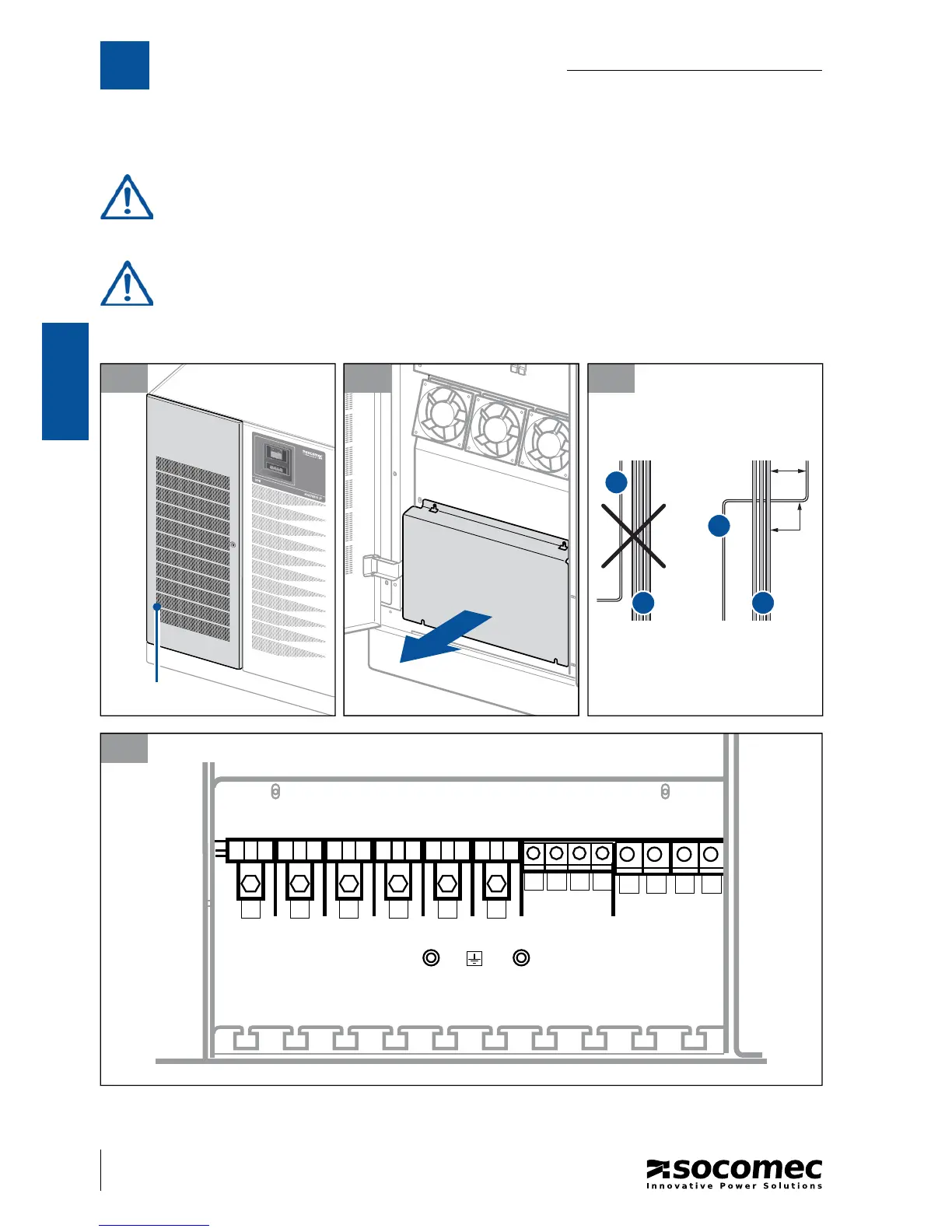

3.6 INSTALLATION PROCEDURES AND INSTRUCTIONS.
WARNING!
Before carrying out work on the terminal board or on UPS internal parts, ensure that the UPS
is switched o , remove the power supply, open the external battery cabinet disconnectors,
isolate the system and wait 5 minutes.
For the power connections to the connecting bars use cables with tinned eyelets only.
3.6-1
3.6-4
L11 N1 L14 N4 L12 N2
AUX MAINS
SUPPLY
OUT TRANSFORMER IN TRANSFORMER
MAINS SUPPLY
L1 L2 L3 N
EXT. BATTERY
+B2 -B2 -B1 +B1
OPEN
OPEN
For systems installed on raised  oor.
3.6-3
20 cm
90°
A A
B
B
3.6-2
A. power cables
B. control cables
Power connections.
