socomec MASTERYS IP+ User Manual

MASTERYS IP+
40-60 kVA 3/1
ENGLISH
IOMMASIPXX07-GB 02 55

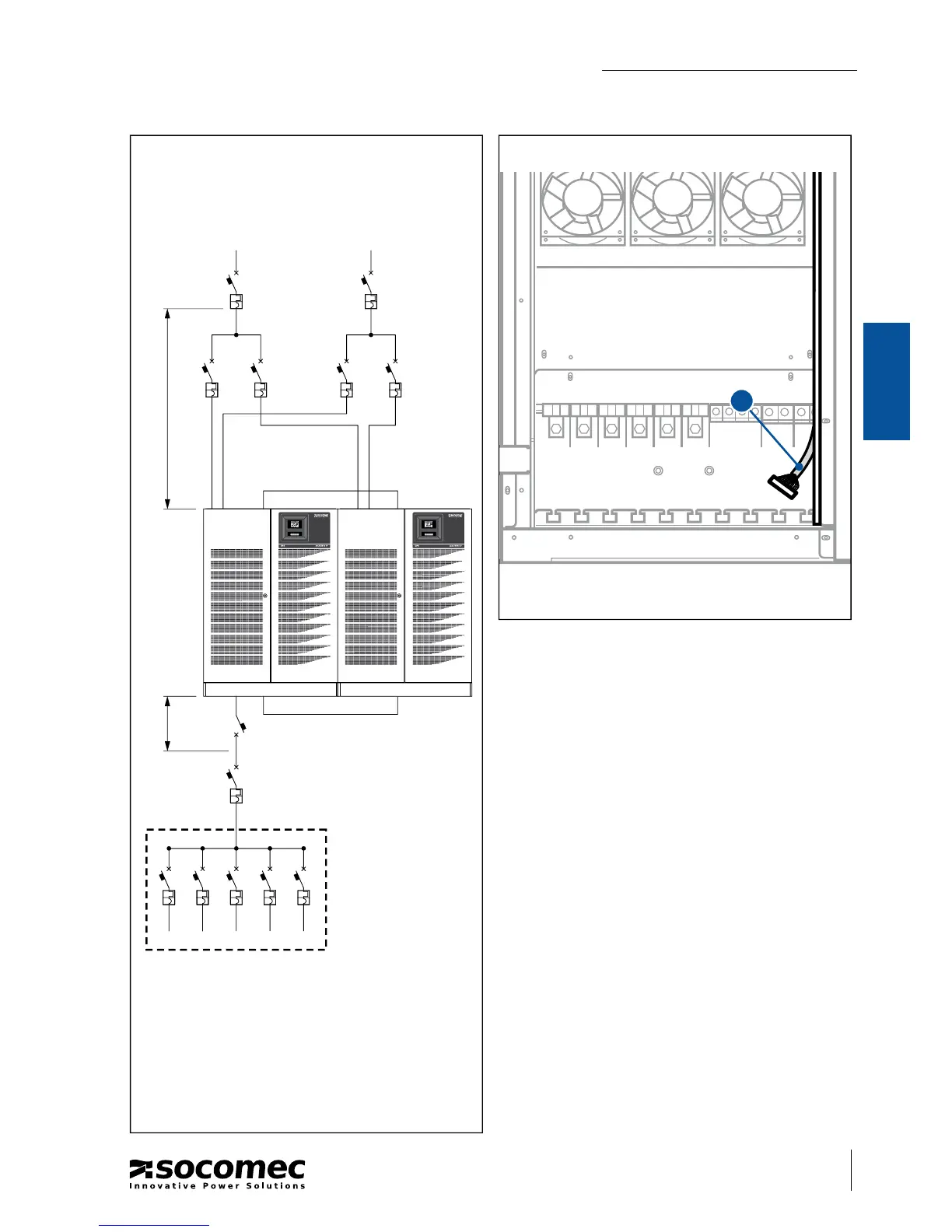

PARALLEL 1+1 REDUNDANT CONFIGURATION
MAINS AUX MAINS
7.5 m max 25 m max
RECOMMENDED PARALLEL CONFIGURATION.
❶❶
❸❸❸❸
❷
❷
❹
❹
❺
❺
❻
❻
❼
❼
❾
❾
❽
❽
CONTROL CONNECTIONS
A
Legend.
A “Parallel bus” cable; leave approx. a 20 cm cable length
at the exit of the cable run.
Legend.
1 Main di erential
magneto-thermal switch.
2 “Parallel bus” cable.
3 Magneto-thermal switch.
4 Output switch.
5 System shutdown switch.
6 Distribution.
7 UPS with transformer.
8 UPS without transformer
9 Power connections
(refer to page 54)
