10.3.6. Connection
Connection of the Lithium-ion Battery Pack with its Corresponding UPS
1. Connect one end of the provided battery cable to the external battery
connector on the UPS, and connect the other end to the external battery
connector ( )
on the lithium-ion battery pack. Make
sure that the positive cable (+) connects to the positive pole (+) and the negative
cable (-) connects to the negative pole (-). See step ❶ in Figure 10-26.
2. Use the provided RS-485 cable to connect the UPS’s RJ45 (RS-485) port and the
RJ45 (RS-485) port of the lithium-ion battery pack. Please see step ❷ in Figure 10-26.

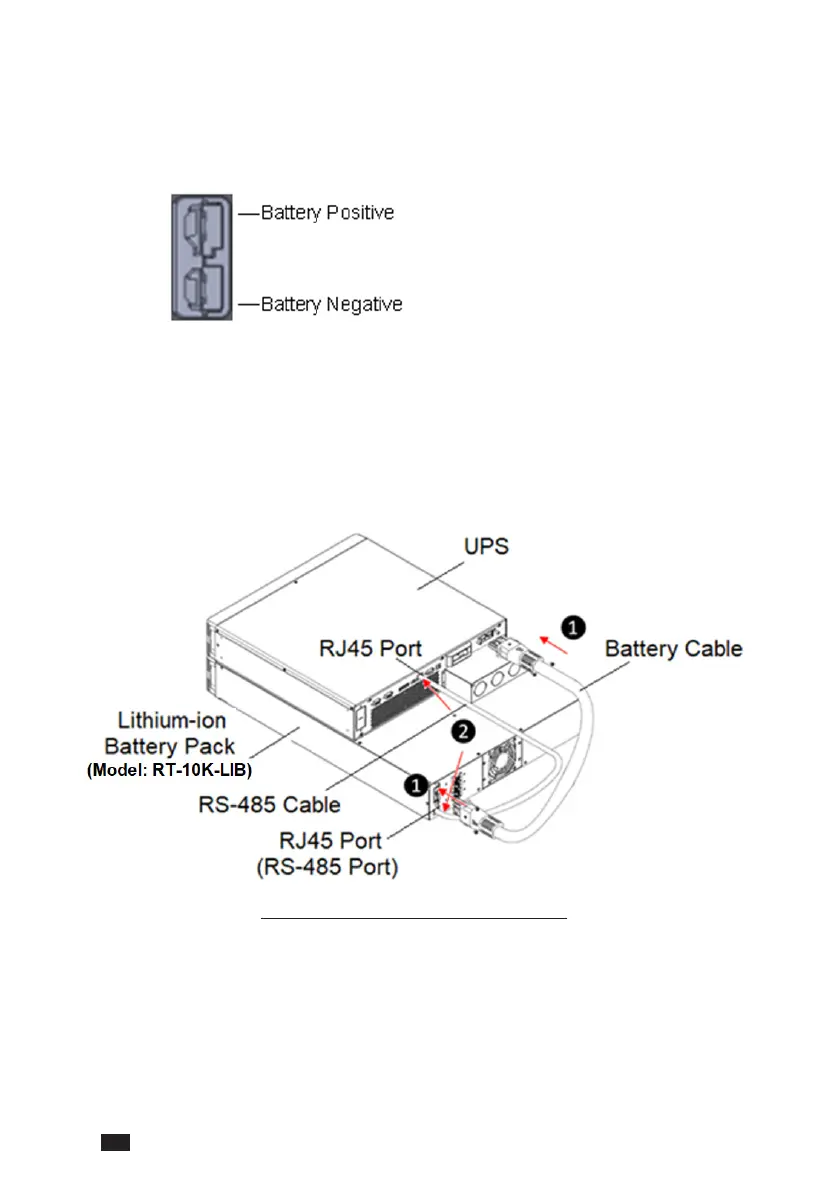

(Figure 10-26: Connection LIB with the UPS)
